C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 667 –
PARAMETERS
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Interface – Port or trunk identifier.
◆ VLAN – VLAN identifier. (Range: 1-4094)
◆ Group IPv6 Address – Defines a multicast service sent to the selected
port. Multicast groups must be assigned from the MVR6 group range
configured on the Configure General page.
WEB INTERFACE
To assign a static MVR6 group to an interface:
1. Click Multicast, MVR6.
2. Select Configure Static Group Member from the Step list.
3. Select Add from the Action list.
4. Select an MVR6 domain.
5. Select a VLAN and interface to receive the multicast stream, and then
enter the multicast group address.
6. Click Apply.

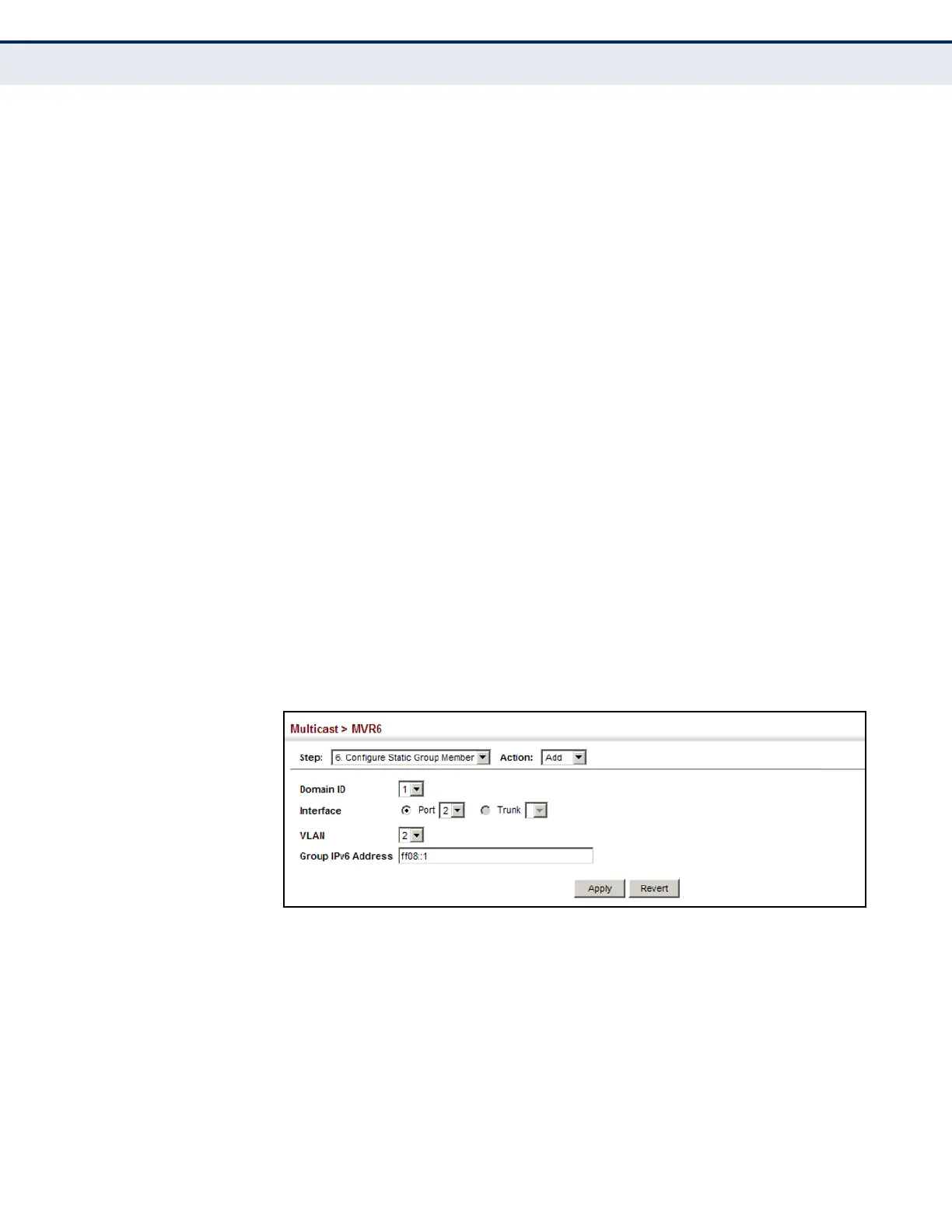

Figure 404: Assigning Static MVR6 Groups to a Port
To show the static MVR6 groups assigned to an interface:
1. Click Multicast, MVR6.
2. Select Configure Static Group Member from the Step list.
3. Select Show from the Action list.
4. Select an MVR6 domain.
5. Select the port or trunk for which to display this information.
