To add color-coding using the Colorize menu:
1. Right-click in the desired Overview and select Coloring | Add Color.
The

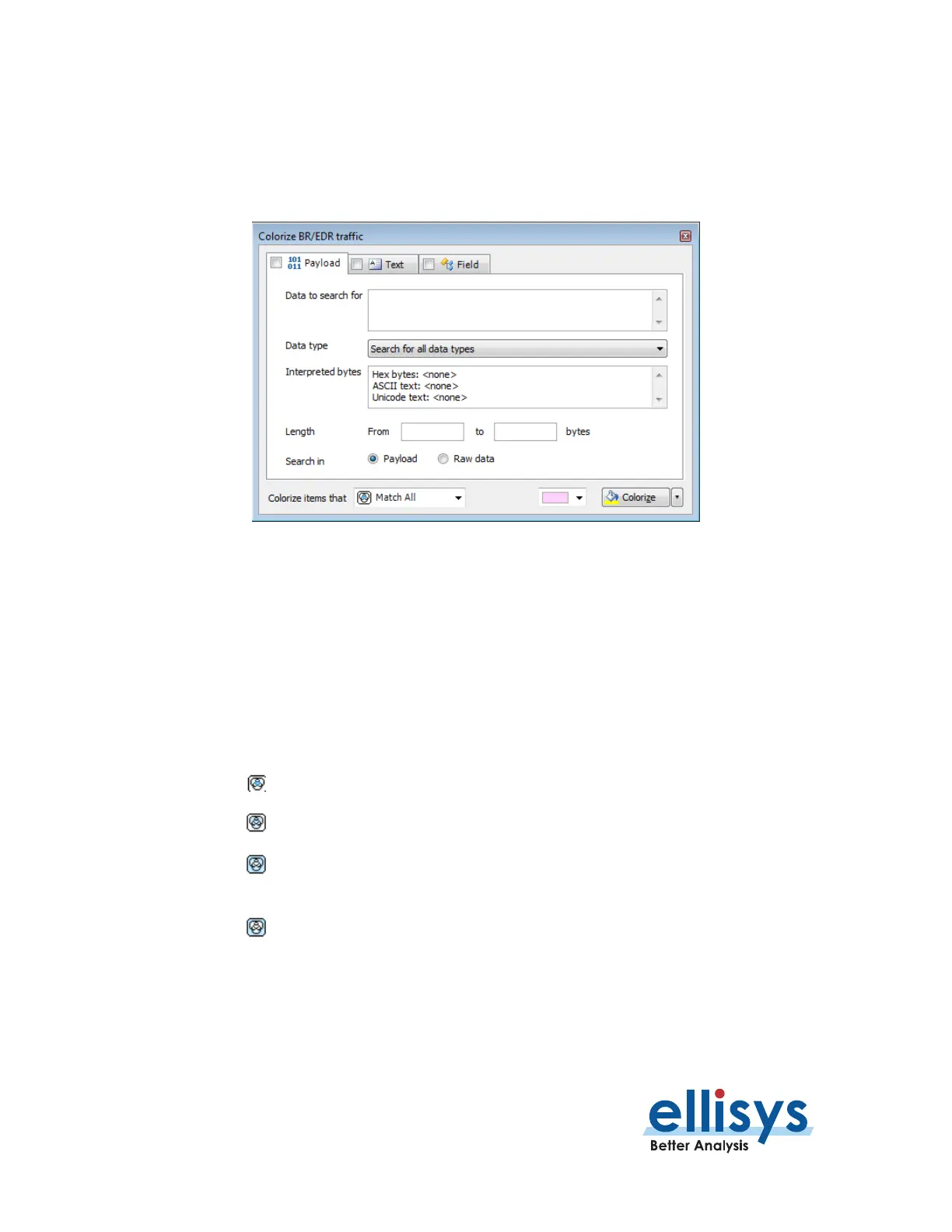

Colorize dialog appears:
To colorize events by payload content:
1. Select the Payload tab.
2. Enter Data to search for and/or a payload Length range.
3. Select Data Type as needed.
4. Select Search in Payload or Search in Raw Data to highlight matching packets.
5. Select the desired match type in the Colorize items that drop-down menu.
 Match All – Finds items that match all selected criteria.
 Match Any – Finds items that match any of the criteria.
 Don’t Match All – Finds items that do not match all the selected criteria (opposite
of
Match All).
 Don’t Match Any – Finds items that do not match any of the selected criteria
(opposite of Match Any).
6. Select the desired color and click on Colorize.
Events matching are colorized in the Overview.
