Bluetooth Analyzers
Page 16 of 264 | Introduction
1.5 Bluetooth Vanguard

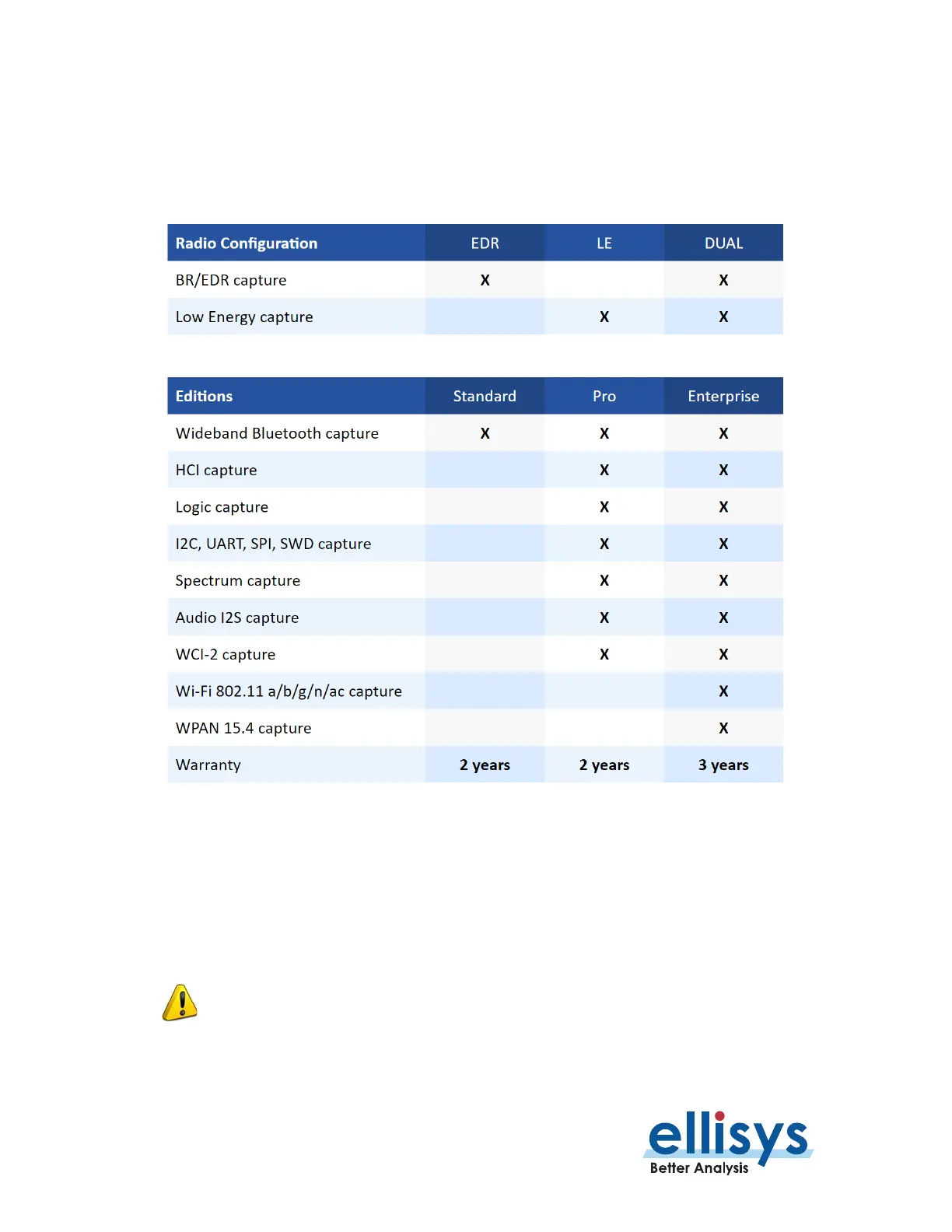

The Bluetooth Vanguard is an all-in-one analyzer supporting concurrent capture of Bluetooth Basic
Rate/Enhanced Data Rate (BR/EDR), Bluetooth Low Energy (BLE), Wi-Fi, WPAN (IEEE 802.15.4), and other
features as shown below.
Lithium Ion Battery
The Bluetooth Vanguard unit has an interior, multi-cell, lithium ion battery installed. It is not user accessible.
The battery is charged by the supplied DC power supply when it is attached to the analyzer. A combination
indicator/push-button is located on the back panel of the unit, which provide battery status and on/off control.
Cells are less than 20 Wh and the battery itself is equal to 60 Wh. Run-time for the battery is between 1.5 hours
and 2.5 hours.
Rechargeable lithium ion batteries are potentially hazardous. These can present
a fire hazard and/or emit toxic fumes if they are damaged, used incorrectly,
disassembled by the user, or defective in some way.
