Analyzer User Manual
Capturing Traffic | Page 79 of 264
7.2 Basic Power and Control Setups
The general setup used for connecting and powering the analyzer varies by the model used (Tracker, Explorer,
or Vanguard). General connectivity and power requirements for each model are discussed below.
Explorer Setup
The Explorer requires the supplied DC Power Supply. Explorer connects to the Control Computer using a
supplied USB 2.0 Standard-A to Standard-B cable.

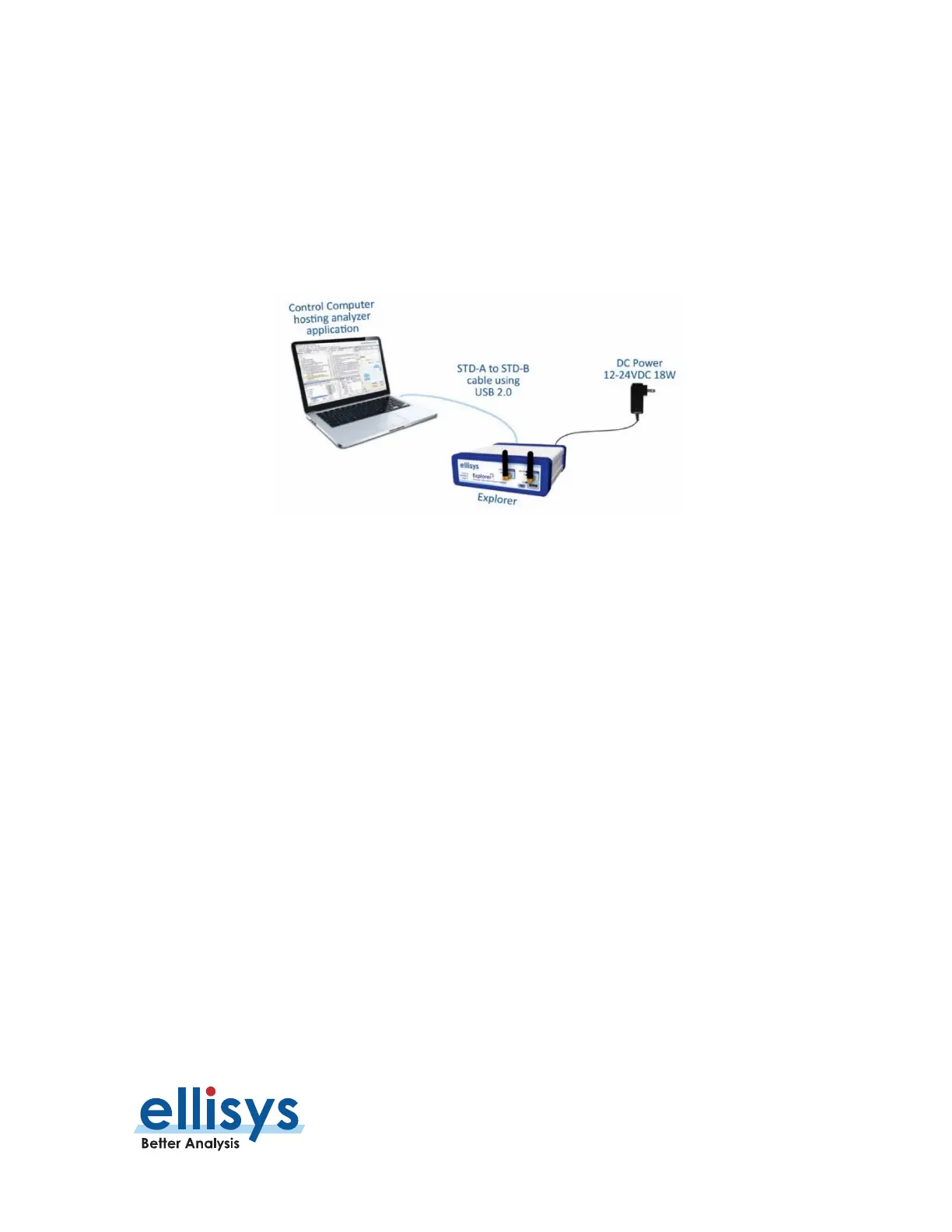

Figure 9 Basic Setup for Explorer (USB and DC PWR)
