Ellisys Vanguard User Manual

Analyzer User Manual
Instant Timing Pane | Page 159 of 264

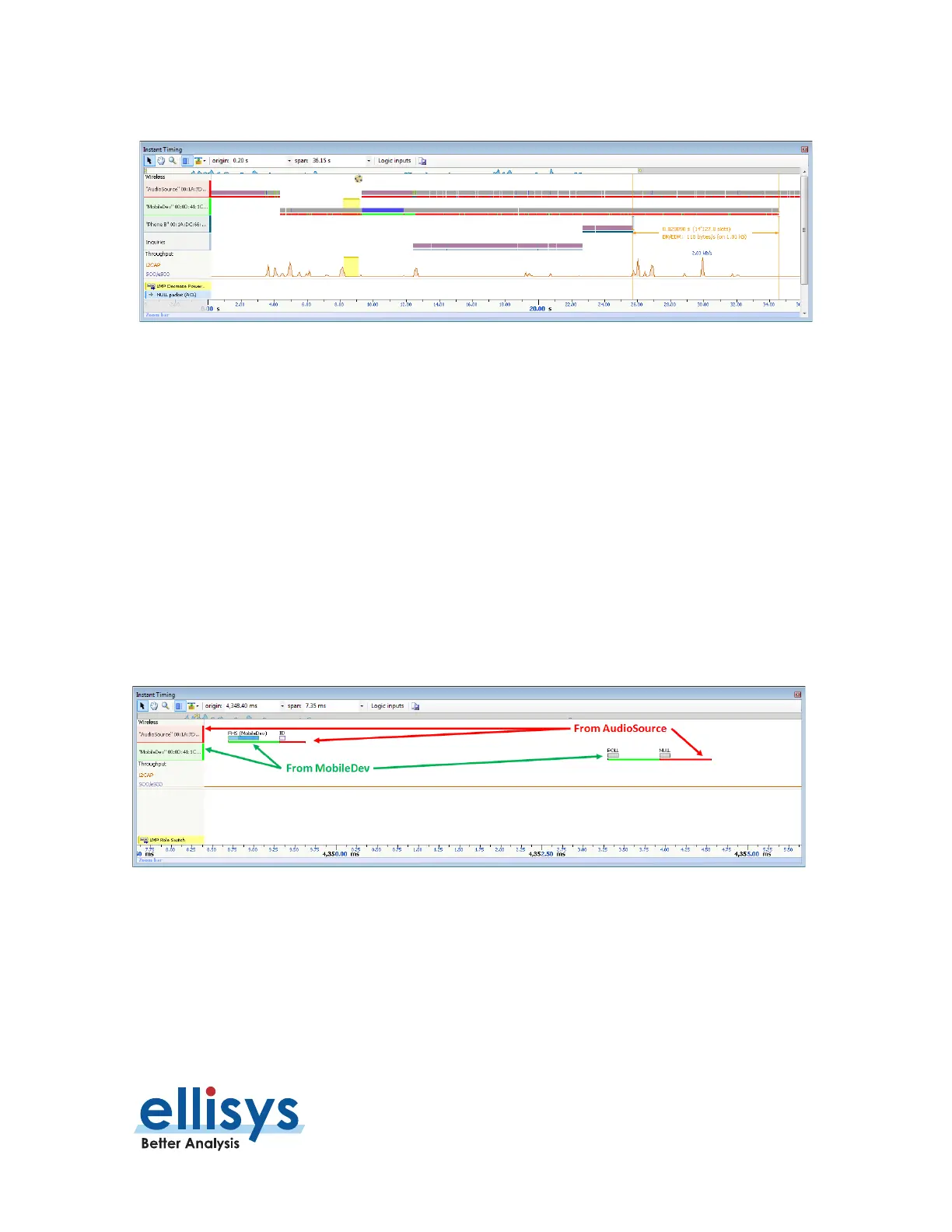

The Instant Timing pane appears:
10.1 Device and Packet Color-Coding
Bluetooth packets shown in the Instant Timing pane are color-coded based on which device is sending the
packet. Each device (and its associated packets) is assigned a unique color. This color can be user-defined if
desired (see 8.4 Device Traffic Filter).
Wi-Fi packets are also color-coded and may or may not be shown on multiple lines, depending on the user’s
selections in the Display dialog located on the Instant Timing toolbar.
Master or central devices are shown at the left of the
Instant Timing display and are provided a background
color which is also represented on packets shown in the body of the
Instant Timing pane. Slave or peripheral
devices along a given master’s line will have their own assigned color.
This color-coding is consistent throughout other areas of the analyzer software, including the
Devices window
and the
Instant Piconet pane.
10.2 User Controls and Toolbar
The Instant Timing pane provides various user controls for navigation. The table below lists the Instant Timing
toolbar buttons and their actions:
