Ellisys Vanguard User Manual

Analyzer User Manual
Details Pane | Page 239 of 264

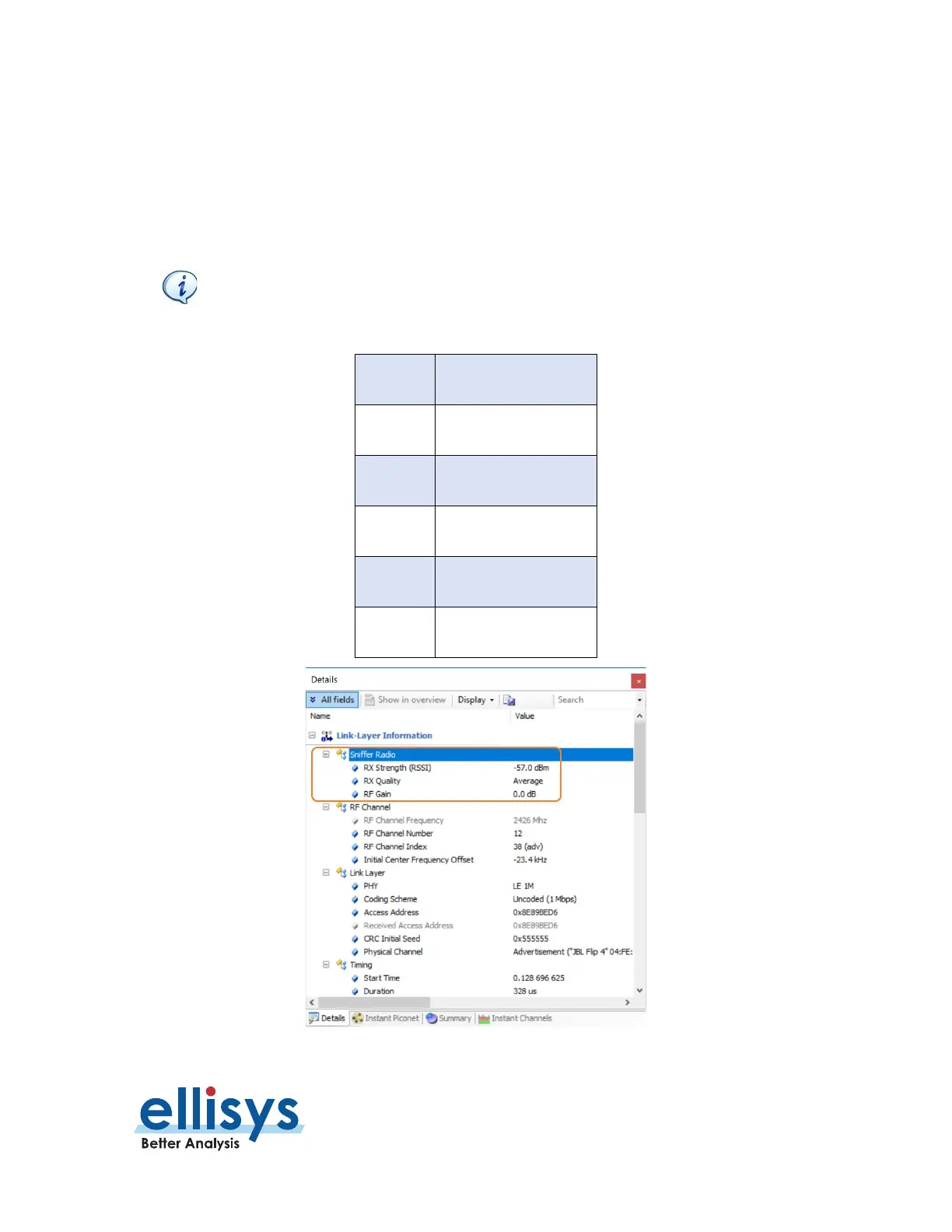

17.3 RSSI Strength Characterizations
In the Details pane, a categorical characterization is provided to advise the user of RSSI strength on a selected
Bluetooth packet (BLE or BR/EDR). This measurement is made at the antenna on which the signal was received.
These characterizations are in the
Sniffer Radio section of the Details pane. The sub-fields are RX Strength
(RSSI)
, RX Quality , and RF Gain (which is set by the user in Recording Options | Wireless menu).
Note that the
RF Gain setting (Recording Options | Wireless
), will offset the
transition values of one category to/from the next/previous by the amount of the
RF Gain
Setting. The chart below assumes an RF Gain setting of 0dB.
Category Values
Too Low -70.5 dBm and weaker
Low -60.5 dBm to -70 dBm
Average -35.5 dBm to -60 dBm
High -20.5 dBm to – 35 dBm
Too High -20 dBm and stronger
