Ellisys Vanguard User Manual

Bluetooth Analyzers
Page 240 of 264 | Raw Data Pane
18. Raw Data Pane
The Raw Data pane provides a low-level data view of items selected in the Overview and includes various
format and copy options. The
Raw Data pane is linked to the Details pane, as fields selected in the Details
pane are highlighted in the Raw Data pane, and therefore it is indirectly linked to the selection in the active
Overview. Fields selected in the
Details pane are highlighted in the Raw Data pane. The Raw Data pane also
includes a search mechanism.
To access the Raw Data pane:
1. Select View | Raw Data from the menu.
The

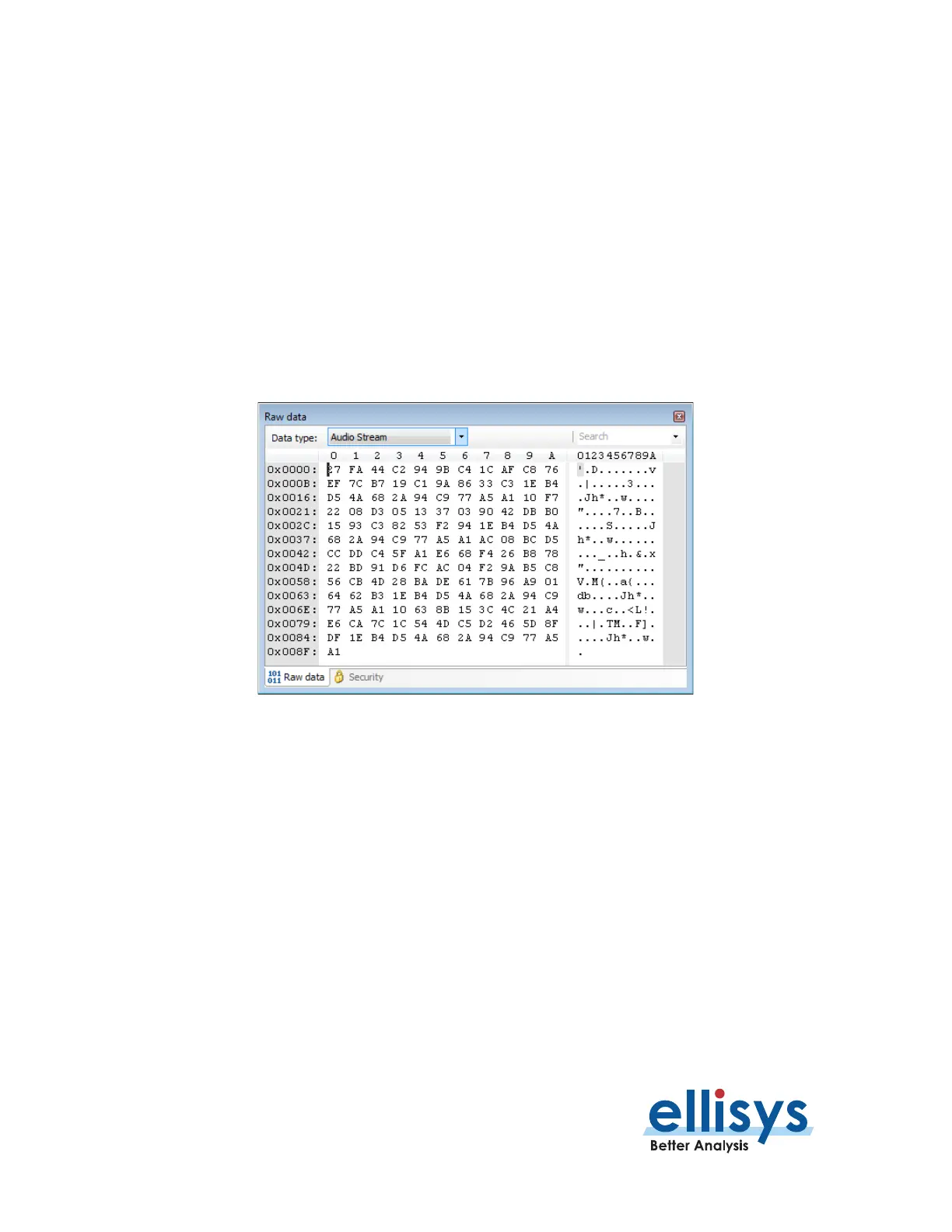

Raw Data pane appears, showing data from the item selected in the Overview:
18.1 Synchronization to Details Pane and Overviews
To highlight Details pane fields in the Raw Data pane:
1. Select the desired item in the Overview.
The
Details pane displays all fields applicable to the item selected.
2. Select the desired field from the
Details pane.
The selected field is highlighted in the
Raw Data pane.
18.2 Searching the Raw Data Pane
To search the Raw Data pane:
1. Enter the desired text or hex value string in the Search box.
