Bluetooth Analyzers
Page 80 of 264 | Capturing Traffic
Tracker Setup
The Tracker does not use an external DC “brick” power supply and can be both powered and controlled over
the supplied USB STD-A to Micro-B cable in most cases.
If the USB port on the Control Computer is not enough to power the unit, the analyzer application will post a
message to alert the user to add the auxiliary power cable (not shown in illustration below).
Most modern computers supply enough power over USB to operate the unit. The auxiliary power cable (USB
Standard-A to plug) is provided to augment the power provided over the USB Standard-A to Micro-B cable. The
auxiliary power cable attaches from any Standard-A port on the Control Computer to a jack adjacent to the
Control Port on the Tracker.

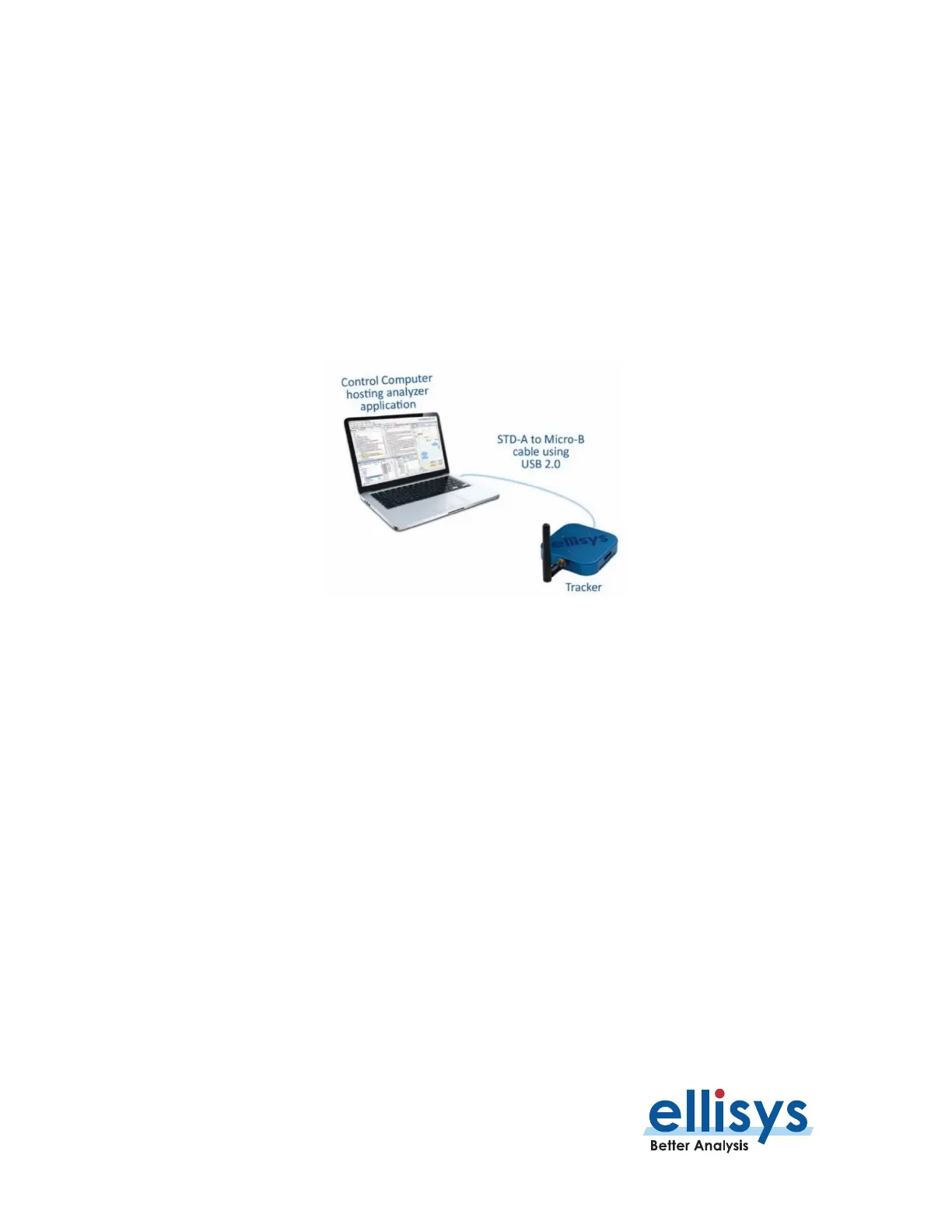

Figure 10 Basic Setup for Tracker (USB for Control and Power)
