Instant Piconet Pane | Page 229 of 264
Represents an
inquiry. The inquirer device is represented with
blue outline,
like masters, while
responding devices are represented with black outline.
Represents a
paging. The pager device is represented with blue
outline, like
masters, while the paged device is represented with black outline.
And here are a few more details about other visual elements:

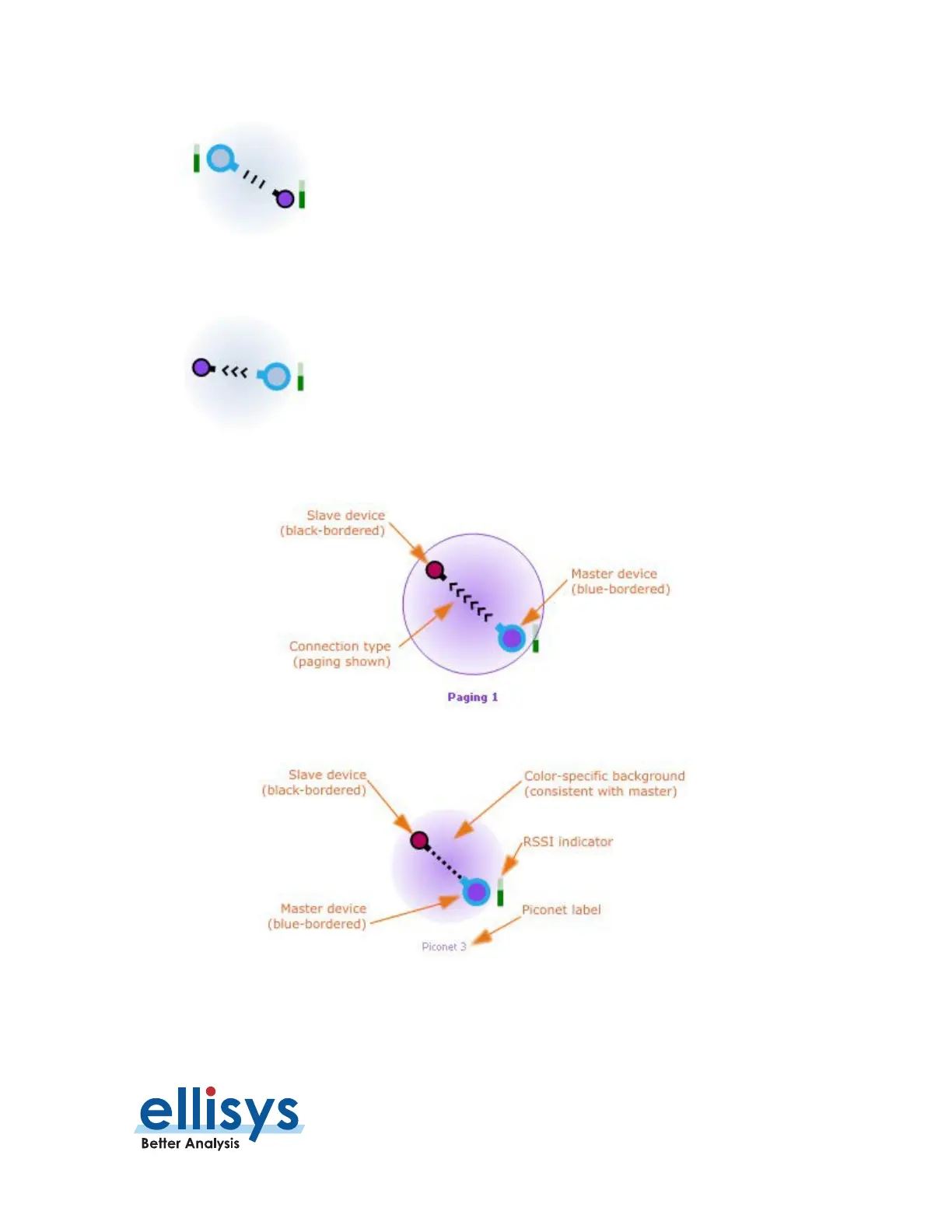

Simple Piconet, Showing a Paging
Simple Piconet, Showing a still connection
