Ellisys Vanguard User Manual

Analyzer User Manual
Vanguard Technical Characteristics | Page 261 of 264

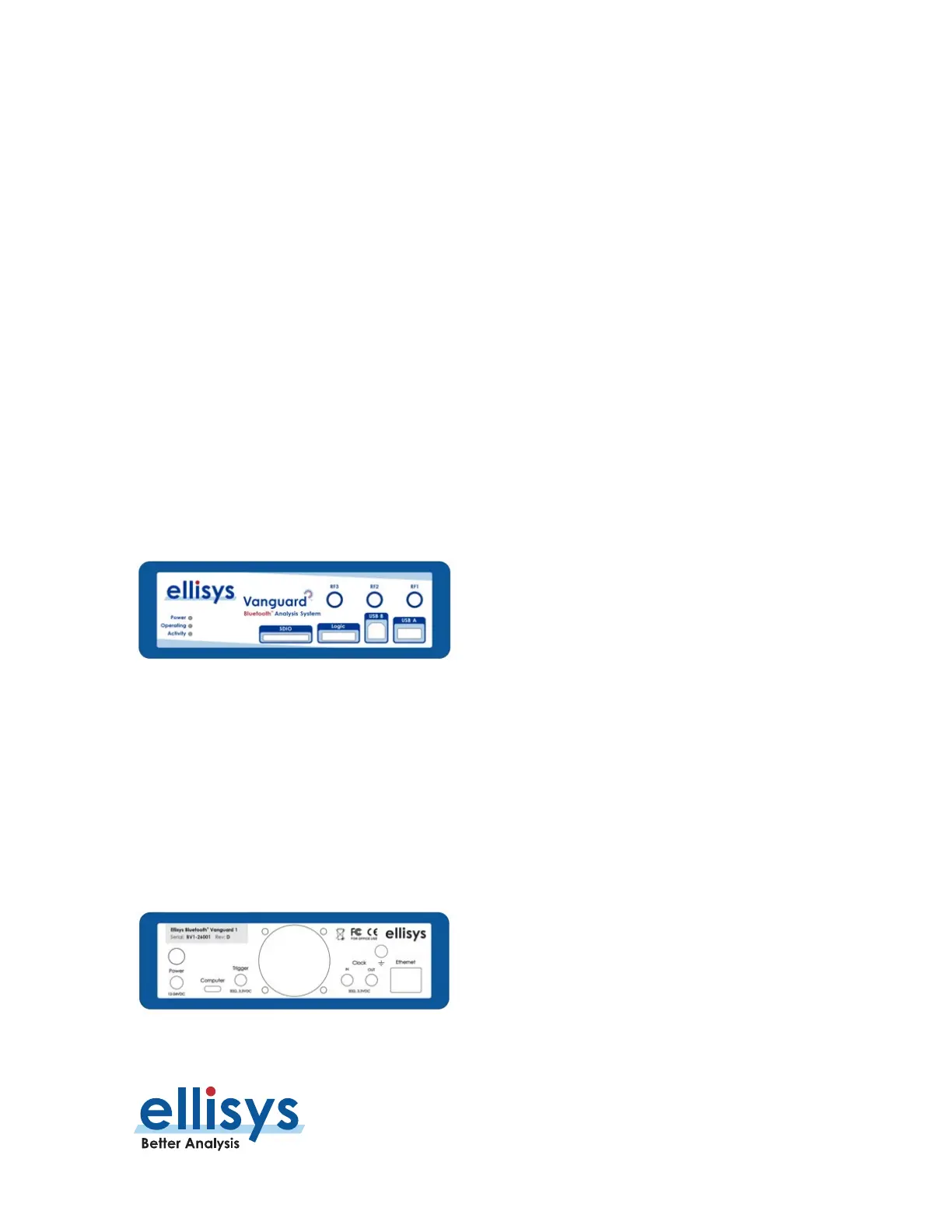

Front-Panel Indicators
 Power: unit powered on
 Operating: unit performing requested
task
 Activity: blinks when wireless or wired
activity detected
Front-Panel Connectors
 RF (x3): Shared between Bluetooth, Wi-Fi
and WPAN
 USB HCI: USB 2.0 Standard-A and
Standard-B
 Logic: supports UART / SPI HCI, WCI-2,
generic I2C / UART / SPI / SWD and logic
analysis
 SDIO: Optional, for external trace storage
and unit recovery
Rear-Panel Connectors
 Computer: USB 3.1 Gen 1 Type-C
 Ethernet: 1GbE, PoE+
 Power: 12-24 VDC
 Trigger: SMA in and out, 50 Ω, 3.3 VDC
(not implemented)
 Clock IN: SMA, 50 Ω, 3.3VDC, 10 MHz
 Clock OUT: SMA, 50 Ω, 3.3VDC, 10 MHz
 Earth: Optional, to ground the unit
Power Inputs
 DC input (12-24 V)
 USB Type-C Power Delivery
 Power-over-Ethernet (PoE+)
 Internal Battery
Power Adapter
 Input: 100-240 VAC
 Output: 24 VDC
 Power: 40 W
 Plug: 5.5 x 2.1 x 12 mm barrel straight
 Safety: CB, TUV, UL, CCC, PSE
 EMI: CE, FCC, VCCI, RCM
Battery
 Type: Lithium Ion
 Assembly: Internal, not user accessible
 Operating time: 1.5 to 2.5 hours
 Cell: < 20 Wh
 Battery: 60 Wh
Enclosure
 174 x 111 x 58 mm (6.9 x 4.4 x 2.3'')
 1.5 kg (3.3 lbs.)
Hardware Upgrade
 The Ellisys Rainbow™ engine is
automatically updated with each
software release (no user intervention
required)
Maintenance and Licensing
 Free lifetime software updates – no
maintenance fees
 Free full-featured viewer software –
easily share annotated traces between
