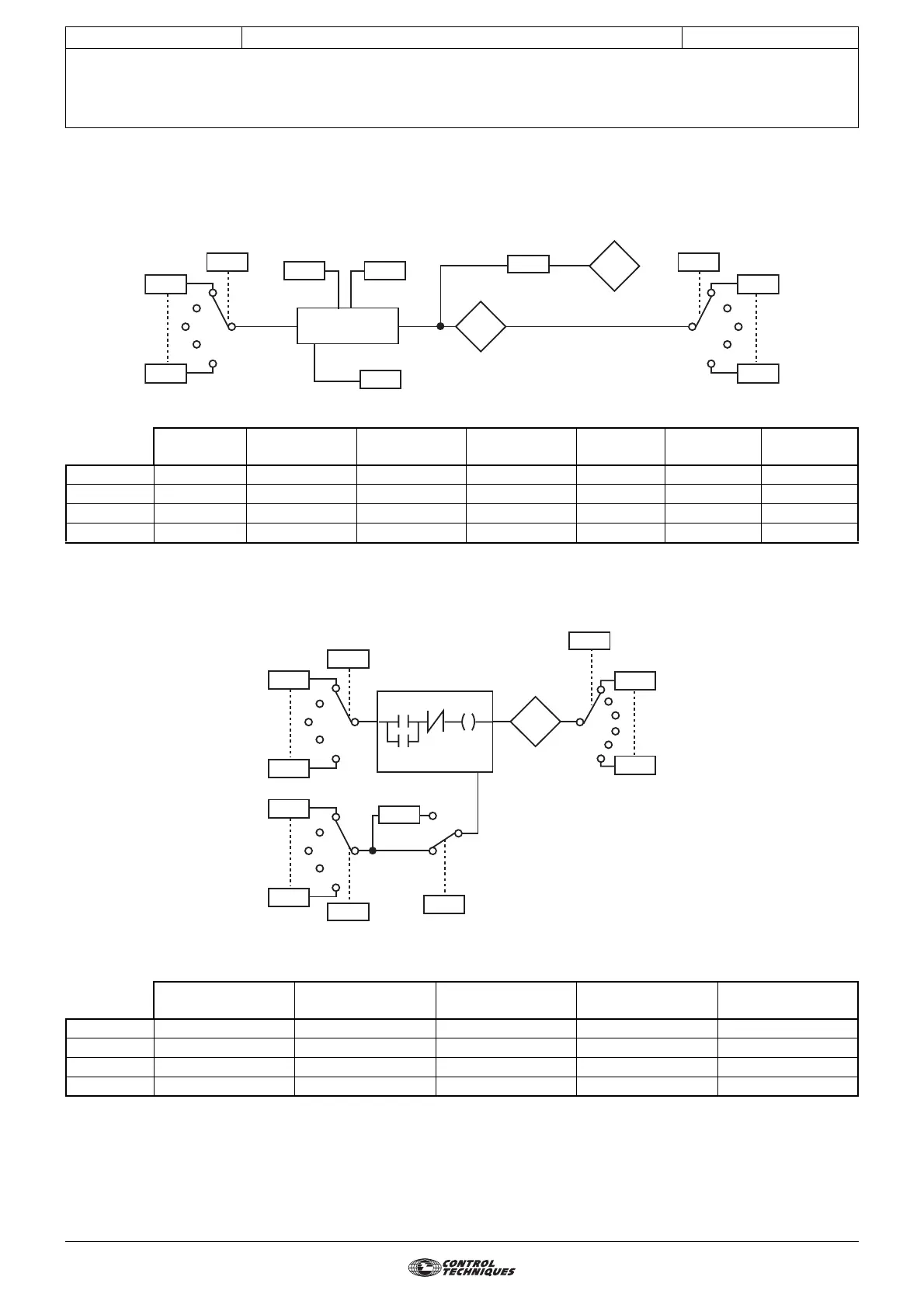

18.2 - Menu 16 diagrams
18.2.1 - Timer relays
18.2.2 - Latching relays
Source
Timer type
selection
Time delay Unit of time Output state
Inverted
output state
Destination
Timer 1 16.02 16.03 16.05 16.04 16.01 16.10 16.09
Timer 2 16.12 16.13 16.15 16.14 16.11 16.20 16.19
Timer 3 16.22 16.23 16.25 16.24 16.21 16.30 16.29
Timer 4 16.32 16.33 16.35 16.34 16.31 16.40 16.39
ON source OFF source
OFF source
inversion
Output state Output destination
LR 1 16.42 16.43 16.44 16.41 16.49
LR 2 16.52 16.53 16.54 16.51 16.59
LR 3 16.62 16.63 16.64 16.61 16.69
LR 4 16.72 16.73 16.74 16.71 16.79
Output
state
Source Destination
Timer
relay type
Unit of
time
Timer relay value
0 : T ON
1 : T OFF
X - 1
Inverted
output state
16.x1
16.x5
16.x2 16.x9
16.x4 16.x3
16.x0
Output
state
Output
destination
ON source
OFF source
OFF source
invert
ON
M
M
OFF
1
0
X - 1
16.x1
16.x2
16.x9
16.x3
16.x4
