35
ADVANCED USER GUIDE
Commander SX
IP66/Nema 4X variable speed drive
MENU 2: RAMPS
CONTROL TECHNIQUES
3854 en - 03.2008 / b

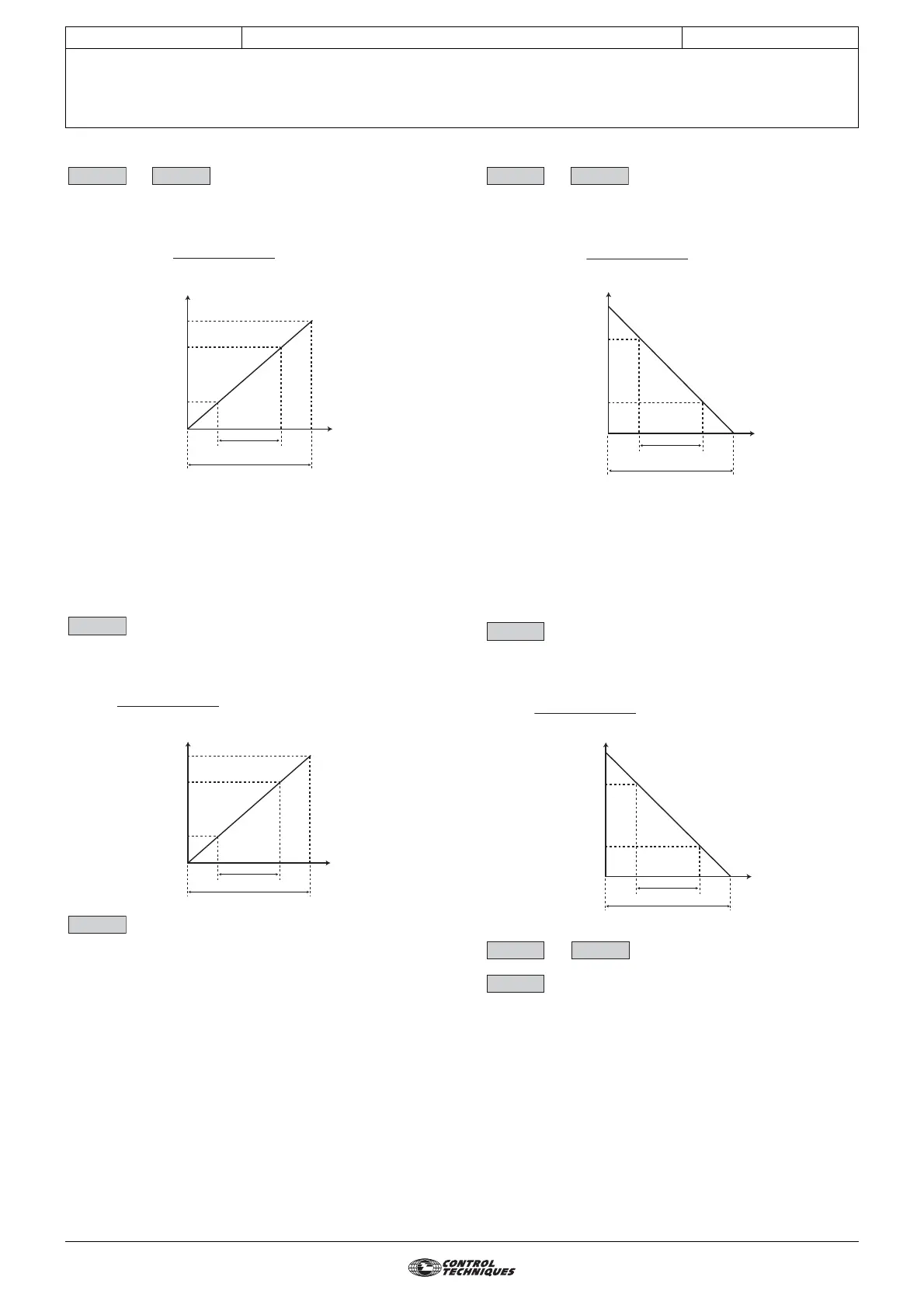

to : Acceleration rates 1 to 8
Adjustment range :0.1 to 600.0 s/1000 rpm
Factory setting :3 s/1000 rpm
Sets the time for acceleration from 0 to 1000 rpm.
2.11 to 2.18 =
2.11: Acceleration rate 1 (main ramp in factory settings)
2.12: Acceleration rate 2
2.13: Acceleration rate 3
2.14: Acceleration rate 4
2.15: Acceleration rate 5
2.16: Acceleration rate 6
2.17: Acceleration rate 7
2.18: Acceleration rate 8
: Jog acceleration rate
Adjustment range :0.1 to 600.0 s/1000 rpm
Factory setting :0.2 s/1000 rpm
Sets the time for acceleration from 0 to 1000 rpm.
2.19 =
: Deceleration rate selector
Adjustment range :0 to 9
Factory setting :1
This parameter is used to select the deceleration ramp as
follows:
0 (Term. inputs) (SEL): Selection of the deceleration ramp
via digital input. The choice of ramp comes from the binary
sum in menu 9 (9.32).
1 (Deceler.1) (Dec1): Deceleration ramp 1
2 (Deceler.2) (Dec2): Deceleration ramp 2
3 (Deceler.3) (Dec3): Deceleration ramp 3
4 (Deceler.4) (Dec4): Deceleration ramp 4
5 (Deceler.5) (Dec5): Deceleration ramp 5
6 (Deceler.6) (Dec6): Deceleration ramp 6
7 (Deceler.7) (Dec7): Deceleration ramp 7
8 (Deceler.8) (Dec8): Deceleration ramp 8
9 (To preset) (rP.Pr): The ramp is automatically associated
with the corresponding preset speed.
to : Deceleration rates 1 to 8
Adjustment range :0.1 to 600.0 s/1000 rpm
Factory setting :5.0 s/1000 rpm
Sets the time for deceleration from 1000 rpm to 0.
2.21 to 2.28 =
2.21: Deceleration rate 1 (main ramp in factory settings)
2.22: Deceleration rate 2
2.23: Deceleration rate 3
2.24: Deceleration rate 4
2.25: Deceleration rate 5
2.26: Deceleration rate 6
2.27: Deceleration rate 7
2.28: Deceleration rate 8
: Jog deceleration rate
Adjustment range :0.1 to 600.0 s/1000 rpm
Factory setting :0.2 s/1000 rpm
Sets the time for deceleration from 1000 rpm to 0.
2.29 =
to : Not used
: Ramp hold condition
Adjustment range :0 or 1
Factory setting :0
0 (ALL) (ALL): When 2.03 = 1, the ramp is always held.
1 (> V MIN) (S.Min): When 2.03 = 1, the ramp is freed
between 0 and V min (1.07).
2.11 2.18
t(s) x 1000 rpm
(N2 - N1) rpm
N (rpm)
1000
N2
N1
0
Value of 2.11 to 2.18
t
t (s)
2.19
t(s) x 1000 rpm
(N2 - N1) rpm
0
Value of 2.19
t
t (s)
N (rpm)
1000
N2
N1
2.20
2.21 2.28
t(s) x 1000 rpm
(N2 - N1) rpm
0
Value of 2.21 to 2.28
t
t (s)
N (rpm)
1000
N2
N1
2.29
t(s) x 1000 rpm
(N2 - N1) rpm
0
Value of 2.29
t
t (s)
N (rpm)
1000
N2
N1
2.30 2.50
2.51
