FB107 LCD User Manual
Issued Sep-07 Configuration 2-1
Chapter 2 – Configuration
This chapter provides instructions for configuring Touchpad options.
The FB107 is factory-configured to accept the Touchpad. Until you
connect the Touchpad to the FB107, the Display port displays an
integrity (“red I”) error (see Figure 2-1, Section 2-1).
After connecting the Touchpad, you can configure additional display
options as well as Touchpad security (see Sections 2-2 through 2-6).
2.1 Configuring the Port Owner
1. Log onto and open ROCLINK 800. The FB107 graphic displays.

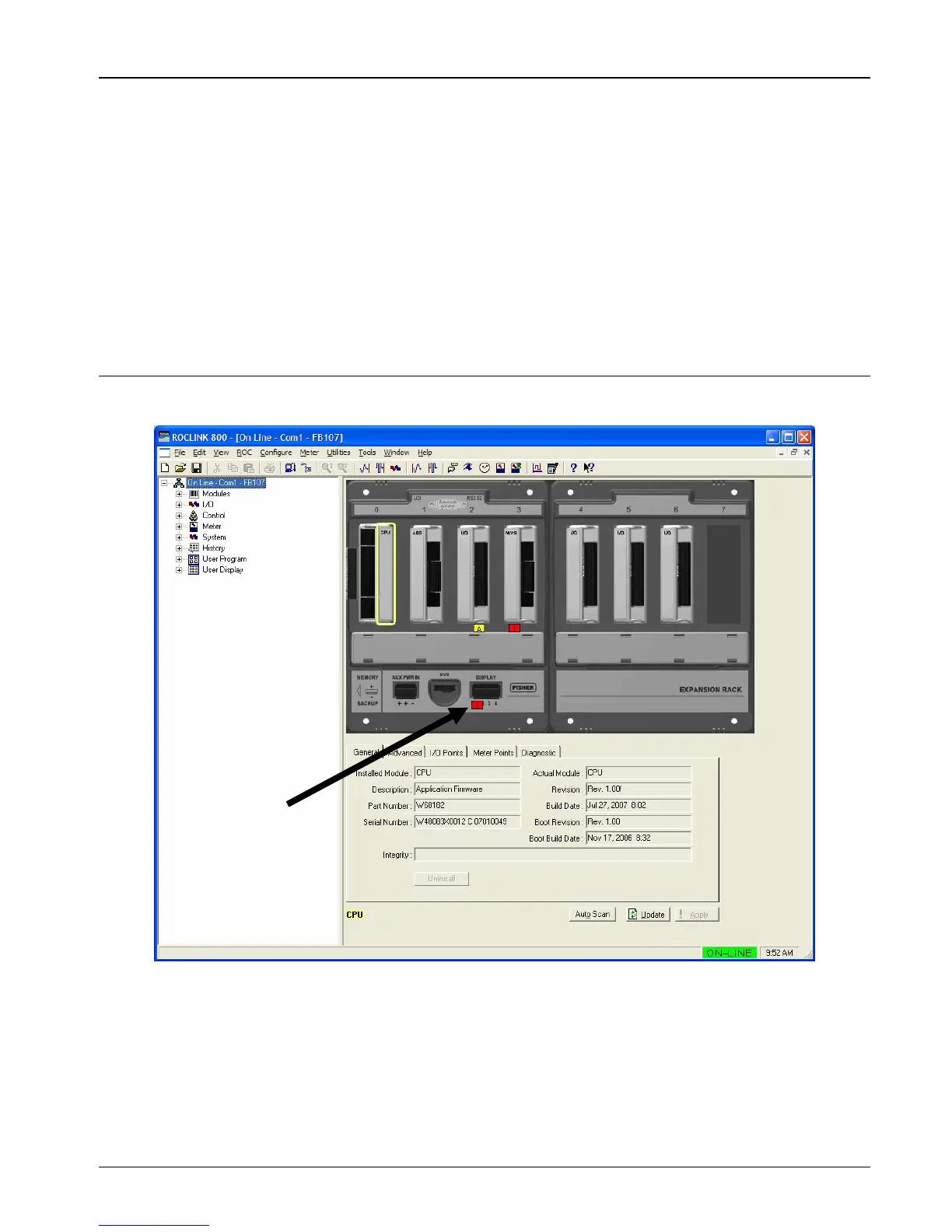

Figure 2-1. FB107 Graphic Display
2. Plug the connector for the Touchpad into the Display port on your
FB107 (see Figure 2-1). The Touchpad activates and displays the
message “Waiting for Comms…”
