FB107 LCD User Manual
Issued Sep-07 Using the Touchpad 3-19

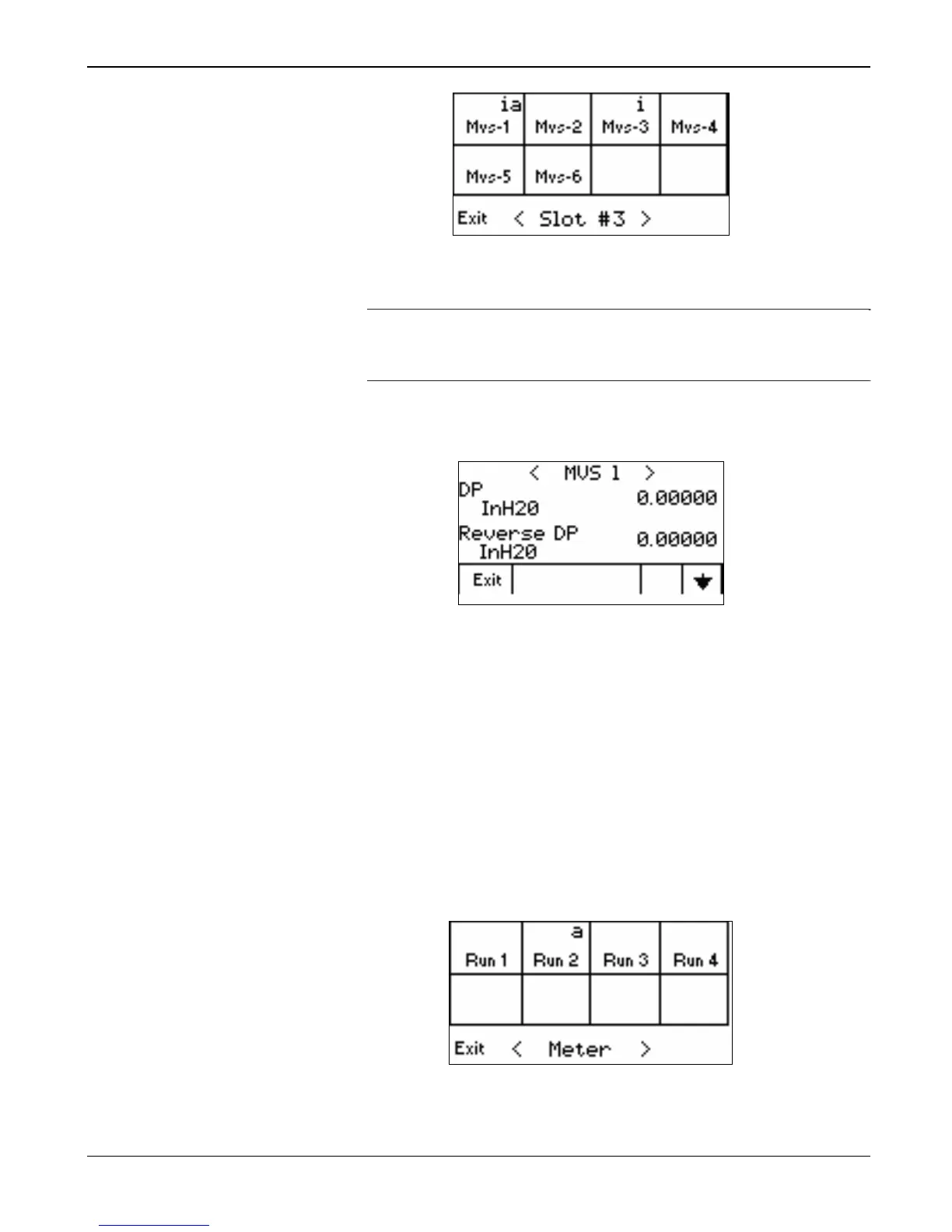

Figure 3-34. MVS Menu
Note: A blinking i, ia, or a in the upper right corner of an MVS
box (as in Mvs-1 and Mvs-3 in Figure 3-34) indicates an
integrity or alarm issue with this transmitter.
3. Touch a transmitter box. A parameter screen for the MVS transmitter
displays.
Figure 3-35. MVS Parameters
4. Touch Ð or Ï to view additional parameter values.
5. Touch Exit to display the MVS menu.
6. Touch Exit to display the Modules menu.
3.5.5 Viewing Meter Information
The FB107 supports up to four meters. Use this option to view flow rate
and alarm information for each defined meter run.
1. Touch Meter on the Modules menu. The Meter Run menu displays.
Figure 3-36. Meter Run Menu
To Next Page
