FB107 LCD User Manual
Issued Sep-07 Using the Touchpad 3-27
3.6.1 Viewing Historical Data
Use this option to view defined historical data points you have defined on
the LCD User List – Chart screen.
1. Touch Historic on the Chart menu. The History menu displays.

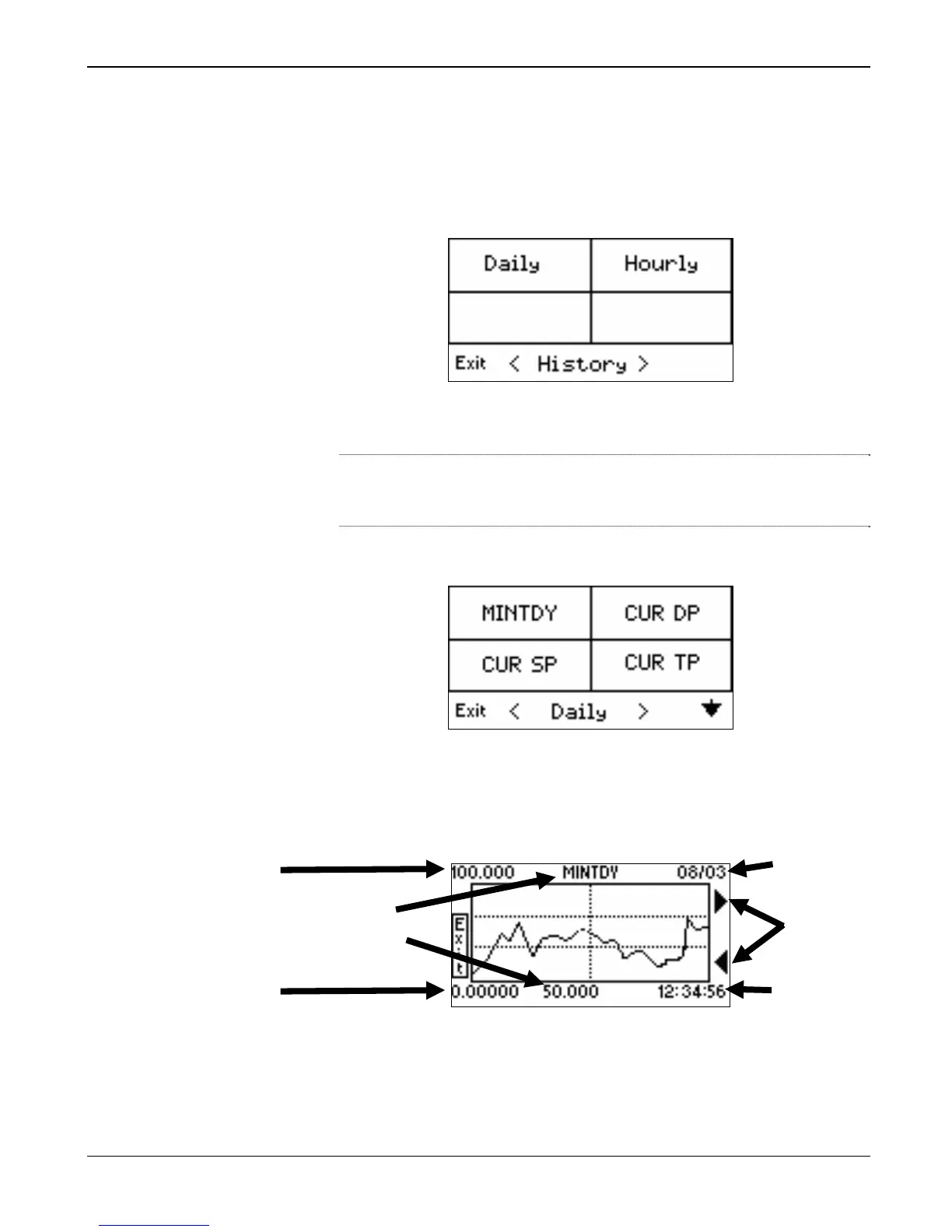

Figure 3-53. History Menu
Note: This menu enables you to view historical data either on an
hourly or daily basis. The menu options on the subsequent
screens are the same.
2. Touch Daily on the History menu. The Daily History menu displays.
Figure 3-54. Daily History Menu
3. Touch an option on the Daily History menu. A history charting screen
displays.
Figure 3-55. History Chart
The vertical dotted line indicates the current point on the historical
record. The arrows on the right side of the chart allow you to scroll
forward (X) or backward (W) on the historical record (up to 60 days,
MM/DD at
scroll point
Time at
scroll point
Value at current
Value’s label
Upper scale
Lower scale
To Next Page
