3-32 Using the Touchpad Issued Sep-07
Use this screen to switch the PID Control mode between Automatic
and Manual.
8. Touch Exit to display the PID Parameters menu.
9. Touch Output to display the PID Output screen.

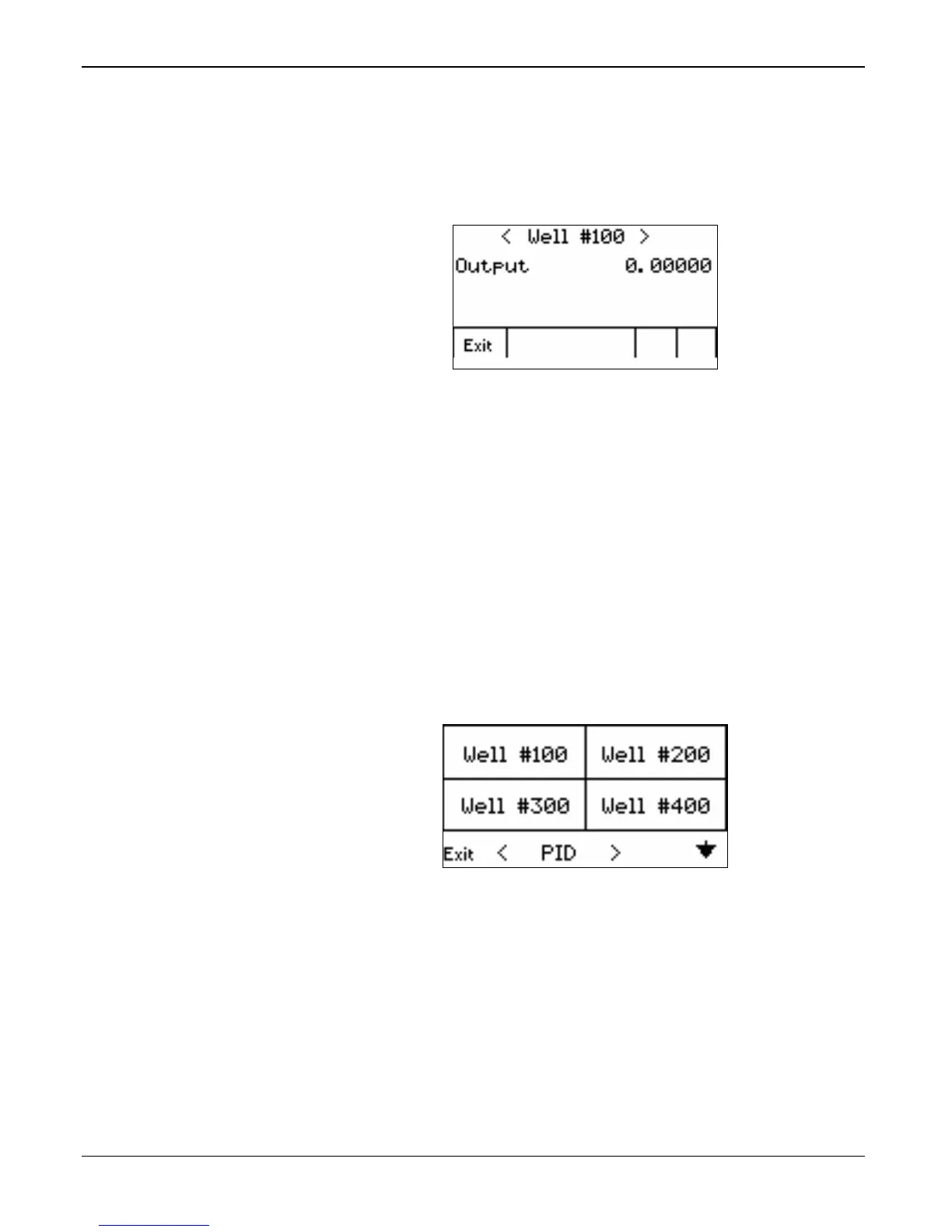

Figure 3-65. PID Output
Use this screen to review the current output for the PID loop.
10. Touch Exit to display the PID Parameters menu.
11. Touch Exit to display the PID Loop menu.
12. Touch Exit to display the PID Menu.
3.7.2 Setting Advanced PID Loops
Use this option to access a graphic display (and supporting screens) that
enables you to quickly review and adjust PID parameters.
1. Touch Advanced on the PID menu. The PID Loop menu displays.
Figure 3-66. PID Loop Menu
2. Touch a PID loop on the PID Loop menu. The graphical PID Loop
displays.
