Emerson FloBoss 107 User Manual

FB107 LCD User Manual
Issued Sep-07 Using the Touchpad 3-9

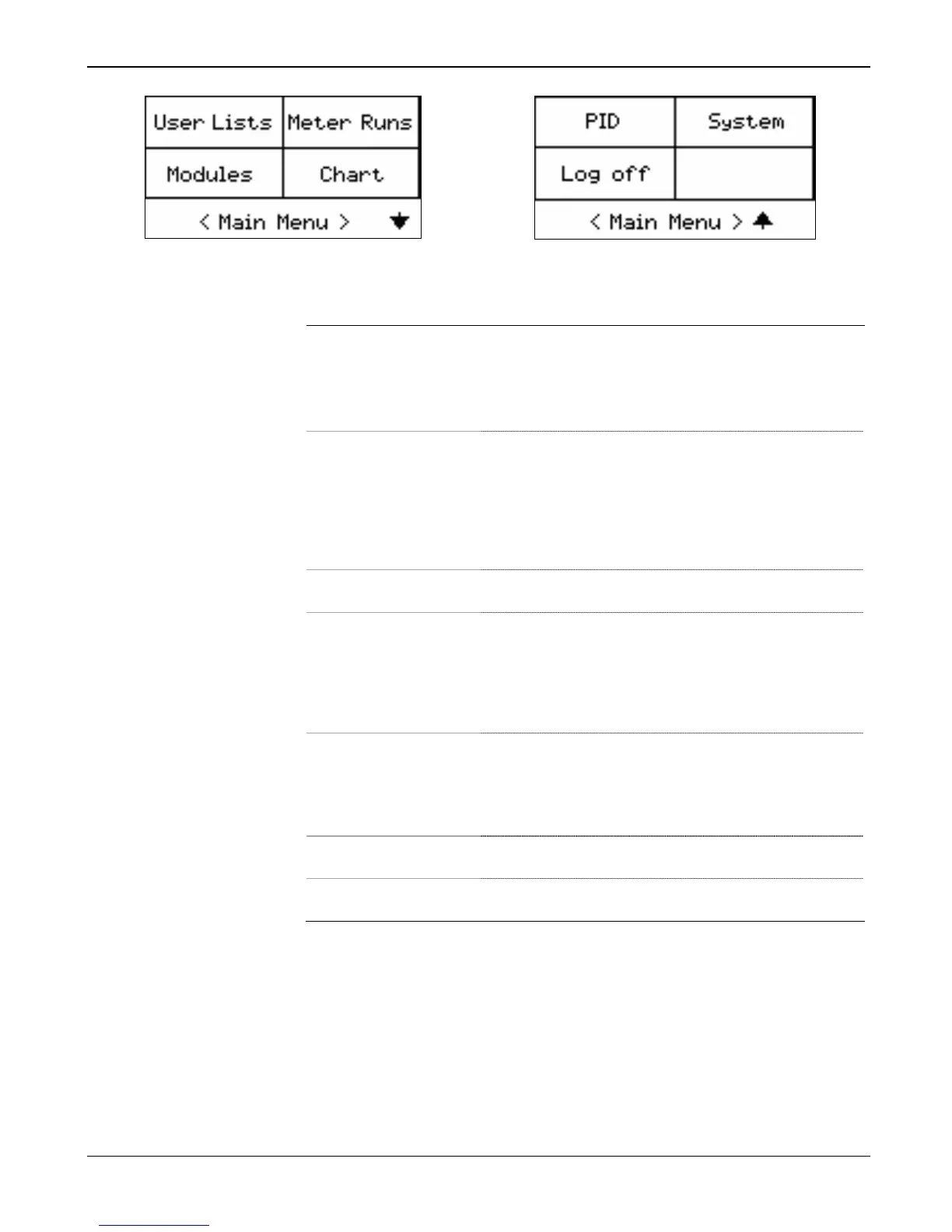

Figure 3-15. Touchpad Main Menu
Option Description
User Lists
Displays a list of 16 parameter values. You can
define up to four lists, for a total of up to 64
parameters.
Note: Configure these values using the LCD User
List screen.
Meter Runs
Displays values for up to four meter runs.
Note: These are read-only values. You configure
the number of valid meters on the Points tab
on the Device Information screen (ROC >
Device Information) and the meter content
itself on the Meter Setup screen (Meter >
Setup).
Modules
Displays parameter values associated with each
module installed in the FB107.
Chart
Displays historical or dynamic information in a chart
format.
Note: These are read-only values. You define the
format, scale, and content of the charts using
the LCD User List – Chart screen (Configure
> LCD User List > Chart).
PID
Displays and permits changes to defined PID
parameters. .
Note: You must first define PID parameters on the
PID Loop screen (Configure > Control > PID
Loop).
System
Enables you to access and modify some general
system parameters.
Log Off
Logs you off the Touchpad; redisplays the idle logos
screen.
Sections 3.3 through 3.9 discuss these options.
