FB107 LCD User Manual
1-2 Introduction Issued Sep-07

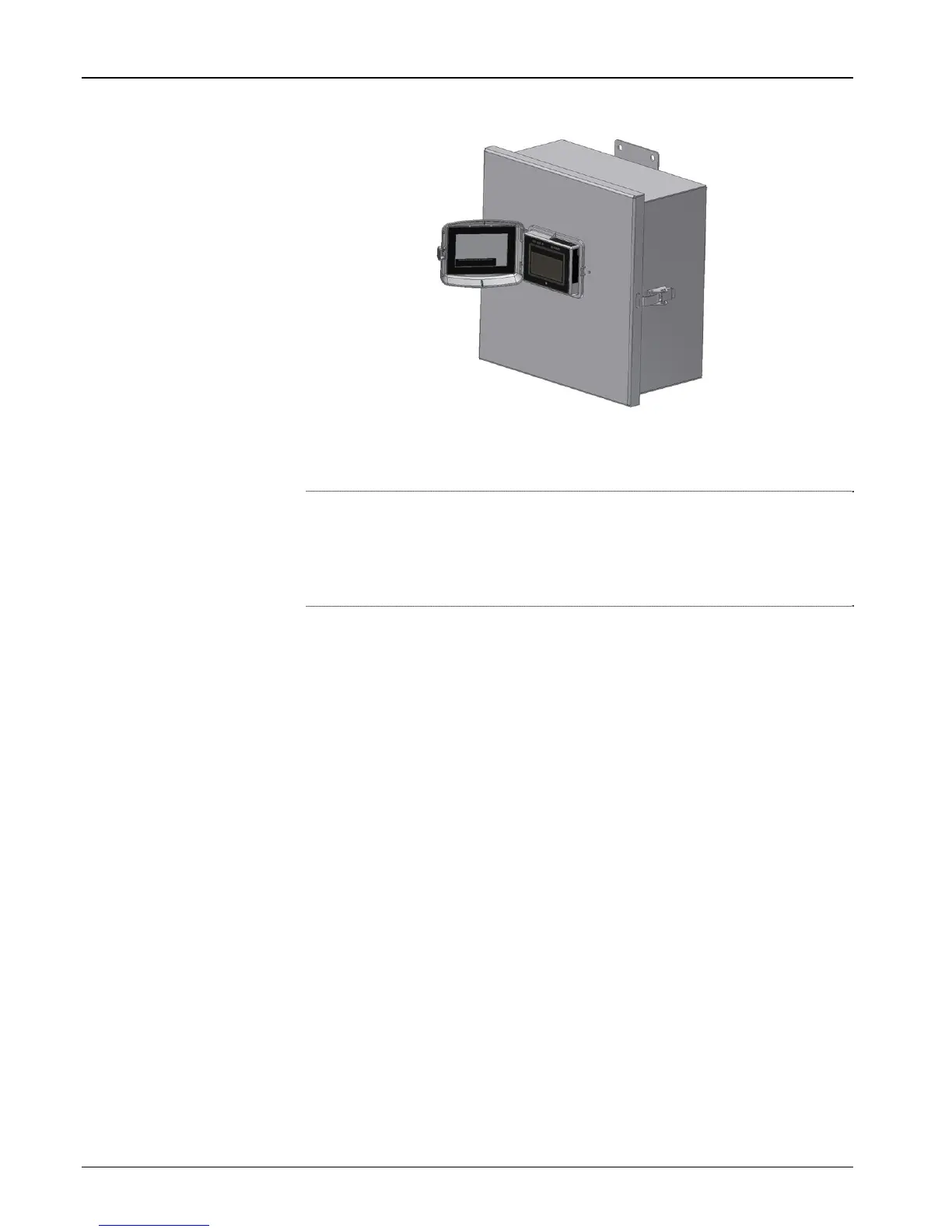

Figure 1-1. FB107 Touchpad, Enclosure-Mounted
Note: The Touchpad (with FB107) is designed to be mounted to an
enclosure. Remote Automation Solutions has an enclosure
designed for the Touchpad. If you choose to use your own
enclosure, contact your local sales representative for a template
and appropriate specifications.
The Touchpad communicates with the FB107 through a dedicated RS-
232 connection located on the FB107 base unit (see Figure 1-2). The
Touchpad’s RS-232 connection is permanently configured with a baud
rate of 19200, 1 stop bit, 1 start bit, 8 data bits, and no parity.
