FB107 LCD User Manual
3-12 Using the Touchpad Issued Sep-07

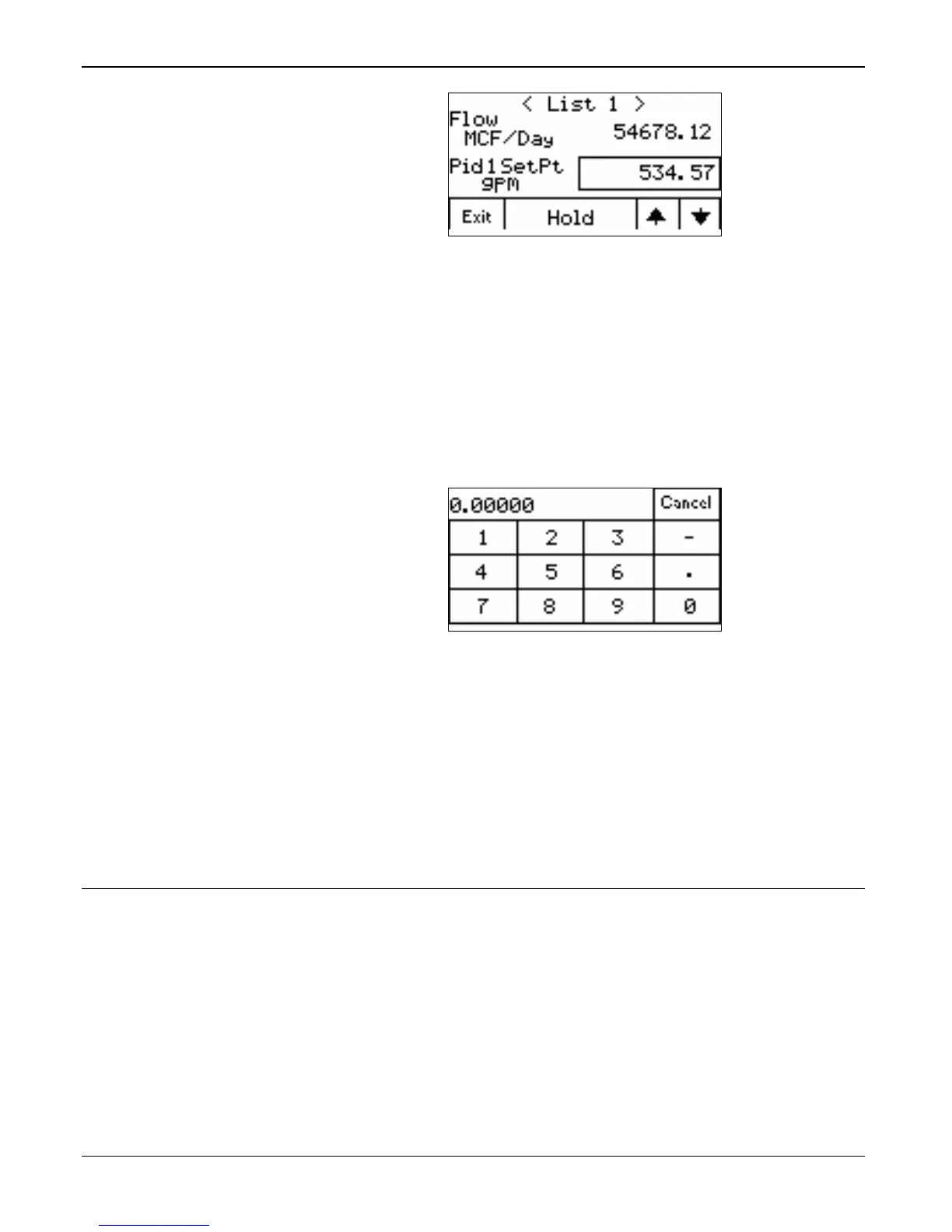

Figure 3-18. User List Parameters)
3. The Touchpad automatically scrolls through the defined values in the
user list. You can touch Hold to pause the display (and restart the
scroll by pressing Scroll), or touch Ð or Ï to move more quickly
through the parameter values.
In this example, note that the value for the second parameter (Pid 1
SetPt) has a box around it. This means you can edit it. If you touch
this value, a numeric keypad screen displays.
Figure 3-19. Numeric Keypad
If appropriate, use the keypad to enter a new value for the indicated
field. Touch Done to apply the edited value to the parameters
screen.The Touchpad requires your confirmation before it applies any
changes to the parameter values.
4. Touch Exit to display the User List menu.
5. Touch Exit to display the Touchpad Main Menu.
3.4 Meter Runs
You can define up to four meter runs for the FB107. You configure the
number of valid meters on the Points tab on the Device Information
screen (ROC > Device Information) and the meter information itself on
the Meter Setup screen (Meter > Setup). Once you have defined and
configured the meter runs using ROCLINK 800, you can use the
Touchpad to view and change the information.
1. Touch Meter Runs on the Main Menu. The Meter Run menu
displays.
