FB107 LCD User Manual
3-26 Using the Touchpad Issued Sep-07
3.6 Charts
Use this option to display historic or dynamic FB107 information in a
chart format. You must first use the ROCLINK 800 LCD User List –
Chart screen (Configure > LCD User List > Chart) to define up to 16
points for charting (see Figure 3-51).

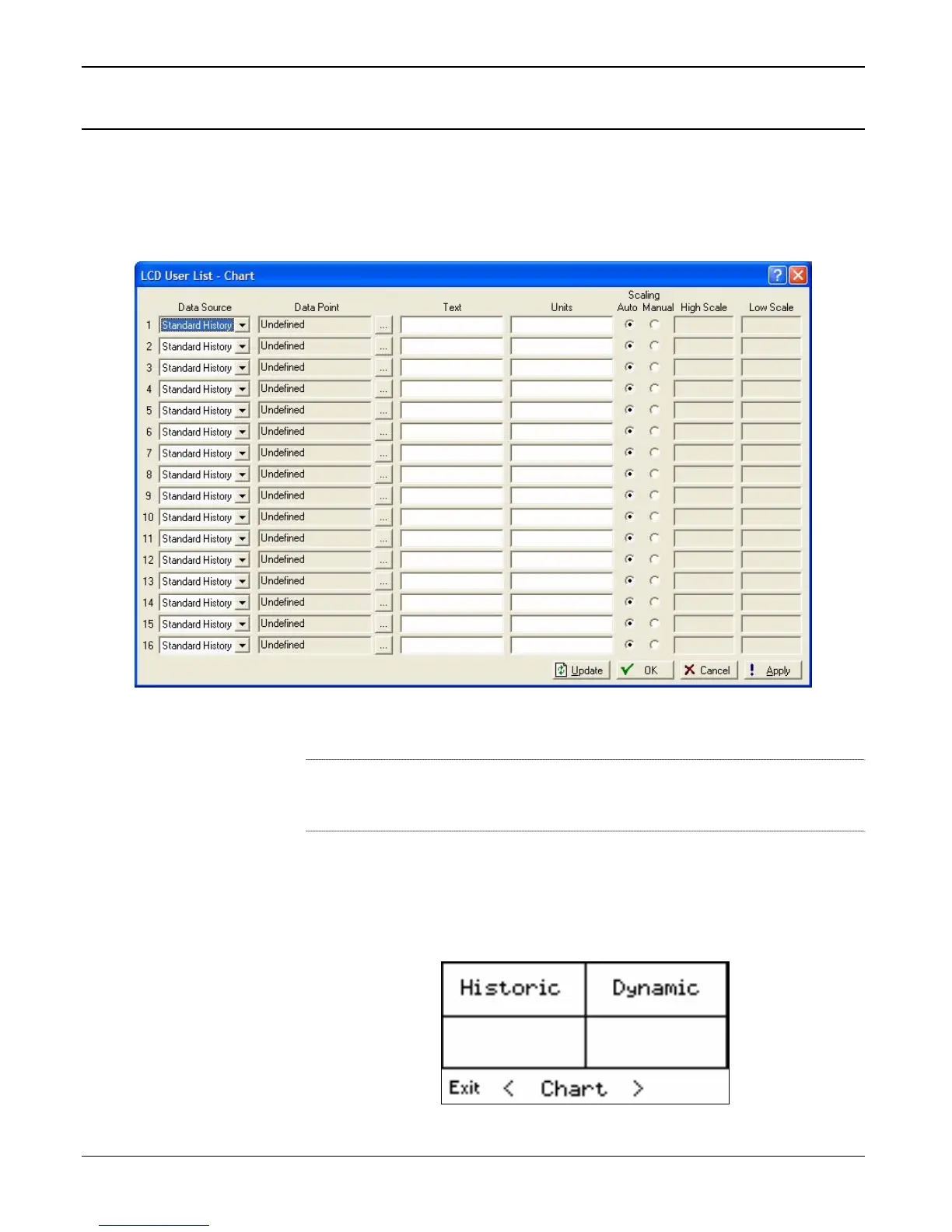

Figure 3-51. LCD User List – Chart
Note: Refer to Chapter 7 in the ROCLINK 800 Configuration Software
User Manual (for FloBoss 107) (A6217) for complete instructions
on configuring this screen.
Once you have configured the points on this screen, you can view them
on the Touchpad.
Touch Chart on the Modules menu. The Chart menu displays.
