FB107 LCD User Manual
3-28 Using the Touchpad Issued Sep-07
as defined on the ROCLINK 800 History Setup screen’s Setup tab).
Touch an arrow once to move in daily (or hourly) steps; touch and
hold an arrow to “fast scroll” through the chart.
The date for the current scroll point appears in the upper right-hand
corner of the screen. The time for the current scroll point appears in
the lower right-hand corner of the screen. The value for the current
scroll point appears in the lower middle of the screen. The label for
the value appears in the upper middle of the screen, and alternates
with the units for that label every four seconds.
4. Touch Exit to display the Daily History menu.
5. Touch Exit to display the History menu.
6. Touch Exit to display the Chart menu.
7. Touch Exit to display the Modules menu.
3.6.2 Viewing Dynamic Data
Use this option to view dynamic data points you have defined on the LCD
User List – Chart screen.
1. Touch Dynamic on the Chart menu. The Dynamic Data menu
displays.

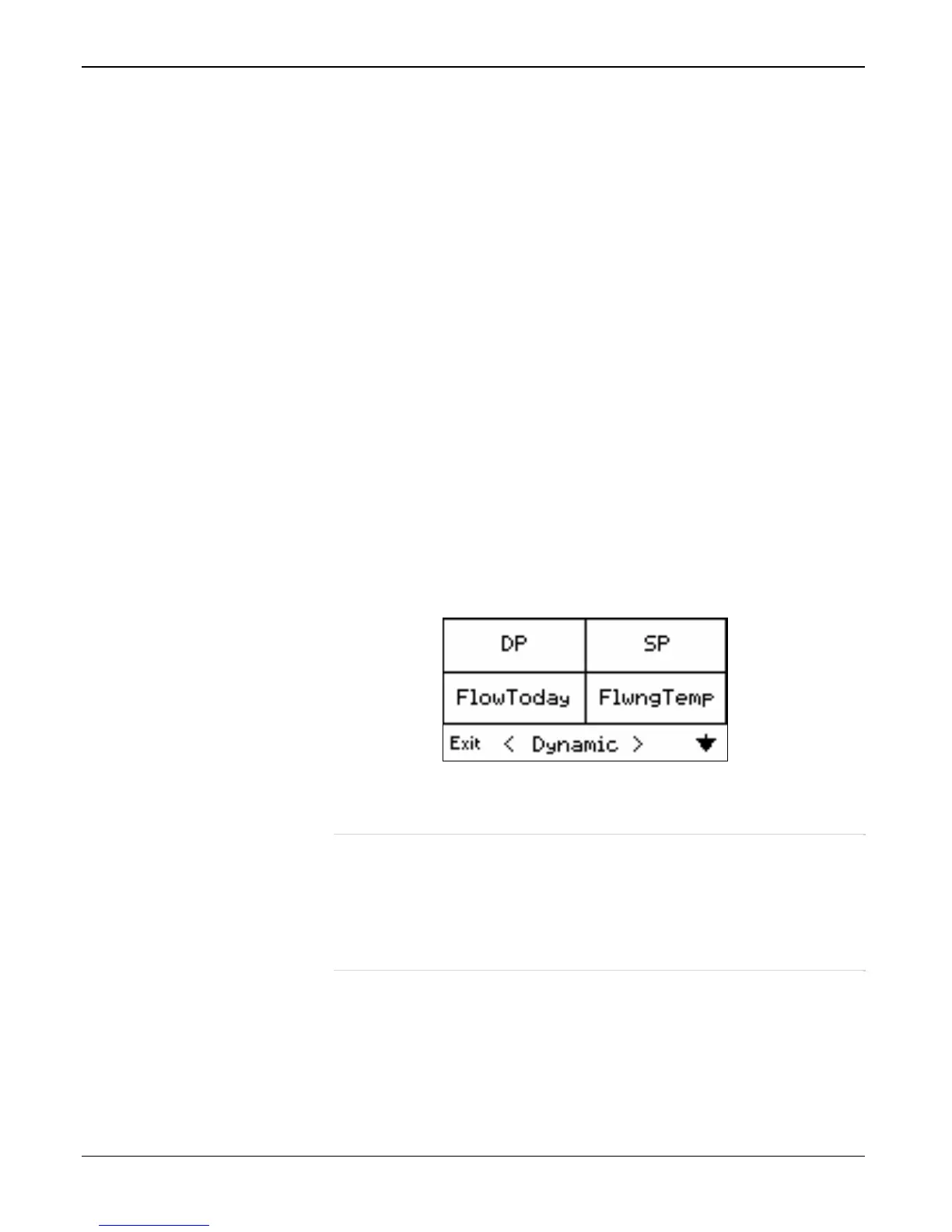

Figure 3-56. Dynamic Data Menu
Note: The titles on the Dynamic Data menu items correspond to what
you have used–or entered–in the Text field on the LCD User
List – Chart screen. You can define as many as 16 Dynamic
points. The Touchpad configures each defined point as a menu
option. You can touch Ð or Ï to display additional menu
options.
2. Touch a selection on the Dynamic Data menu. A dynamic charting
screen displays.
