FB107 LCD User Manual
Issued Sep-07 Introduction 1-3

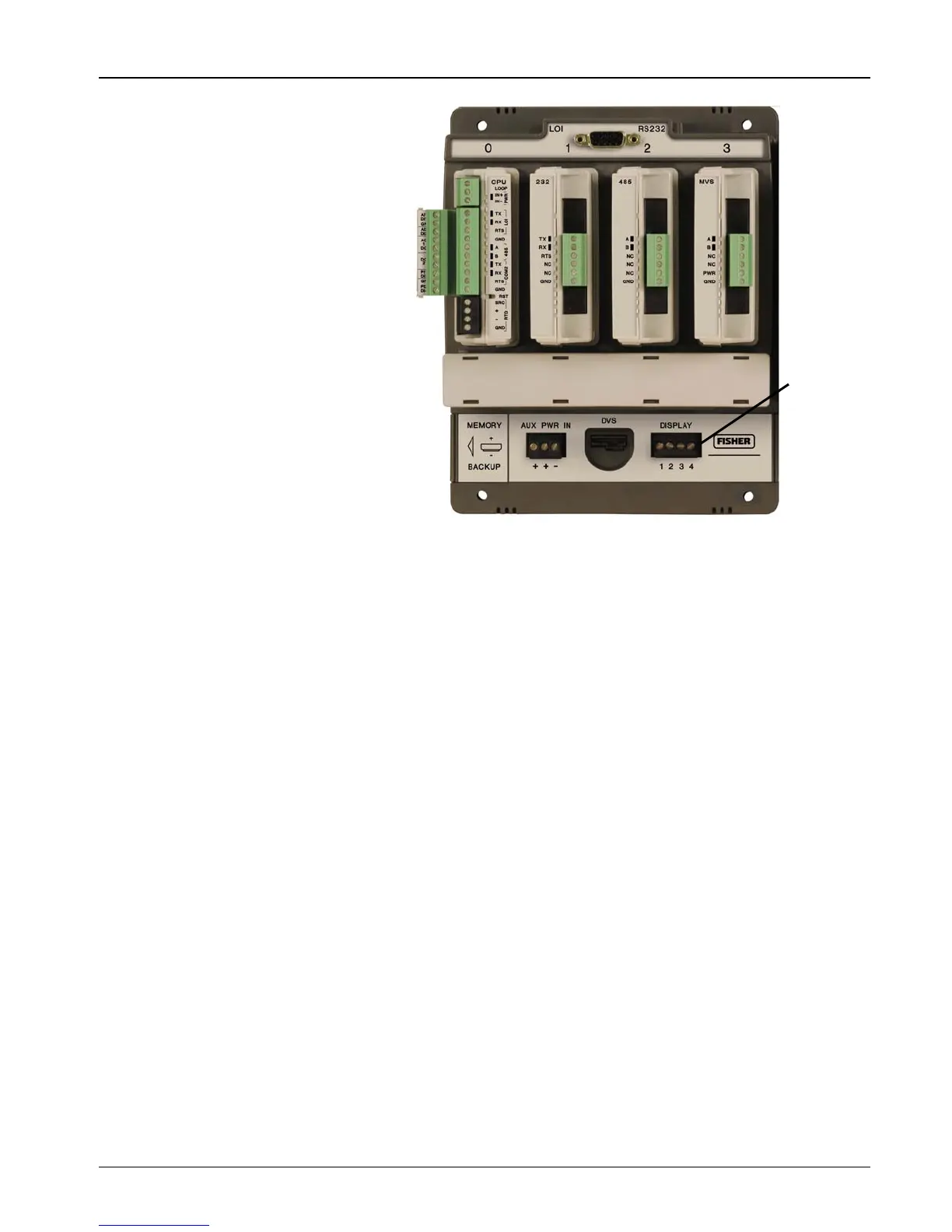

Figure 1-2. FB107 Base Unit, Display Connection
The Touchpad is a transreflective LCD. To maintain readability in
direct sunlight, it reflects most of the sunlight and increases or decreases
the brightness of its display based on the amount of light. This reduces
your need to manually adjust the screen. It also has a backlight to
increase readability during low-light use conditions or during critical
operations (such as when you enter a PIN code). During idle periods,
the backlight automatically enters a power-saving mode to conserve
energy.
The Touchpad requires no manual calibration. Internal firmware
provides the coordinates to assure display communications between the
Touchpad and your FB107.
Display
connection
