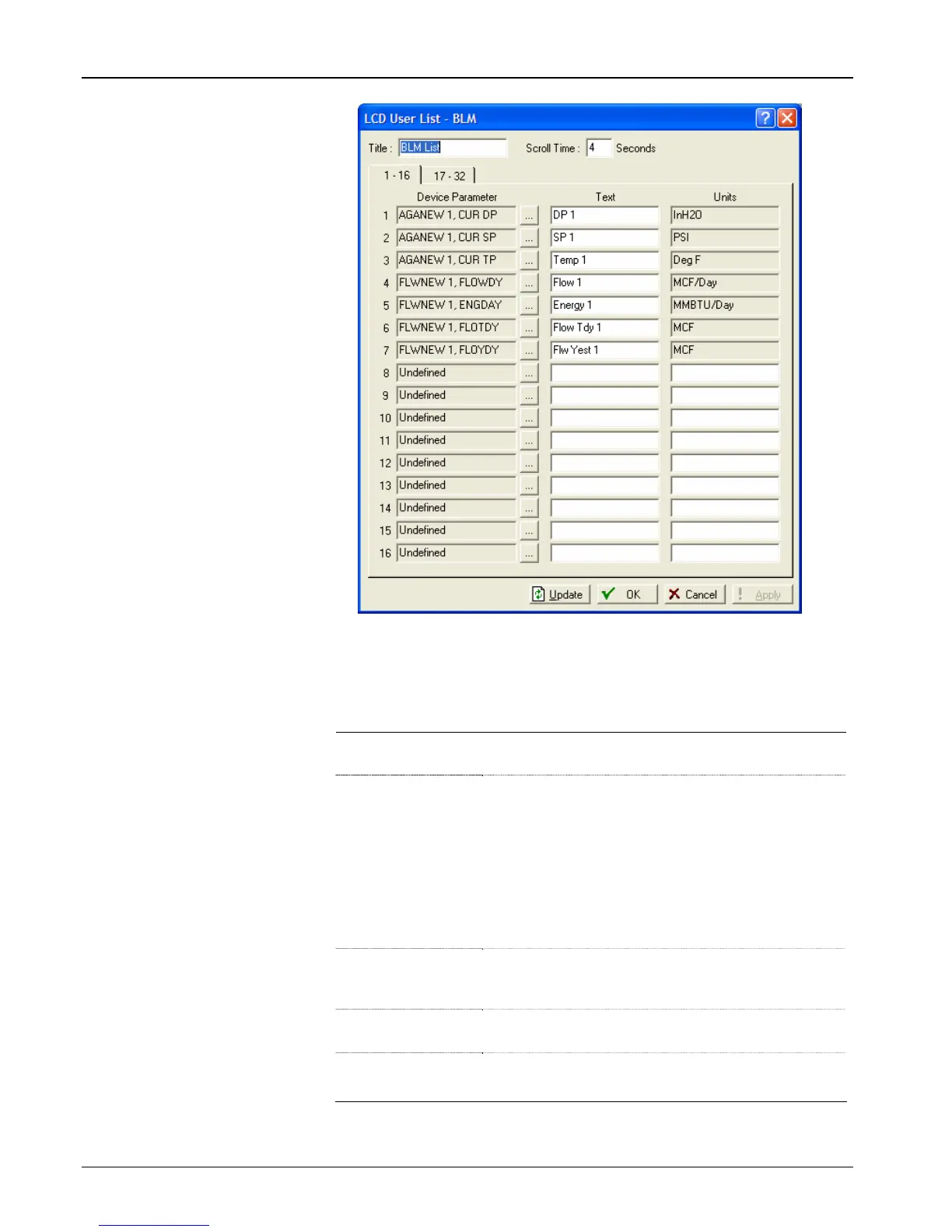

Figure 2-8. LCD User List – BLM
4. Complete the following fields to define the contents of the BLM list.
Field Description
Title
Sets a 10-character alphanumeric identifier for the
list.
Scroll Time
Indicates the number of seconds the Touchpad
displays each parameter set before scrolling to
the next parameter set. (The Touchpad displays
up to two parameters at a time.) Valid values are
0 (do not scroll) to 255; the default is 4.
Note: If you set this value to 0, you must use the
Ï and Ð keys on the Touchpad to
manually scroll through the parameters
defined in the list.
Device
Parameter
Sets the parameter that you want to display on the
Touchpad. Click … to display a Select TLP screen
you use to define the parameter.
Text
Sets a 10-character alphanumeric identifier for the
parameter.
Units
Shows the engineering units for the associated
parameter.
5. Click the 17-32 tab to define 16 additional parameters.
