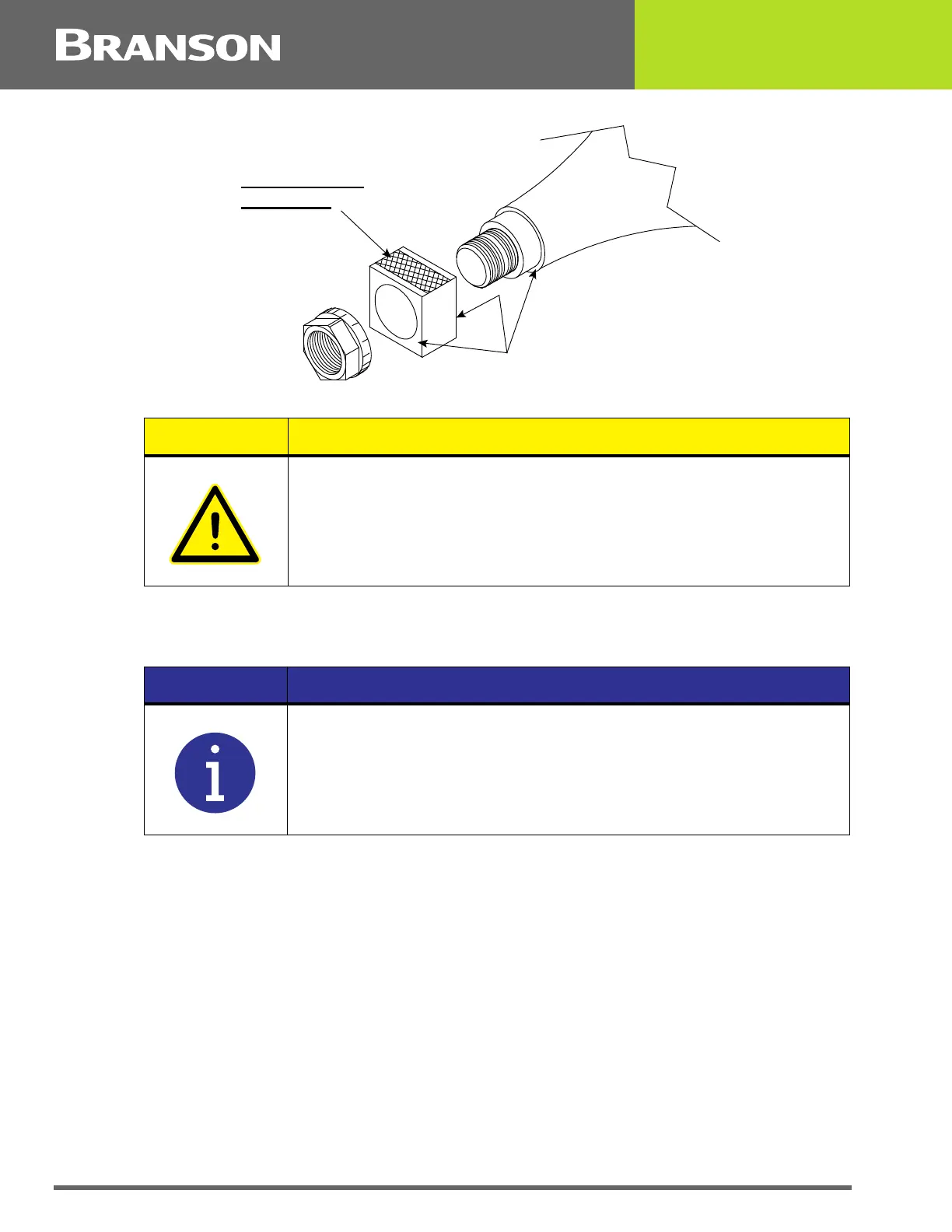

Figure 7.4 Reconditioning Tip and Nut Clamping Surfaces
7.1.3.4 Lubrication Schedule
Actual lubrication interval is under the influence of each application and environment.
Branson recommends the following schedule as an initial plan to follow:
After 1 month of normal operation:
1. Inspect interior of actuator for possible grease discharge.
2. Re-lubricate slide with specified grease until slide reservoir is full (minimum of 0.6 CC).
3. Allow full travel of the slide unit inside the actuator.
4. Cycle the slide 10-20 to re-circulate the grease.
After 3 months of normal operation:
1. Inspect interior of actuator for possible grease discharge.
2. Re-lubricate slide with specified grease until slide reservoir is full (minimum of 0.6 CC).
3. Allow full travel of the slide unit inside the actuator.
4. Cycle the slide 10-20 to re-circulate the grease.
CAUTION General Warning
In no case should more than .020” of material be removed from the
Horn clamp surface.
Remove any
burrs by
polishing as
described
above.
These are the
clamping surfaces
Remove any
burrs on the
horn by
machining
.020” max clean up is
allowed
The undercut must be
re-cut.
Don’t clean the
Knurl area!
NOTICE
When re-mounting the slide block to the rail for any reason, care
must be taken to avoid dislodging rollers from the tracks within the
slide block.
