* The position controller is disabled and the error integrator is also reset under the following conditions:
1. If the drive is disabled (i.e. inhibited, ready or tripped)
2. If the position controller mode (Pr 13.10) is changed. The position controller is disabled transiently to reset the error integrator.
3. The absolute mode parameter (Pr 13.11) is changed. The position controller is disabled transiently to reset the error integrator.
4. One of the position sources is invalid.
The position feedback initialised parameter (Pr 3.48) is zero.
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
Orientation
13.14
13.15
Orientation
acceptance
window
Orientation
position
complete
13.01
13.02
13.03
Position loop error
Position loop
enabled*
1
6.08
Hold zero
speed
13.10
Position
controller
mode**
1.01
1.39
Frequency/speed
reference
selected
Velocity
feed-
forward
1.40
Velocity feed
-forward
select
1.03
Pre-ramp
reference
Menu 2
Ramp Control
2.01
Post-ramp
reference
+
13.09
Position
controller
P gain
13.12
Position
controller
speed clamp
3.22
Hard speed
reference
+
3.23
Hard speed
reference
selector
3.01
Final speed
reference
Position loop
disabled
Revolution Position Fine
Position
13.10 =
5 or 6
13.10 =
1 or 3
13.10 =
1 to 6

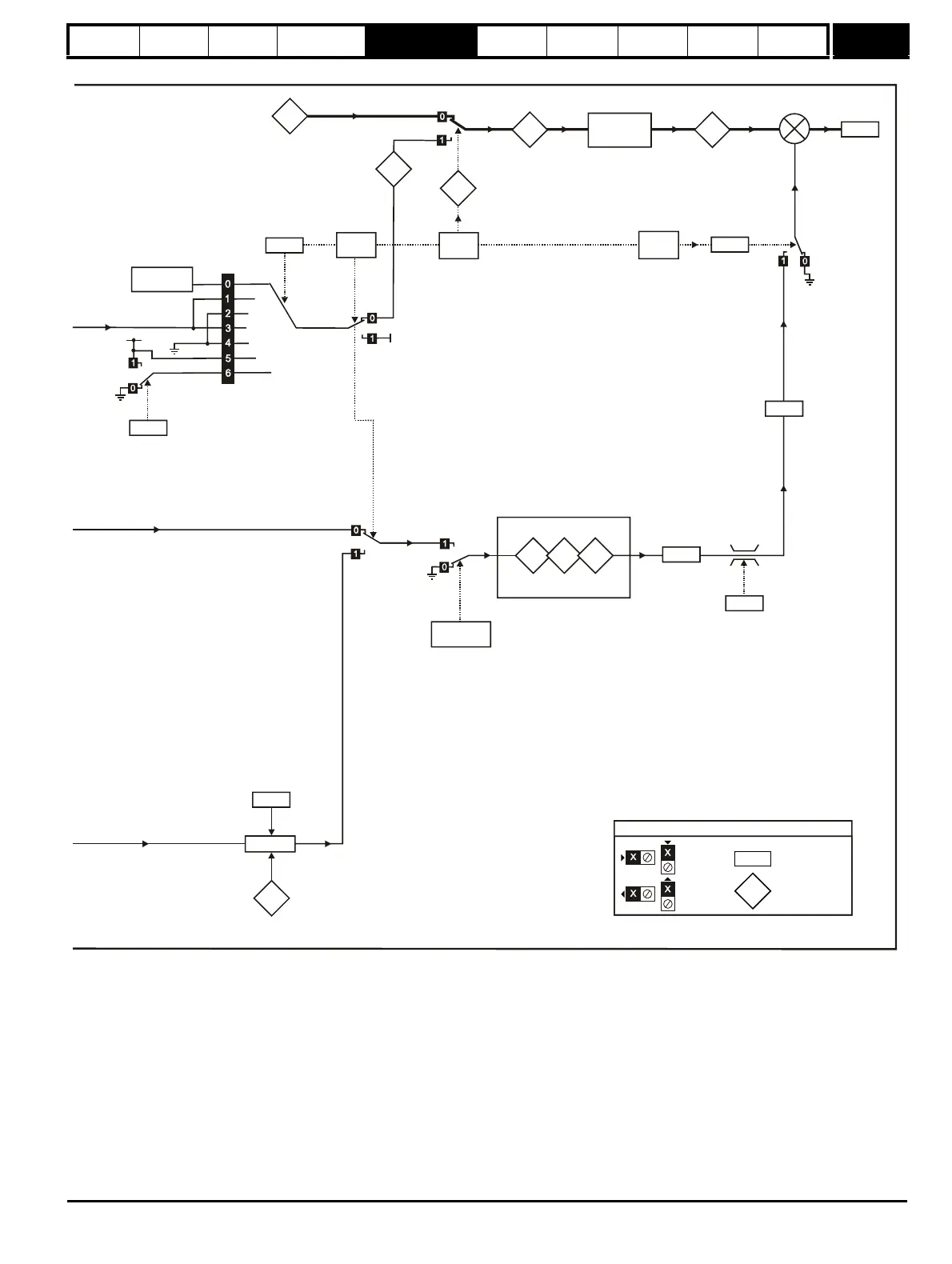

This logic diagram applies only when all
parameters are at their default settings

Emerson unidrive sp Specifications

General

Type	AC Drive
Storage Temperature	-40°C to +70°C
Communication Options	CANopen, Ethernet, Profibus, DeviceNet
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Operating Stop (SOS)
Overload	150% for 60 seconds
Enclosure	IP20
Output Voltage Range	0 - Input Voltage
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	95% non-condensing
Cooling Method	Fan cooled
Dimensions	Varies depending on the power rating and enclosure type
Weight	Varies depending on the power rating and enclosure type
Input Voltage	200 VAC - 690 VAC ±10%
