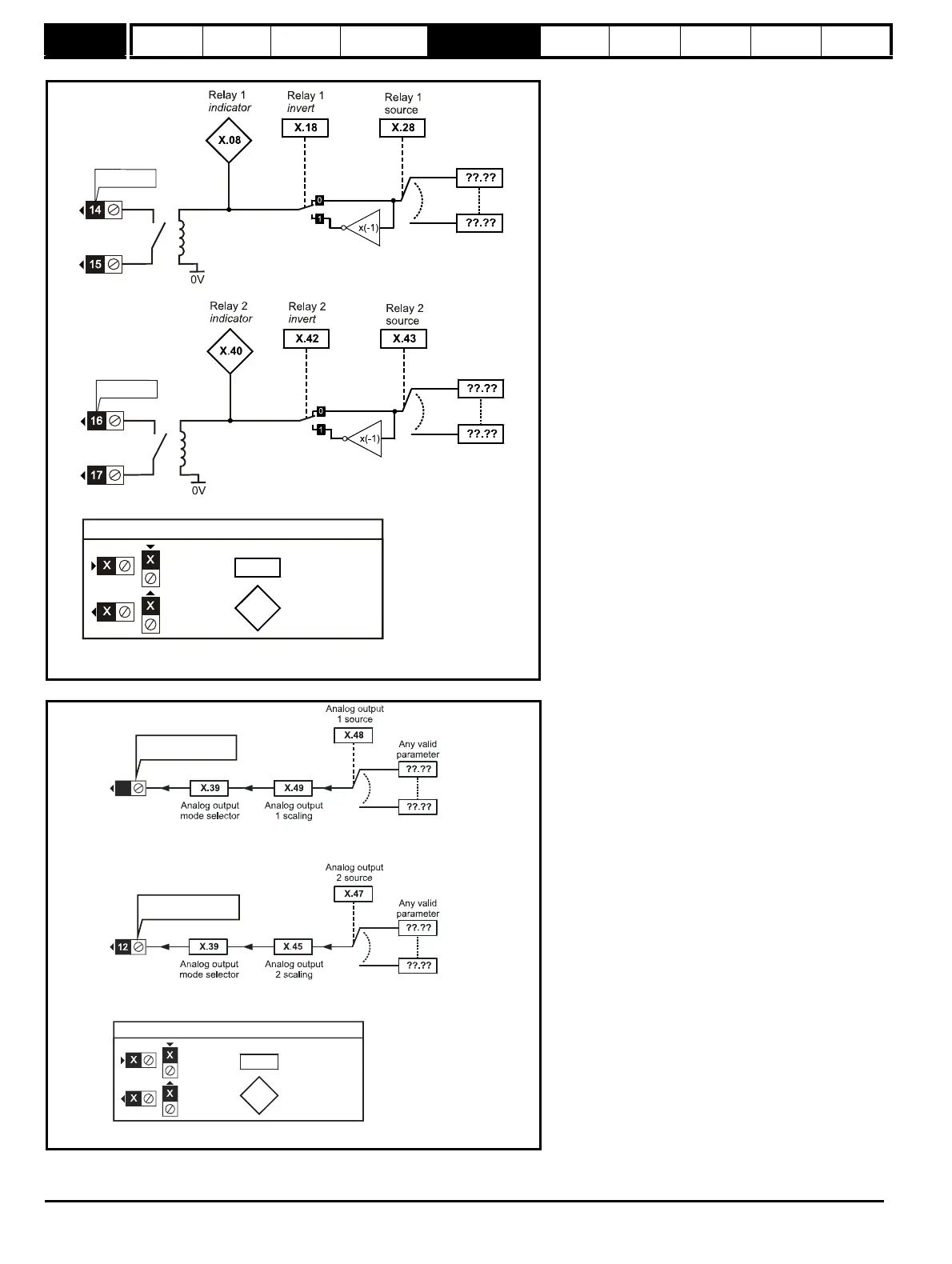

Figure 5-31 SM I/O 24V Protected relay logic diagram
Figure 5-32 SM-I/O 24V Protected analog output logic diagram
Relay 1
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default setting
Any bit or
integer
parameter
Relay 2
Any bit or
integer
parameter
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
T12 Analog output 2
T10 Analog output 1
10
