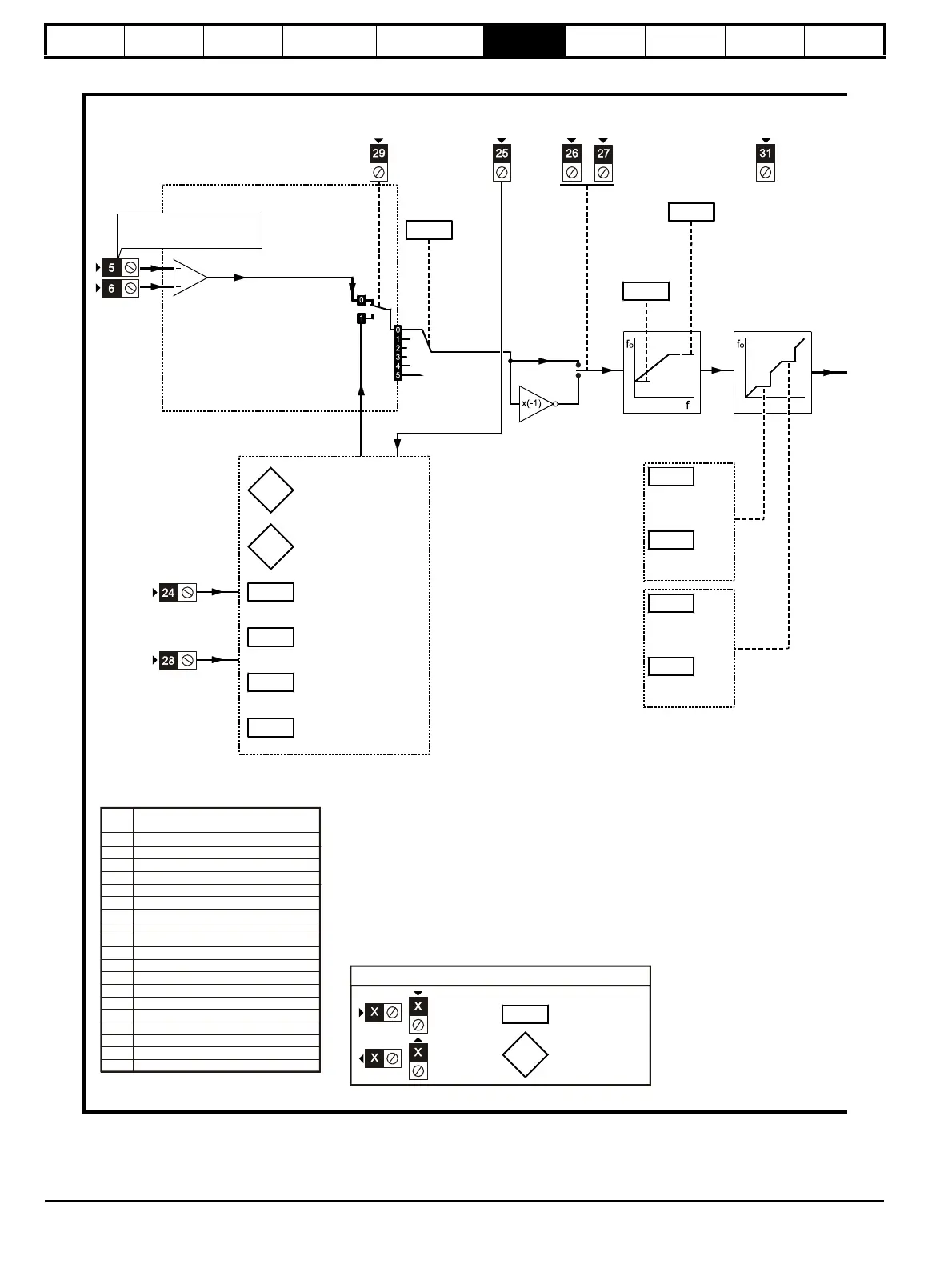

Figure 6-2 Macro 2 Motorized potentiometer logic diagram
Reference selection
Frequency/speed ref. 1
(remote)
DOWN
RUN
FORWARD
RUN
REVERSE
RESET and
MO T. PO T. RES ET
Motorized pot.
output indicator
0.05
Reference
selector
29
MOTORIZED
POT. ENABLE
Minimum
frequency/
speed clamp
0.01
0.02
0.20
0.21
0.22
0.23
Skip
frequency/
speed 1
Skip
freq./speed
band 1
Skip frequency/
speed 2
Skip
freq./speed
band 2
Skip
frequencies/
speeds
UP
DRIVE
ENABLE
Motorized pot.
zero-start select
0.27
0.28
0.29
0.30
Motorized pot.
bipolar select
Motorized pot. rate
Motorized pot.
output scale factor
Motorized pot.
reset indicator
0.26
0.25
6
6
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
Pr Function
0.11 Pre-ramp reference
0.12 Post-ramp reference
0.13 Motor active-current
0 14 Jog reference (not used)
0.15 Ramp mode
0.16 Stop mode
0.17 Status relay
0.18 S-ramp
0.19 S-ramp da/dt
0.20 Skip frequency/speed 1
0.21 Skip freq./speed band 1
0.22 Skip frequency/speed 2
0.23 Skip freq./speed band 2
0.25 Motorized pot. reset
0.26 Motorized pot. output
0.27 Motorized pot. zero-start
0.28 Motorized pot. Bipolar
0.29 Motorized pot. rate
0.30 Motorized pot.output scale factor
selector
selector
invert
enable
indicator
indicator
select
select
Menu 0 changes from default configuration
