Maintenance and care multi N/C 2100S
86

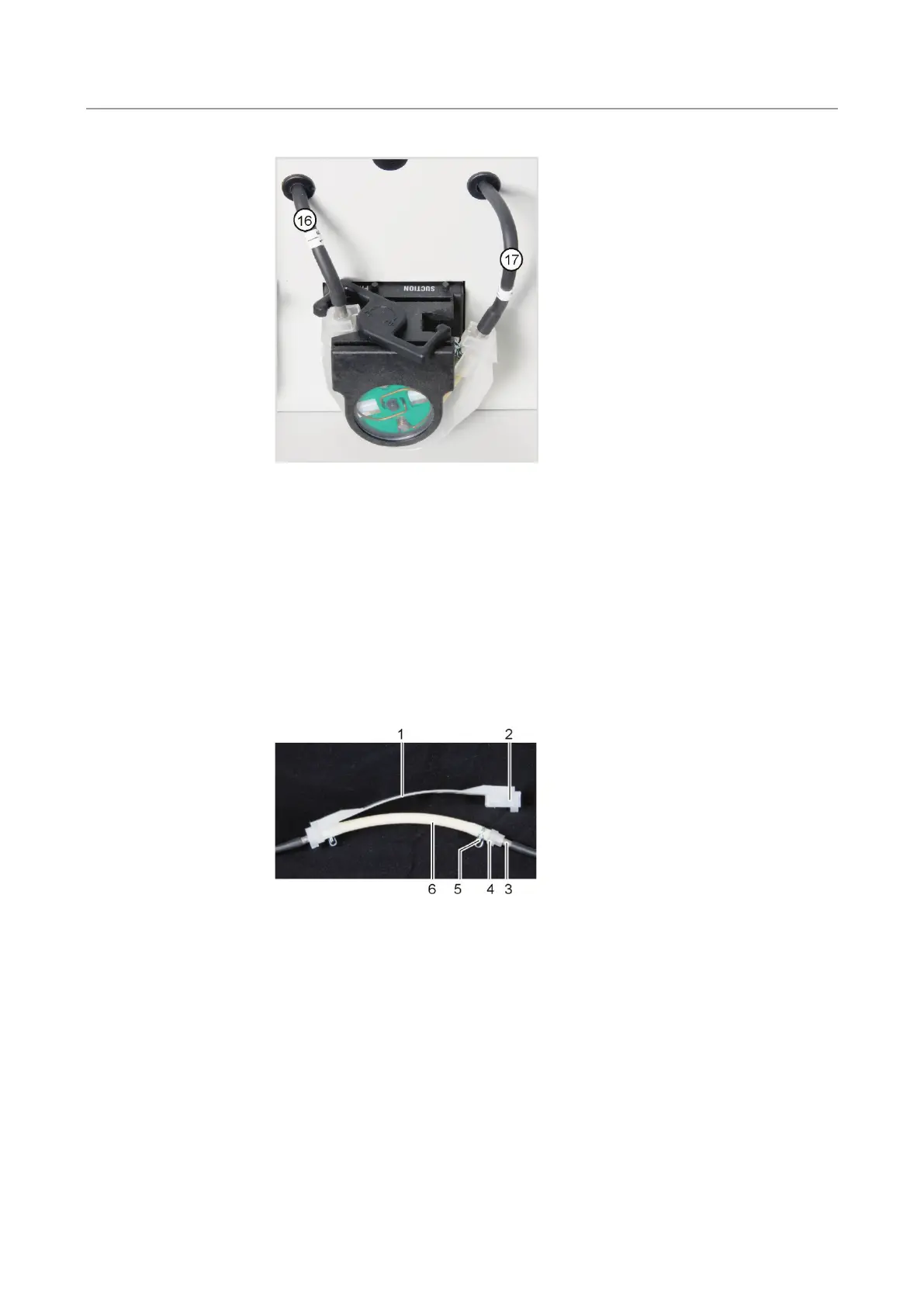

2. Push the bracket on the condensate
pump to the left.
3.
Pull the hoses no. 16 and no. 17 off
the connections.
4. Remove the conveyor belt with the pump hose from the pump body.
5.
Check the pump hose and the connections on excessive wear and cracks.
Note:
If moisture escapes from the pump hose or the connections, the pump hose must be
replaced.
6.
Wipe the pump body and roller carrier with ultrapure water.
7.
Check the pump body and roller carrier for wear.
Note:
If the pump bo
dy and roller carrier are heavily corroded, please contact Service.
1 Conveyor belt
2 Groove
3 Metal adapter
4 Tube guide
5 Hose clamp
6 Pump hose
8. Push the faultless or new pump
hose back into the conveyor
belt.
Note:
During installation the hose clamps
must be rotated downwards. Push
the hose guide into the groove on
the conveyor belt.
