Endress+Hauser Analytik Jena multi N/C 2100S User Manual

multi N/C 2100S Maintenance and care
87

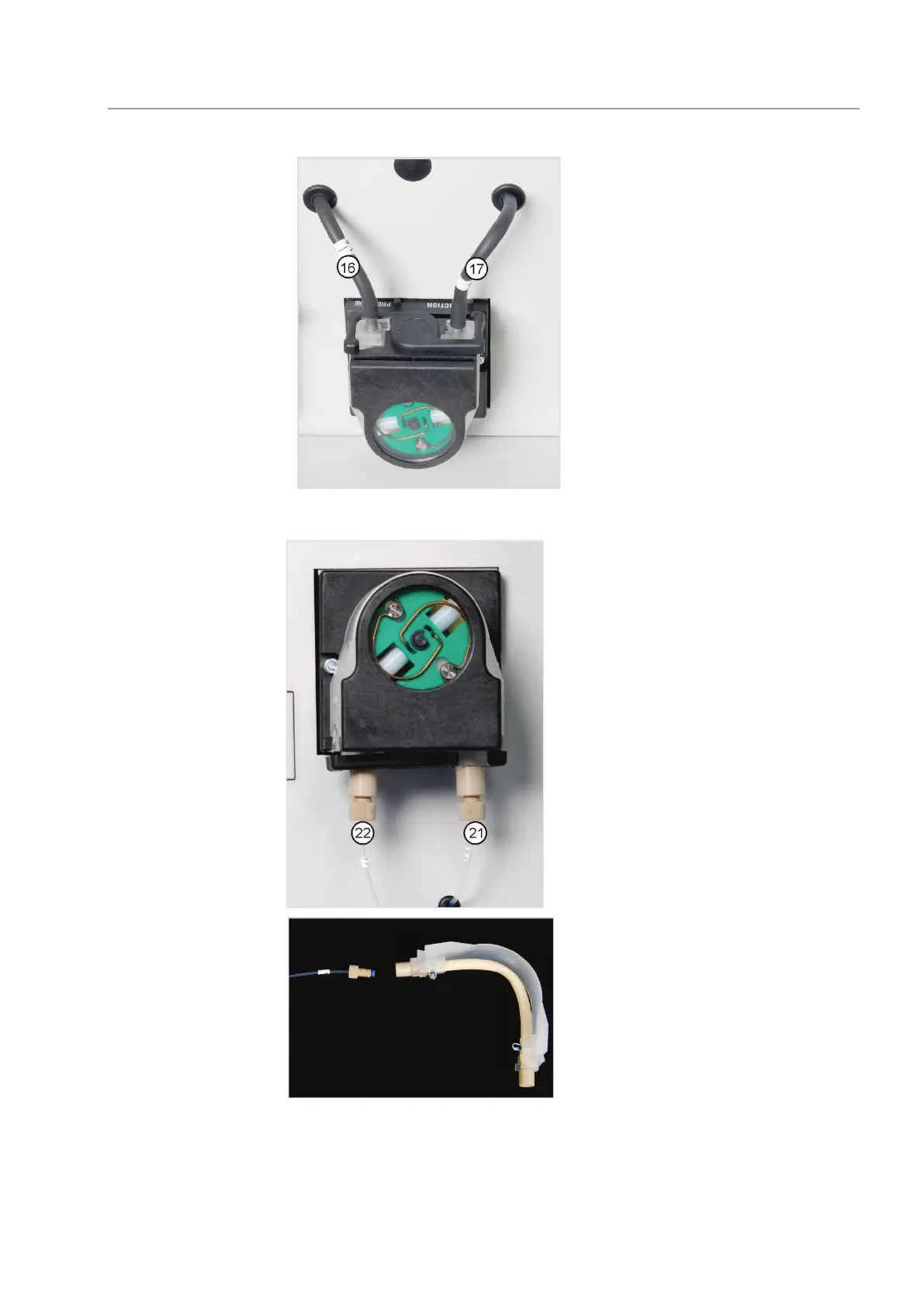

9. Position the conveyor belt
around the pump body.
10.
Press the conveyor belt upwards
with one hand and rotate the
bracket with the other hand to
the right until it engages.
11.
Push hoses 16 and 17 back onto
their adapters.
12. Check the system for leaks (see page 186).
Remove the pump hose analog to the
removal for the condensate
pump and
inspect it for leaks.
Hoses no. 22 and 21 are connected to the
pump using Fingertight connections.
Unscrew the connections from the
connectors during removal and tighten them
again after installing the pump hose.
Phosphoric acid pump
