Electrical connection Proline Prowirl F 200 PROFIBUS PA
36 Endress+Hauser
1. Mount the transmitter and sensor.
2. Connect the connecting cable.
3. Connect the transmitter.
The way the transmitter wall holder is connected depends on the measuring device
approval and the version of the connecting cable used.
Connection is only possible via terminals:
• For approvals Ex n, Ex tb and cCSAus Div. 1
• If a reinforced connecting cable is used
The connection is via an M12 connector:
• For all other approvals
• If the standard connecting cable is used
Connection to the connection housing of the sensor is always via the terminals
(tightening torque for terminals: 1.2 to 1.7 Nm).

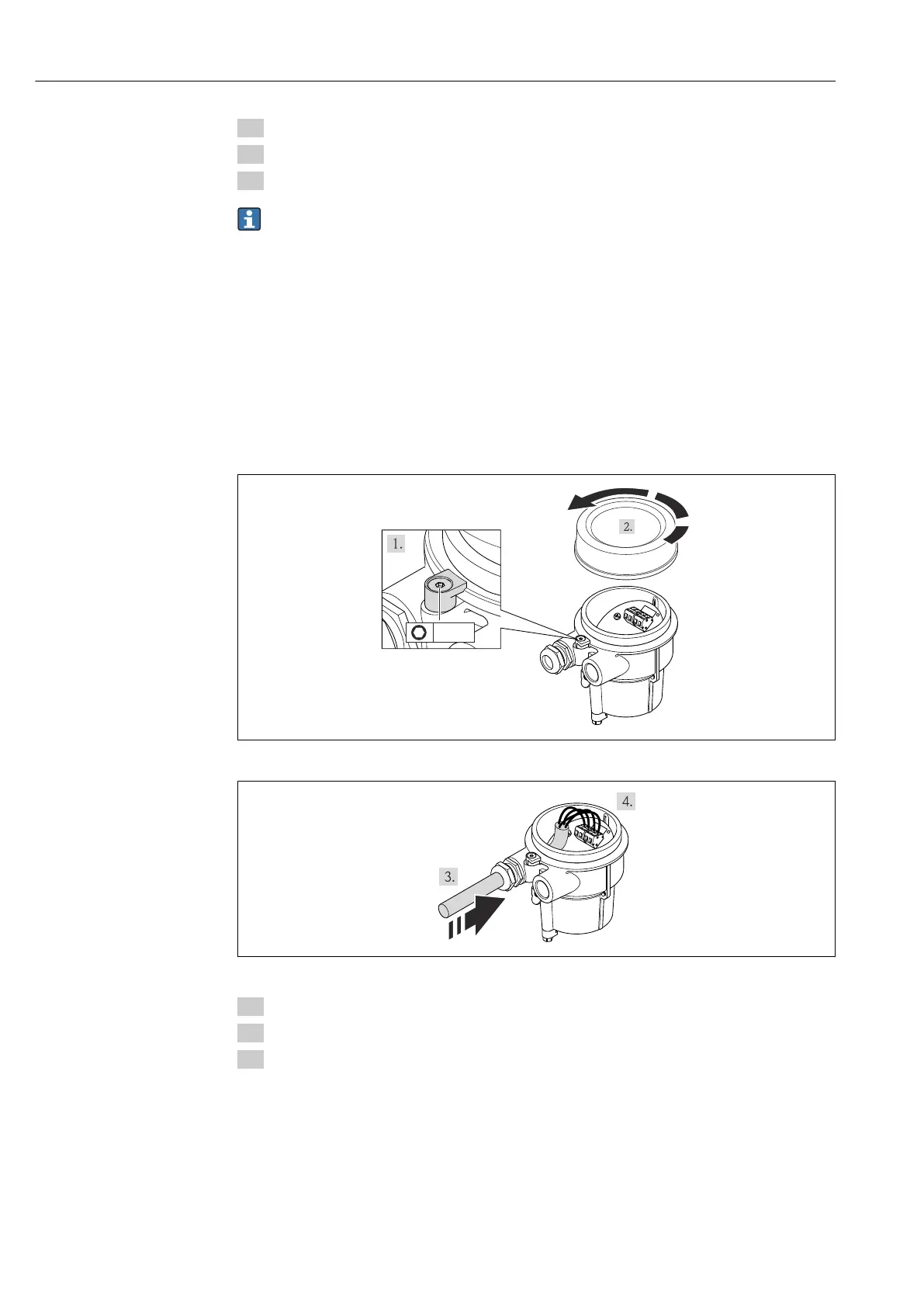

Connecting the sensor connection housing
3 mm
A0020410
A0020411
1. Loosen the securing clamp.
2. Unscrew the housing cover.
3. Guide the connecting cable through the cable entry and into the connection housing
(if using a connecting cable without an M12 device plug, use the shorter stripped end
of the connecting cable).
