Proline Prowirl F 200 PROFIBUS PA Electrical connection
Endress+Hauser 37
4. NOTICE
Terminals tightened with an incorrect tightening torque.
Incorrect connection or damaged terminal.
‣
Tighten the terminals with a tightening torque in the 1.2 to 1.7 Nm range.
Wire the connecting cable:
Terminal 1 = brown cable
Terminal 2 = white cable
Terminal 3 = yellow cable
Terminal 4 = green cable
5. Connect the cable shield via the cable strain relief.
6. Reverse the removal procedure to reassemble the transmitter.

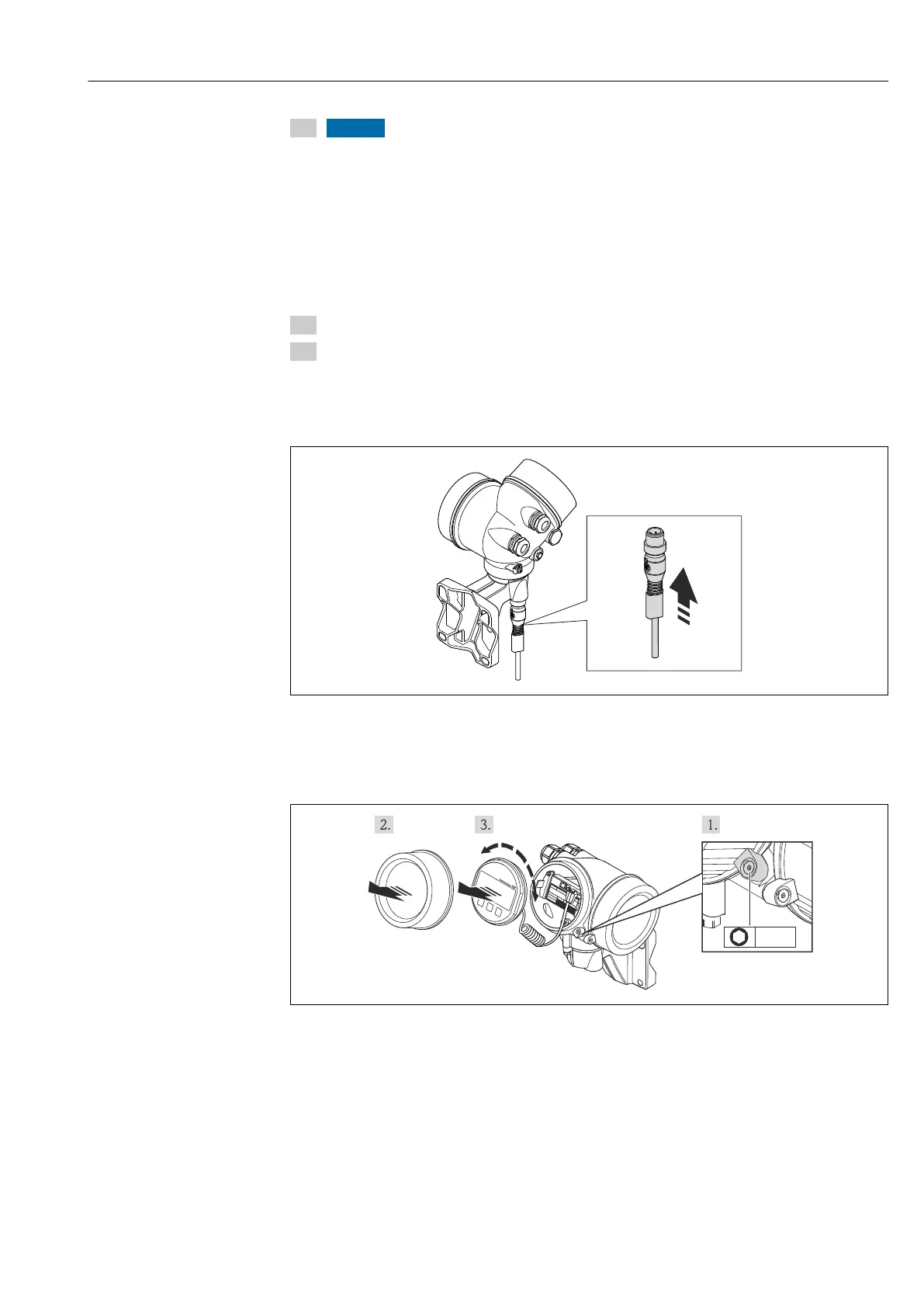

Connection to the wall holder of the transmitter
Connecting the transmitter via plug
A0020412
‣
Connect the plug.
Connecting the transmitter via terminals
A0020404
