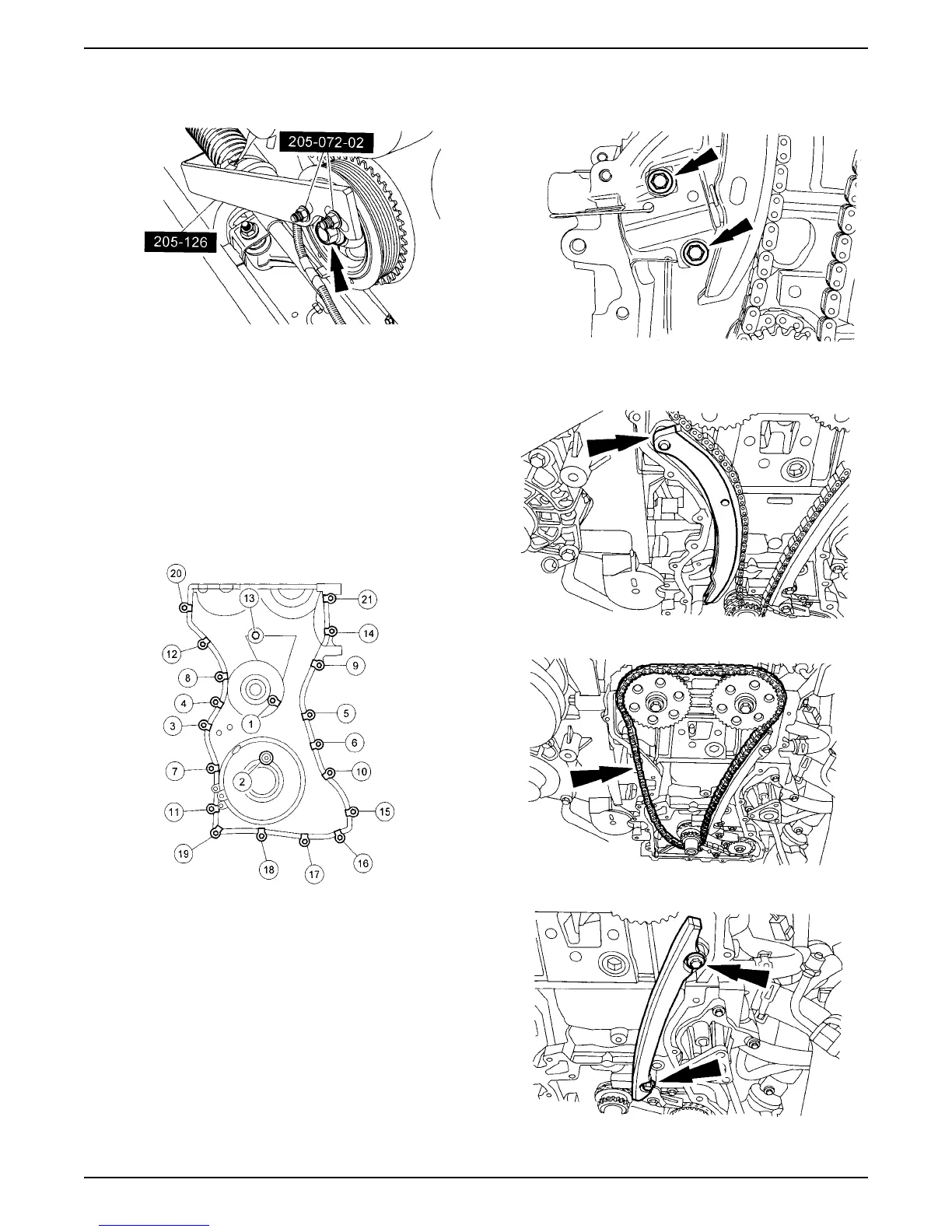

24.Install special tools 205-126 & 205-072-02.
CAUTION: Failure to hold the crankshaft pulley in
place during bolt loosening can cause damage to
the engine.
25.Using the special tools, remove bolt, washer and
crankshaft pulley. Discard the bolt.
CAUTION: There is one front cover bolt behind the
cooling fan drive pulley.
26.Remove bolt behind cooling fan drive pulley through
one of access holes.
27.Remove all front cover bolts and front cover.
28.Compress the timing chain tensioner and insert a
paper clip into the hole.
29.Remove 2 bolts and tensioner.
30.Remove right timing chain guide.
31.Remove timing chain.
32.Remove 2 bolts and left timing chain guide.
