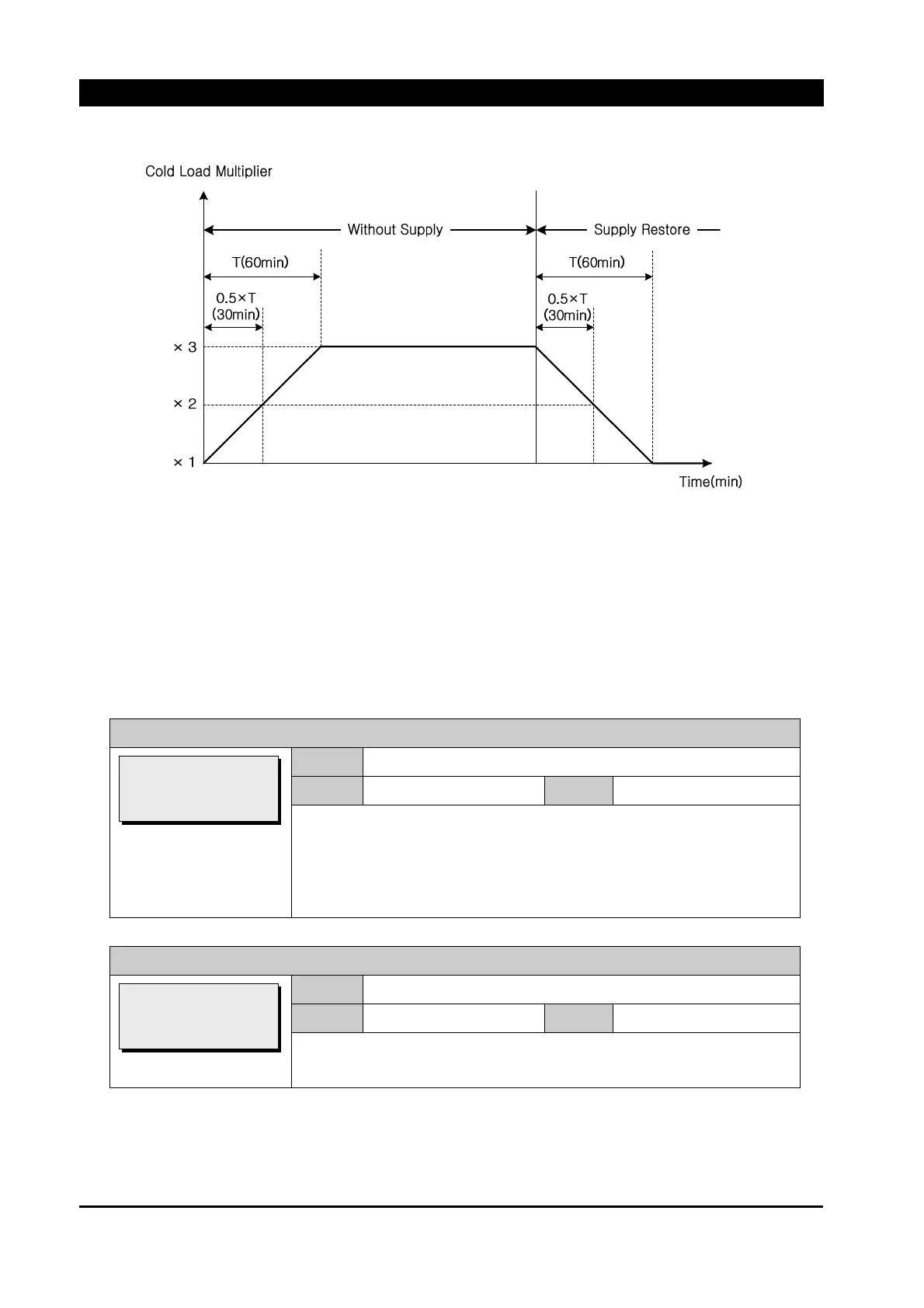

Figure 7-6. Cold Load Multipilier
7.12.3. Cold Load Pickup Setup
The Cold Load Pickup feature in the following settings should be enabled.
CLPU COMMON Setup
PRIMARY SETTING / PROTECTION / COLD LOAD PICKUP / CLPU-COMMON/ Function
Range
OFF, TRIP, TR&AR
Default
TRIP
Step
~
If function = OFF, the feature is not operational.
If function = Trip, the feature is operational.
If function = Trip & AR, the feature is operational. When the feature
asserts a TRIP & AR condition, it trips and alarms.
PRIMARY SETTING / PROTECTION / COLD LOAD PICKUP / CLPU-COMMON/ Relays
Range
OFF, 0 ~ 8
Default
OFF
Step
1
Selects the relays required to operate when the feature generates a Trip.
[CLPU-COMMON]
Function: TRIP
>Relays(0-8): OFF
Make use ‘I’: NO
[CLPU-COMMON]
>Function: TRIP
Relays(0-8): OFF
Make use ‘I’: NO
To Next Page
