C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-66 Rev.1

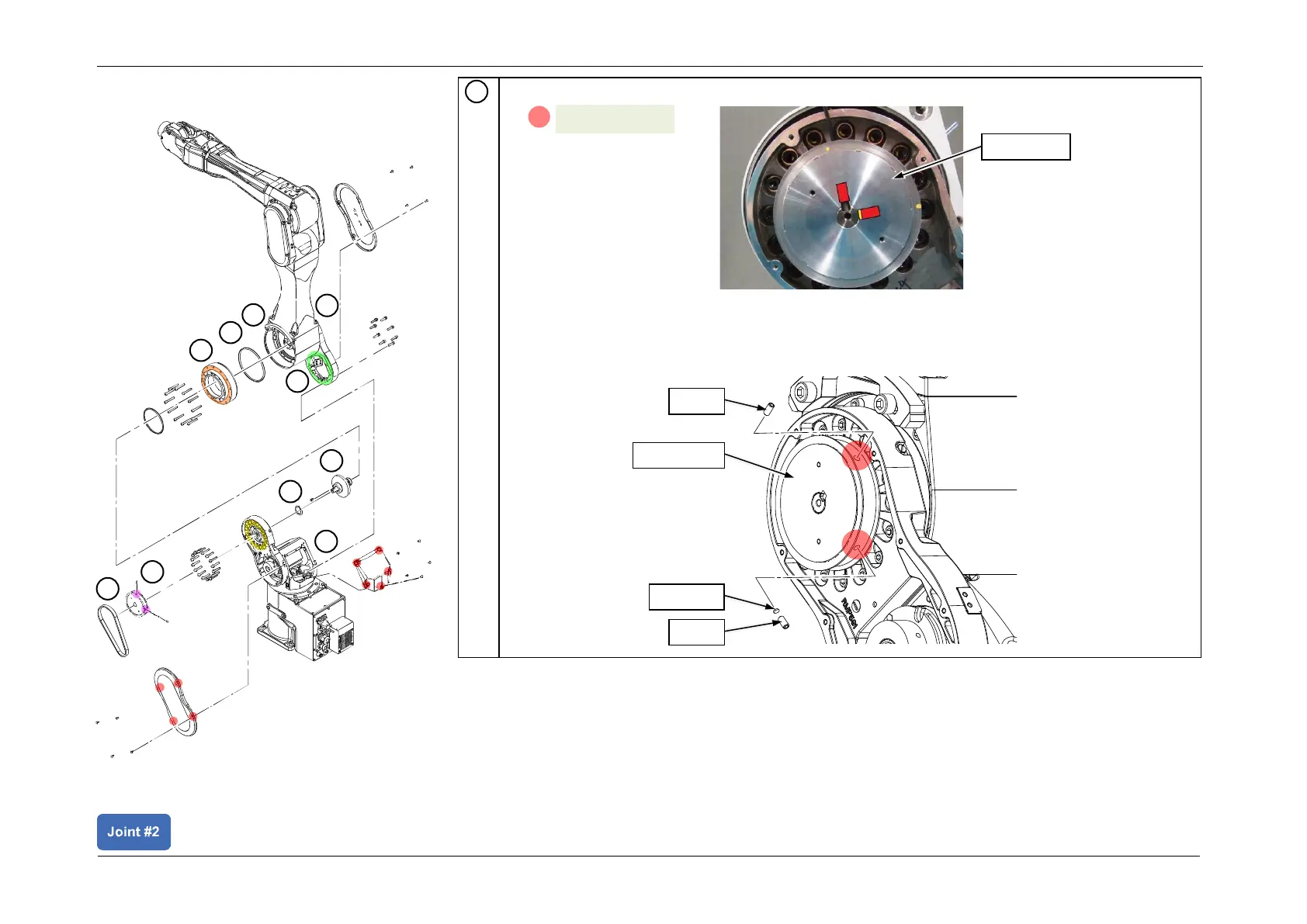

Remove the J2 pulley 2.
CAUTION
• A brass bushing is included on one of the set screws. When removing the pulley, be
careful not to drop and lose the bushing.
6
Bushing
Screw
Screw
Pulley 2
A
S05: 2-M5x10
Pulley 2
2
4
6
7
5
8
9
10
11
12
Removing the Reduction Gear
