C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-67 Rev.1
• <C8XL/C12XL only>

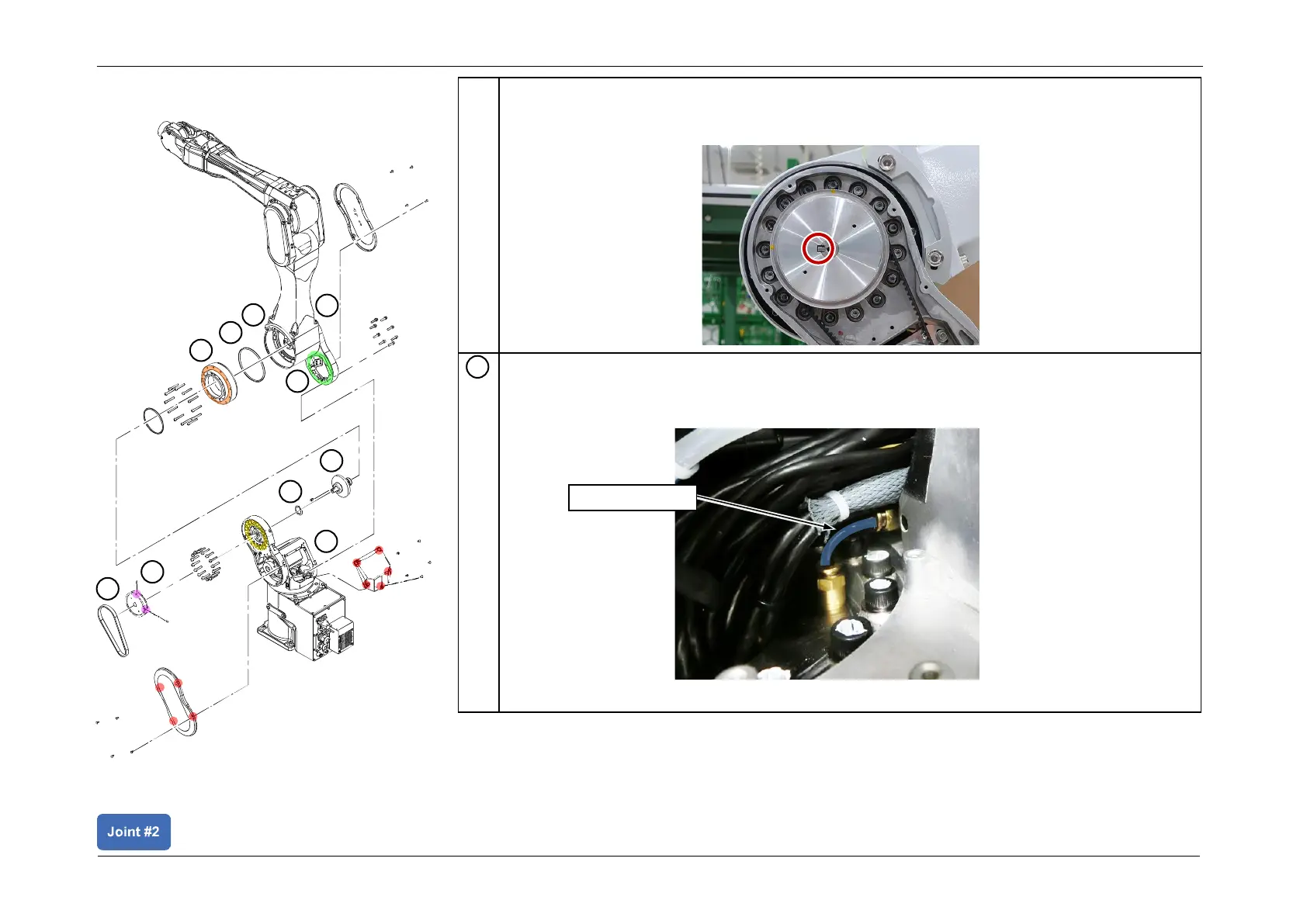

Remove the key from the shaft. The key will be used again during installation, so be
careful not to lose it when performing the work.
Remove the grease tube on the Arm1 side from the fitting.
POINT
The grease tube connects the base and Arm1.
7
Grease tube
2
4
6
7
5
8
9
10
11
12
Removing the Reduction Gear
