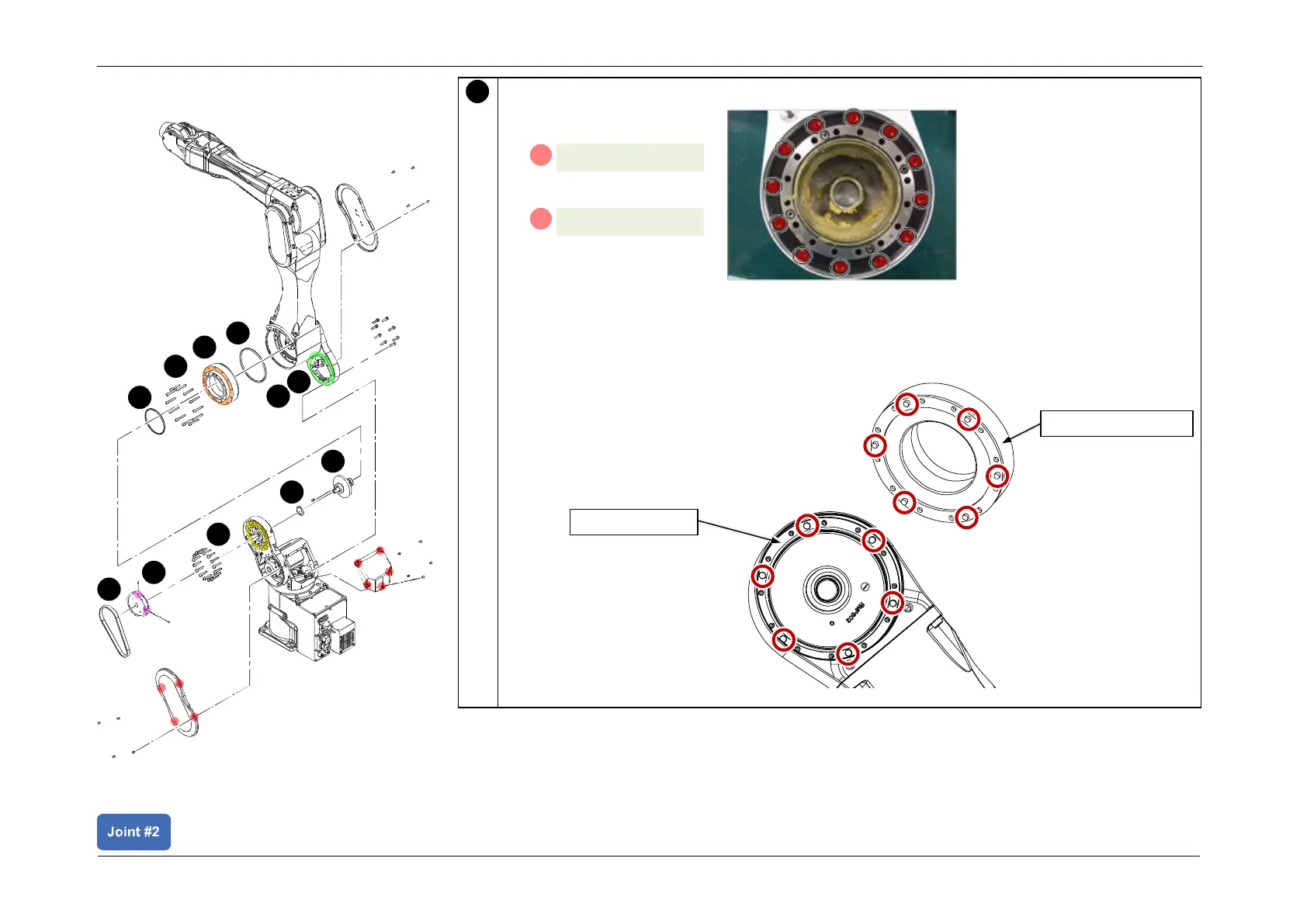

Set the Reduction Gear Unit on Arm2, then secure the fixing bolts temporarily.
POINT
Align the six bolt heads on the bottom of the J2 Reduction Gear Unit with the indentations
on Arm2, and set the Reduction Gear Unit on the arm.
2
Reduction Gear Unit
Arm2
S02: 12-M5x40
A
C8L:
C8XL/C12XL:
A
S02: 12-M6x45
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
