C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-74 Rev.1

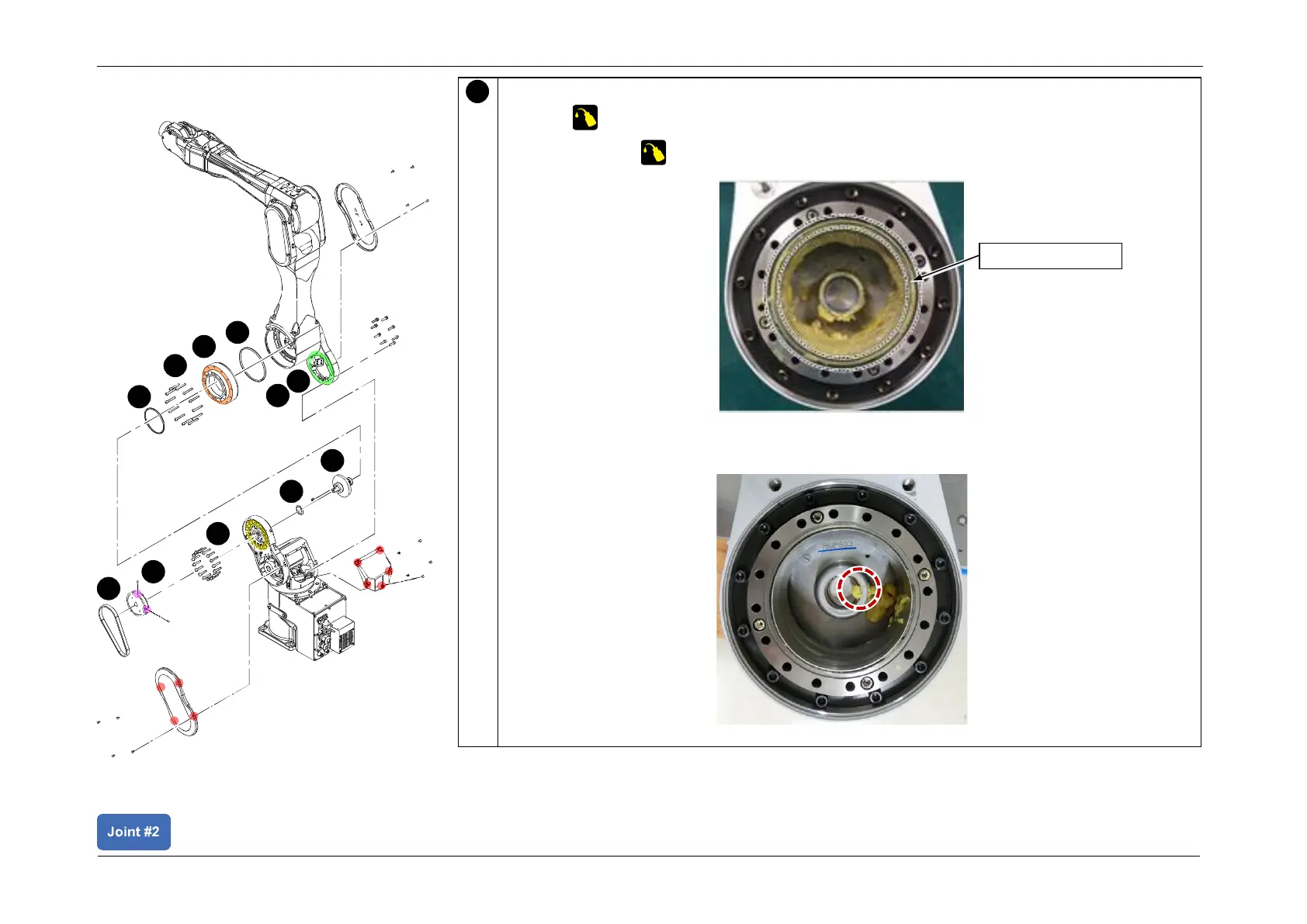

Apply grease to the inside of the reduction gear flexspline as shown in the figure.
• C8L: SK-1A: 55 g
• C8XL/C12XL: SK-1A: 102 g
CAUTION
If grease is on the areas shown in the figure, wipe off the grease.
3
Flexspline
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
