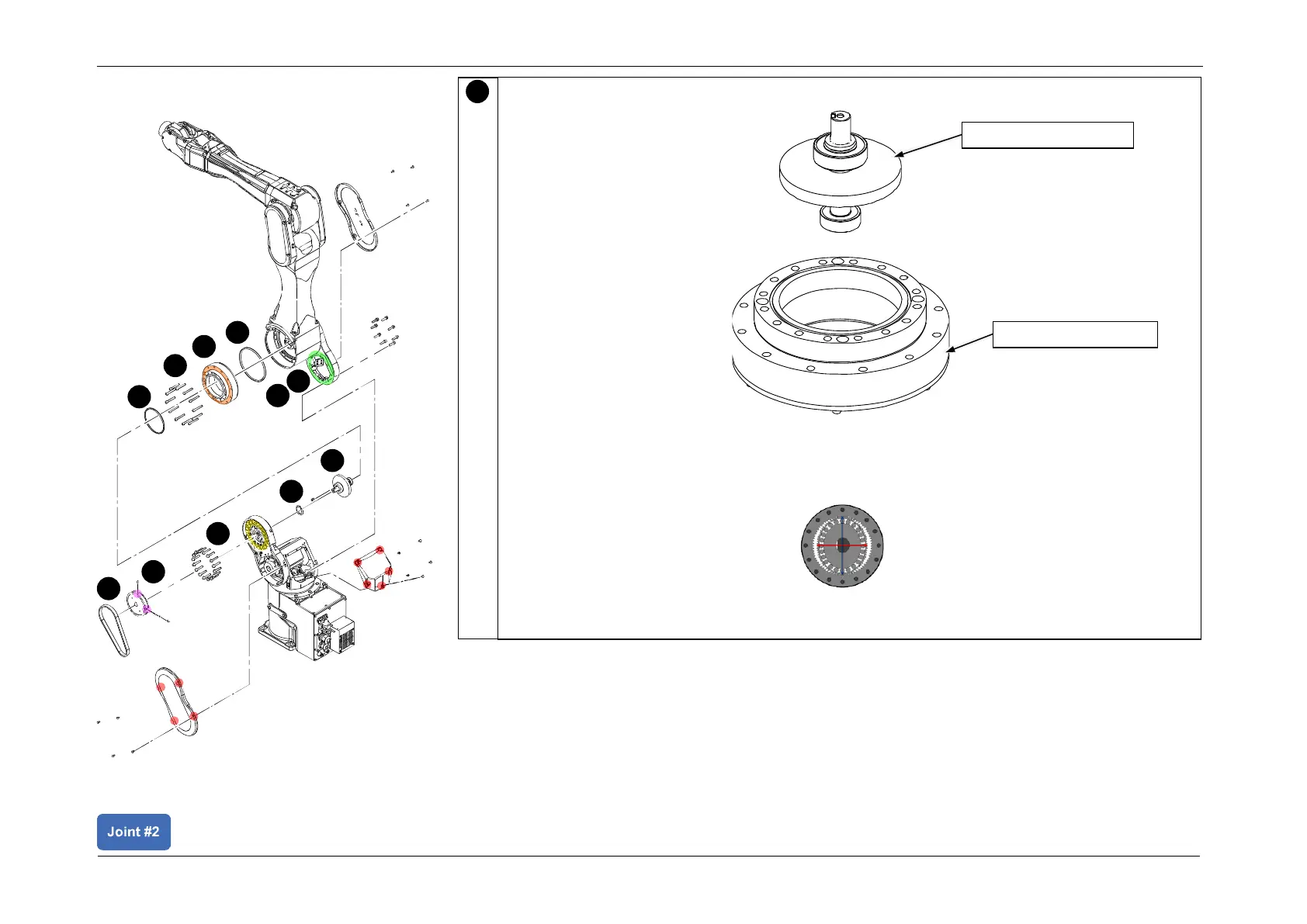

Install the Wave Generator unit.
POINT
Install so that the longside of the Flexspline and the Wave Generator match.
4
Shortside
Longside
Reduction
Gear
Reduction Gear Unit
Wave Generator unit
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
