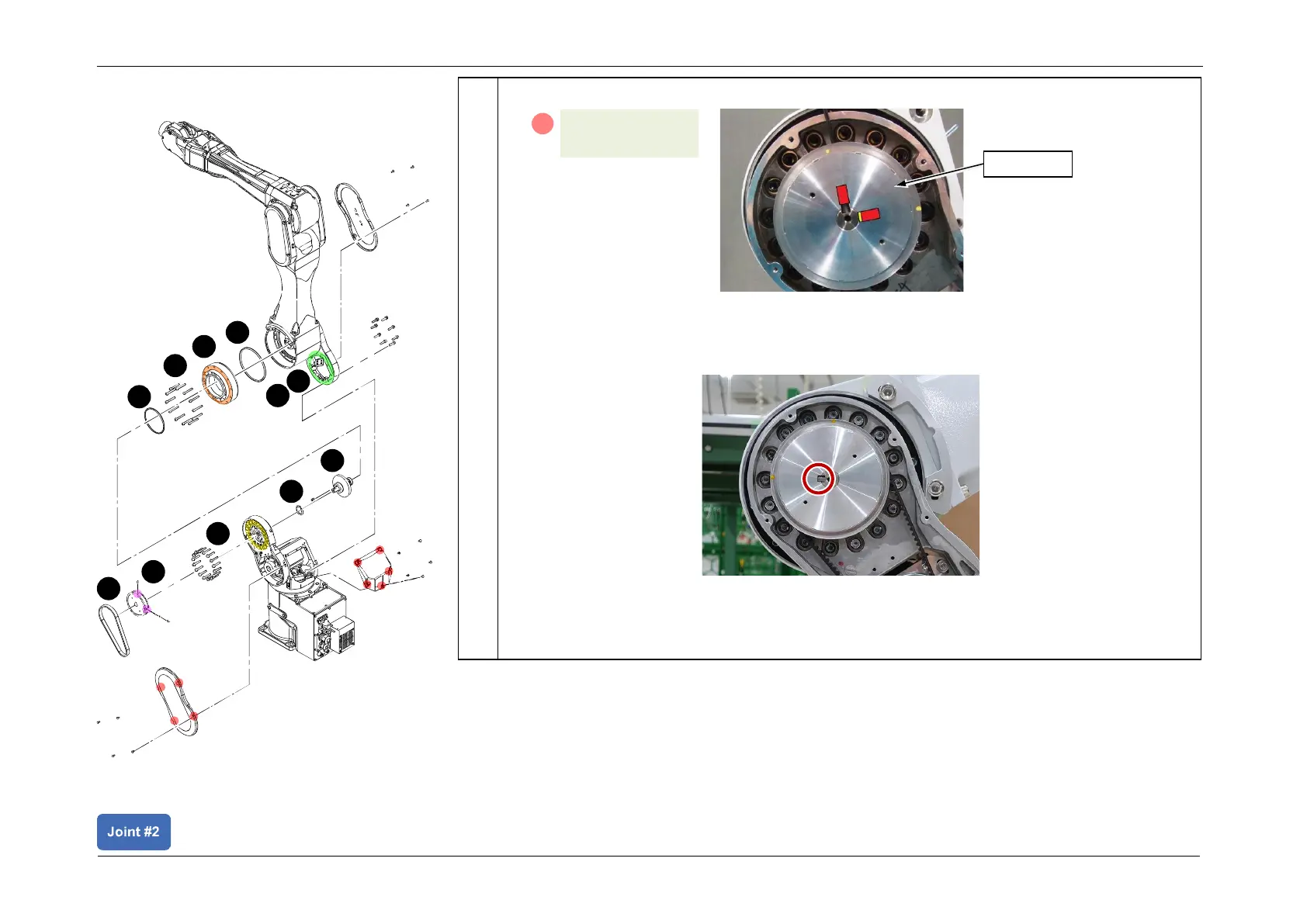

2. Install the J2 pulley 2.
POINT
<For C8XL/C12XL>
Set the key in the shaft and insert the J2 pulley 2 while aligning with the key groove.
CAUTION
If the screw positions are incorrect or the bushing is not set, this may cause damage on
the side, and may result in the part being unable to be removed.
S05: 2-M5x10
(4.0 +/- 0.2 N⋅m)
A
Pulley 2
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
