C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-81 Rev.1

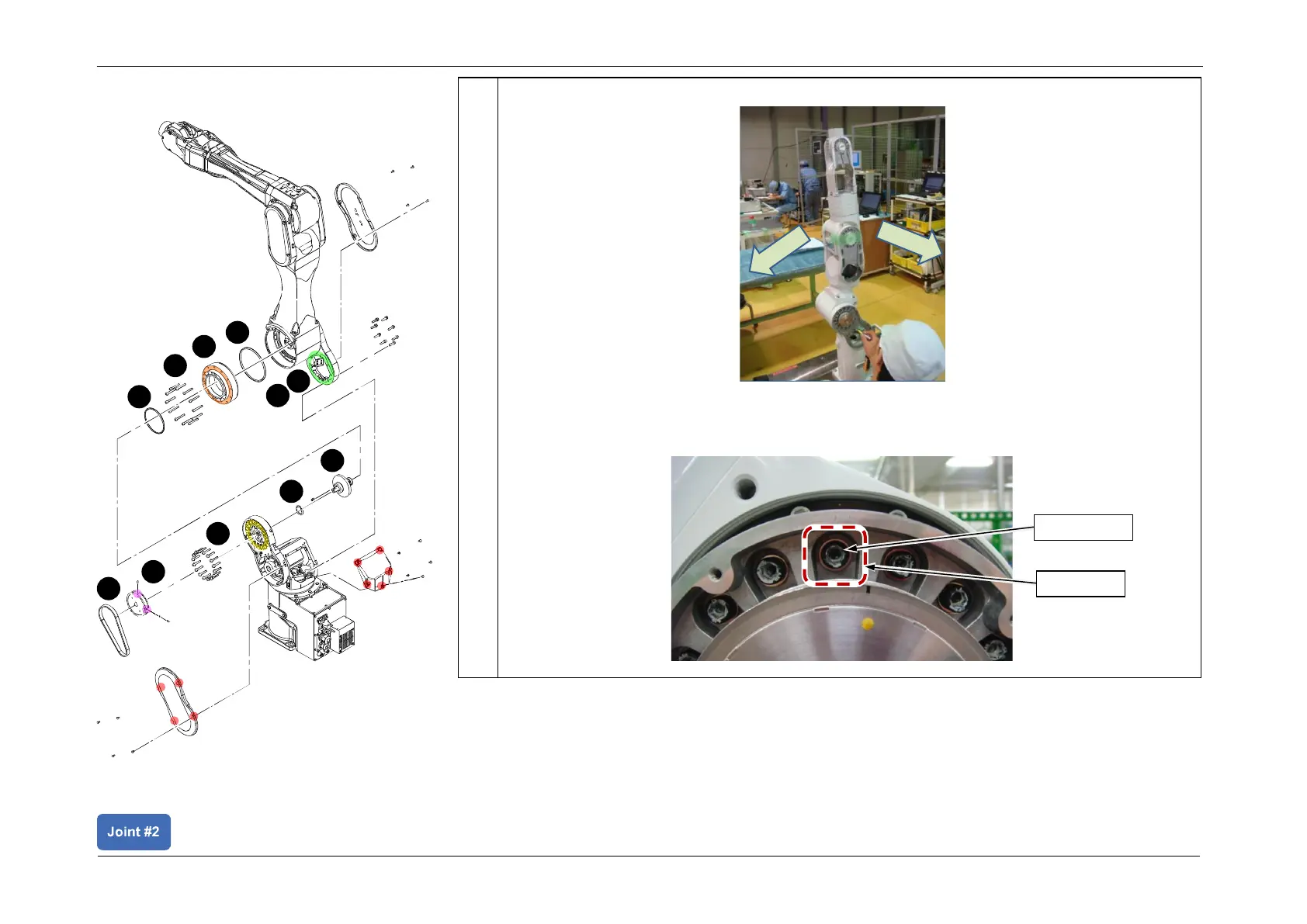

3. Manually move Arm2 back and forth 30°.
POINT
Adjust so that the fixing screws are centered in the clearance as shown in the figure.
Fixing screw
Clearance
Installing the Reduction Gear
10
12
9
8
7
2
4
1
5
6
9
