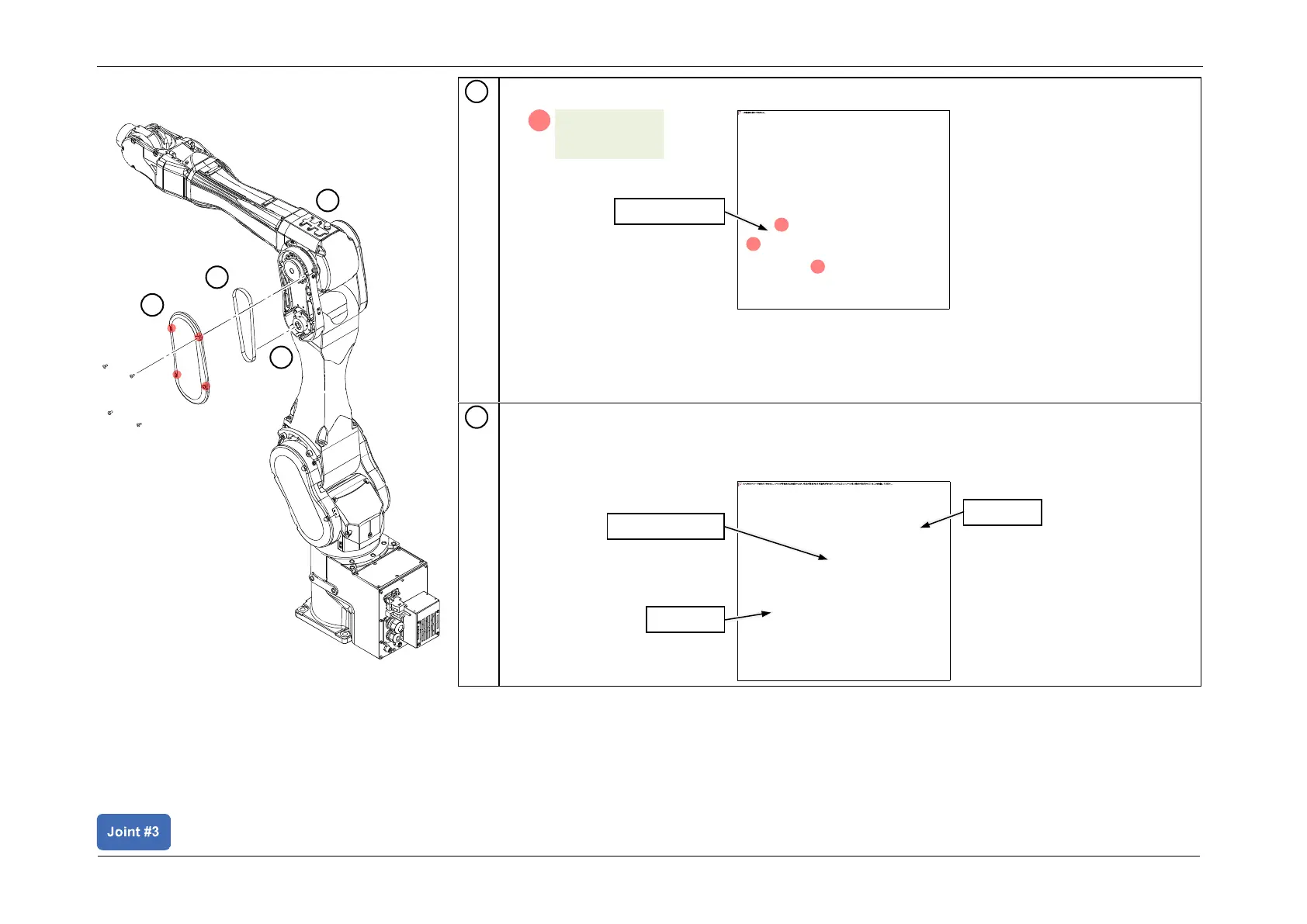

Loosen the screws securing the J3 Motor unit.
WARNING
Loosening the screws while Arm3 is not tilted will result in the belt coming off and Arm3
falling, which is very dangerous. Prior to loosening the J3 Motor unit screws, ensure that
Arm3 is tilted.
Remove the J3 Timing Belt.
POINT
Remove the Timing Belt from pulley 1 and pulley 2.
5
A
S01: 3-M4x20
and washer
J3 Motor unit
6
Pulley 2
Pulley 1
J3 Timing Belt
4
2
6
Removing the Timing Belt
5
