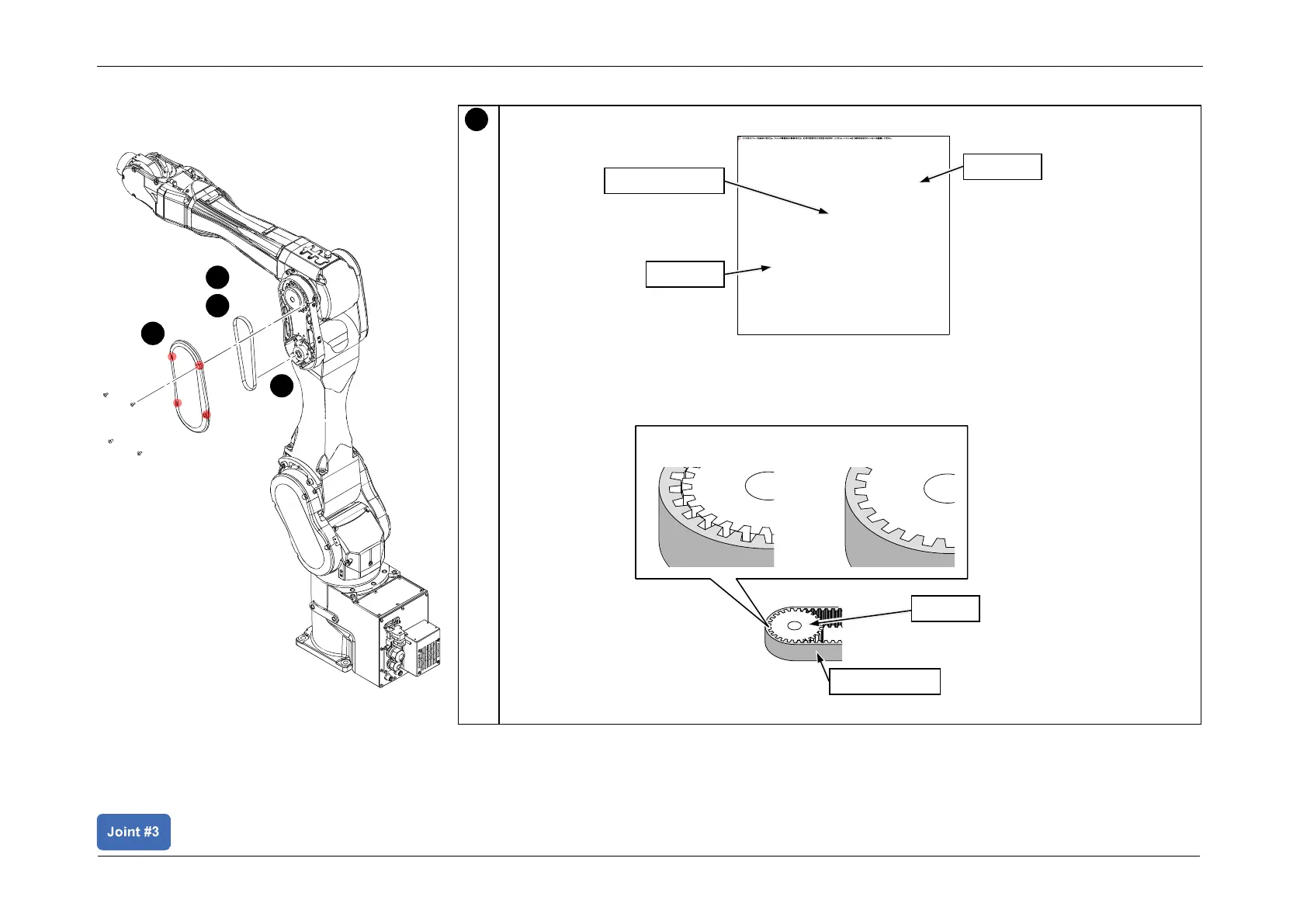

Installing the Timing Belt
Install the J3 Timing Belt.
POINT
• First place the belt on pulley 2.
• Make sure that the teeth of the Timing Belt and the pulley are properly engaged.
1
Wrong
Correct
Pulley
Timing Belt
Pulley 2
Pulley 1
J3 Timing Belt
4
1
3
2
