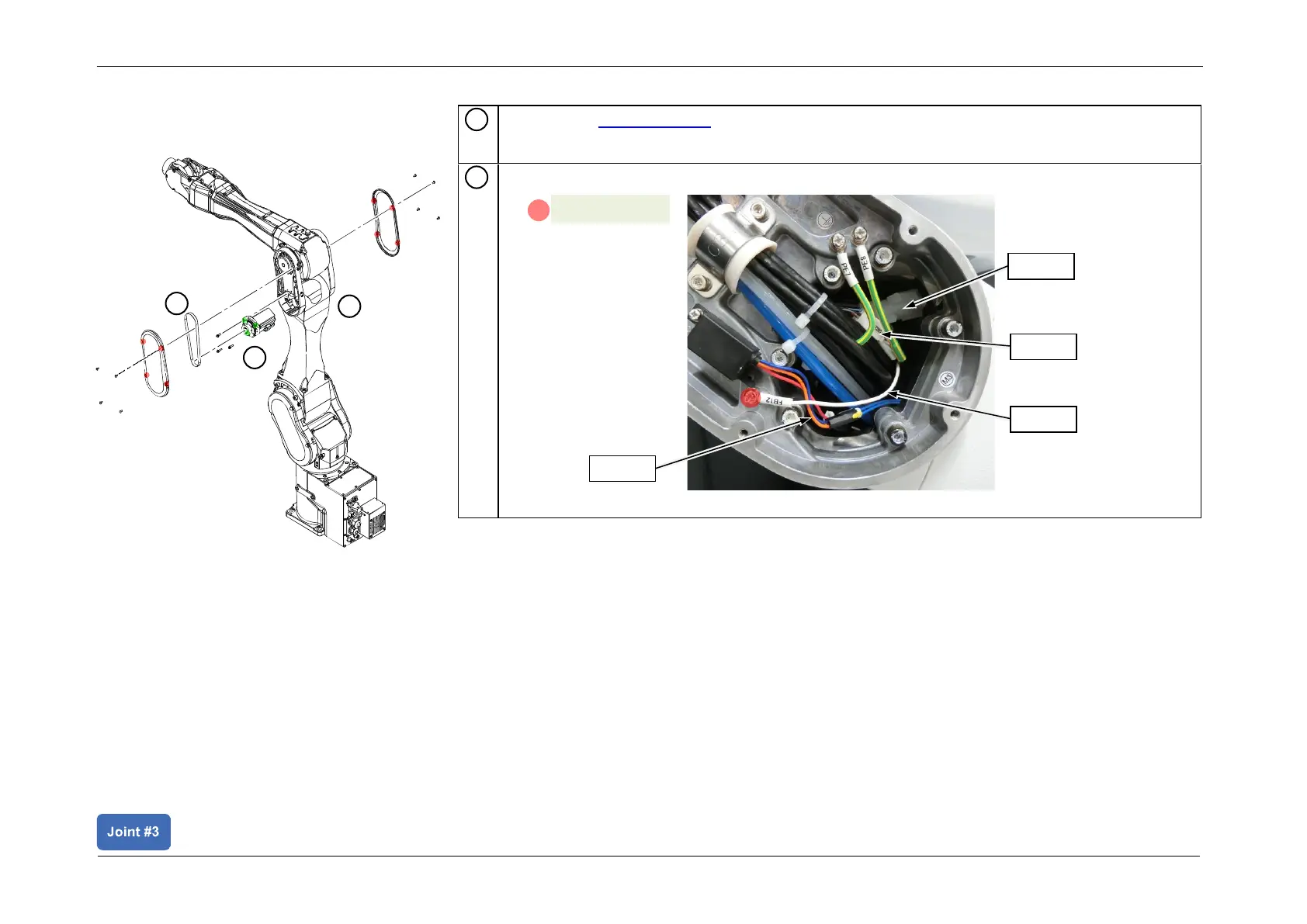

Removing the Motor Unit
Remove the J3 Timing Belt.
Disconnect the J3 Motor Connectors (CN131, CN331, CN430) and Ground Wire (FB12).
1
2
CN131
CN331
CN430
A
S04: 1-M4x6
FB12
1
2
3
