Epson C8-B - Page 138

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-96 Rev.1

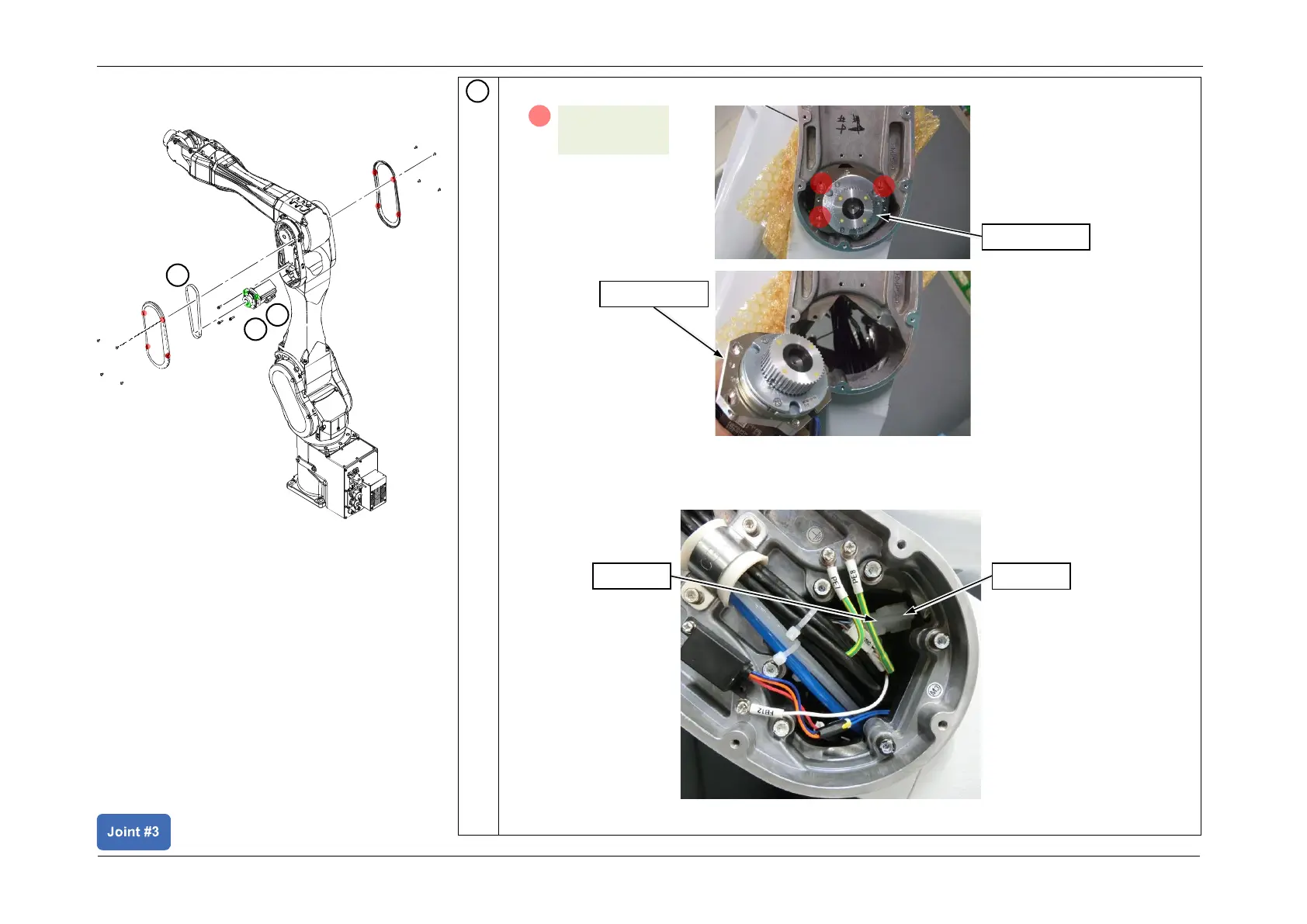

Remove the loosened screws, then remove the J3 Motor unit.
CAUTION
When pulling off the motor unit, the CN131-2 connector clip may catch on the arm and be
damaged, or the CN131-1 cable may be pulled inside the arm. Take care during work.
3
CN131-2
CN131-1
J3 Motor unit
J3 Motor unit
A
S01: 3-M4x20
and washer
1
2
3
Removing the Motor Unit
