C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-97 Rev.1

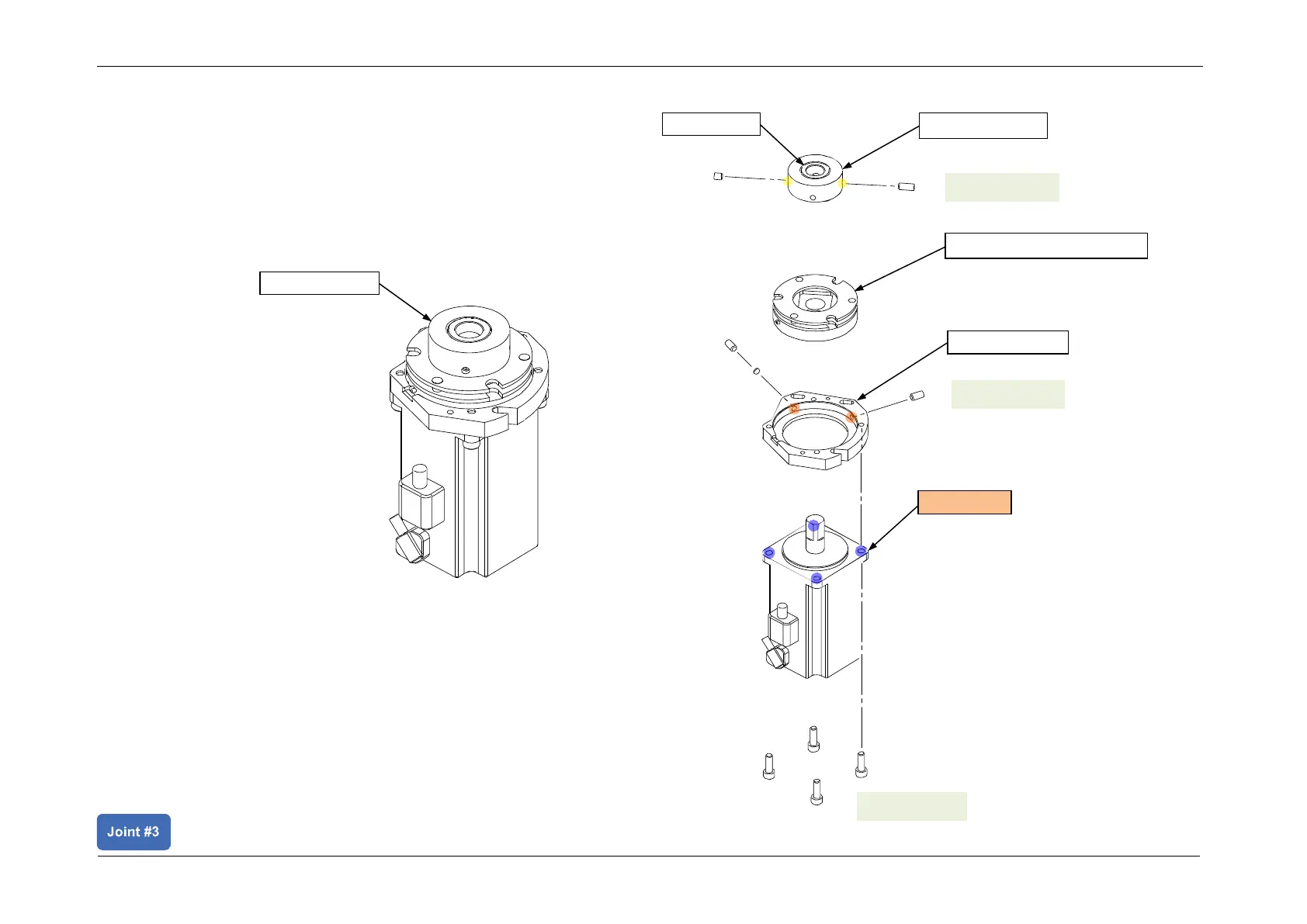

Motor Unit Disassembly
S01: 4-M5x15
Motor Pulley
S05: 2-M5x12
J3 electromagnetic brake
Motor Plate
J3 Motor unit
J3 Motor
S05: 2-M5x10
Brake Hub
