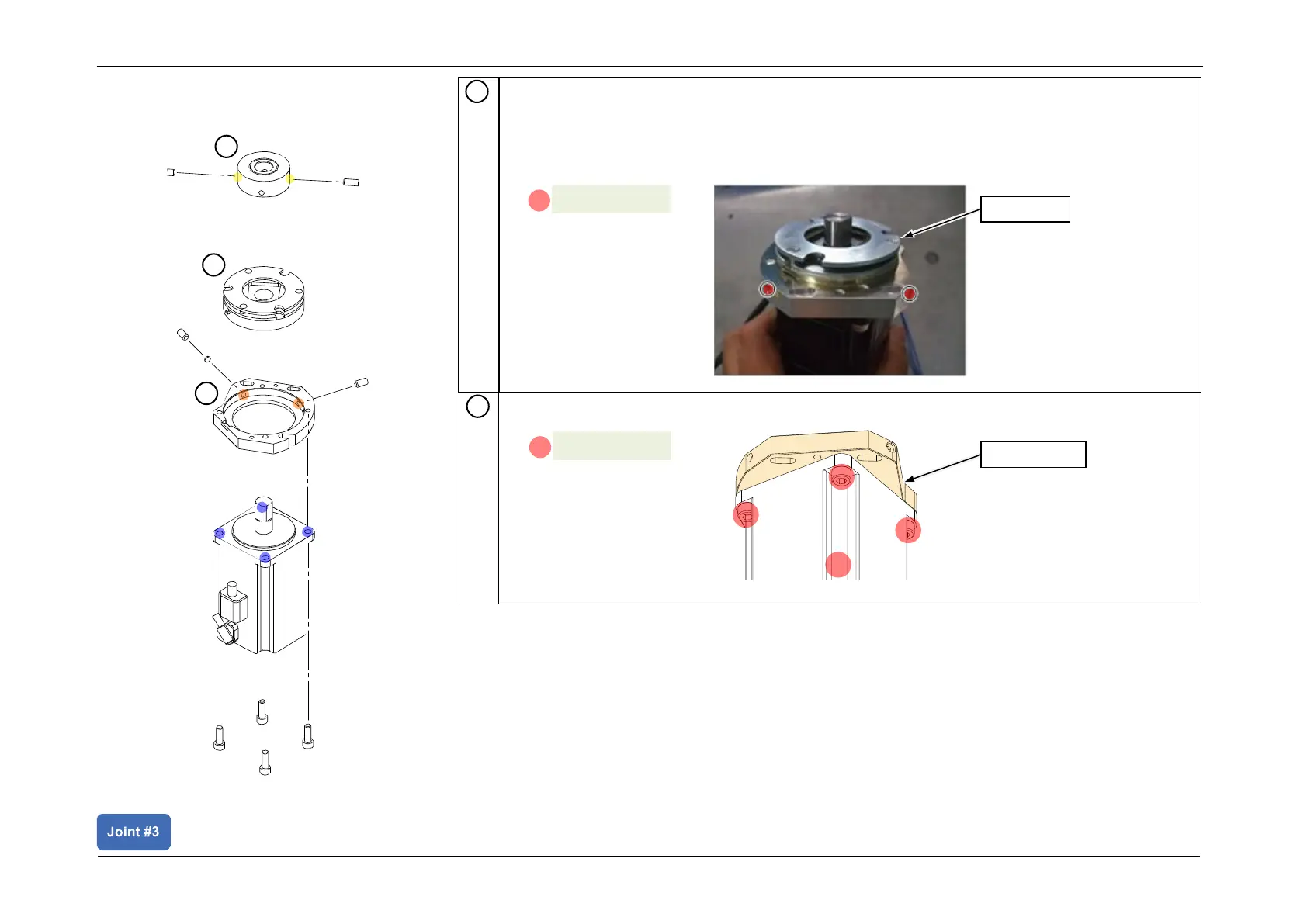

Remove the J3 brake.
CAUTION
A brass bushing is included on one of the set screws. Be careful not to lose it when
performing the work.
Remove the Motor Plate.
3
A
S05: 2-M5x10
J3 brake
4
A
S01: 4-M5x15
Motor Plate
Motor Unit Disassembly
4
2
3
