Motor Unit Assembly

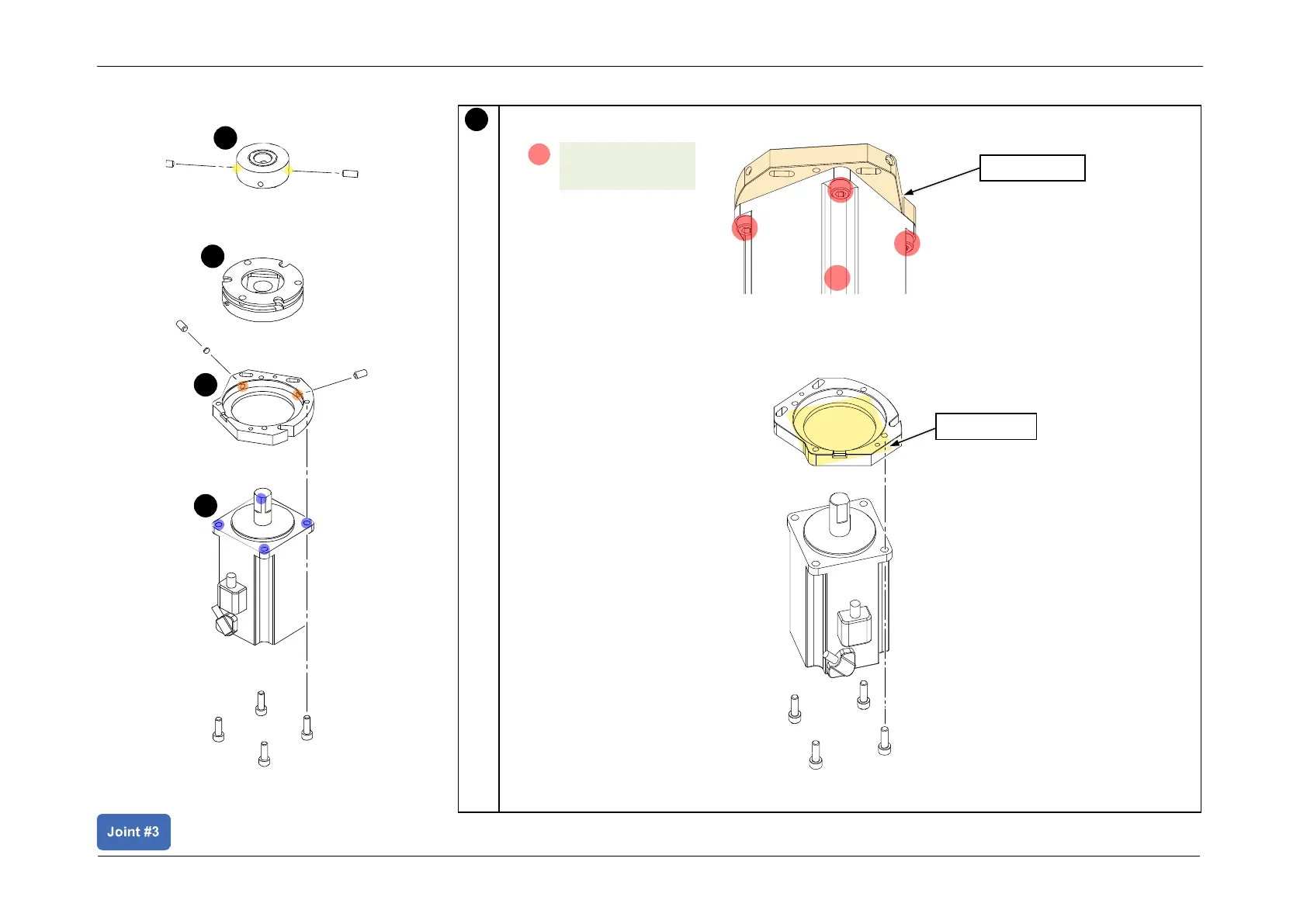

Install the Motor Plate.
POINT
Attach the Motor Plate according to the orientation shown in the figure.
1
Motor Plate
Motor Plate
A
S01: 4-M5x15
(8.0 +/- 0.4 N⋅m)
1
3
2
4
