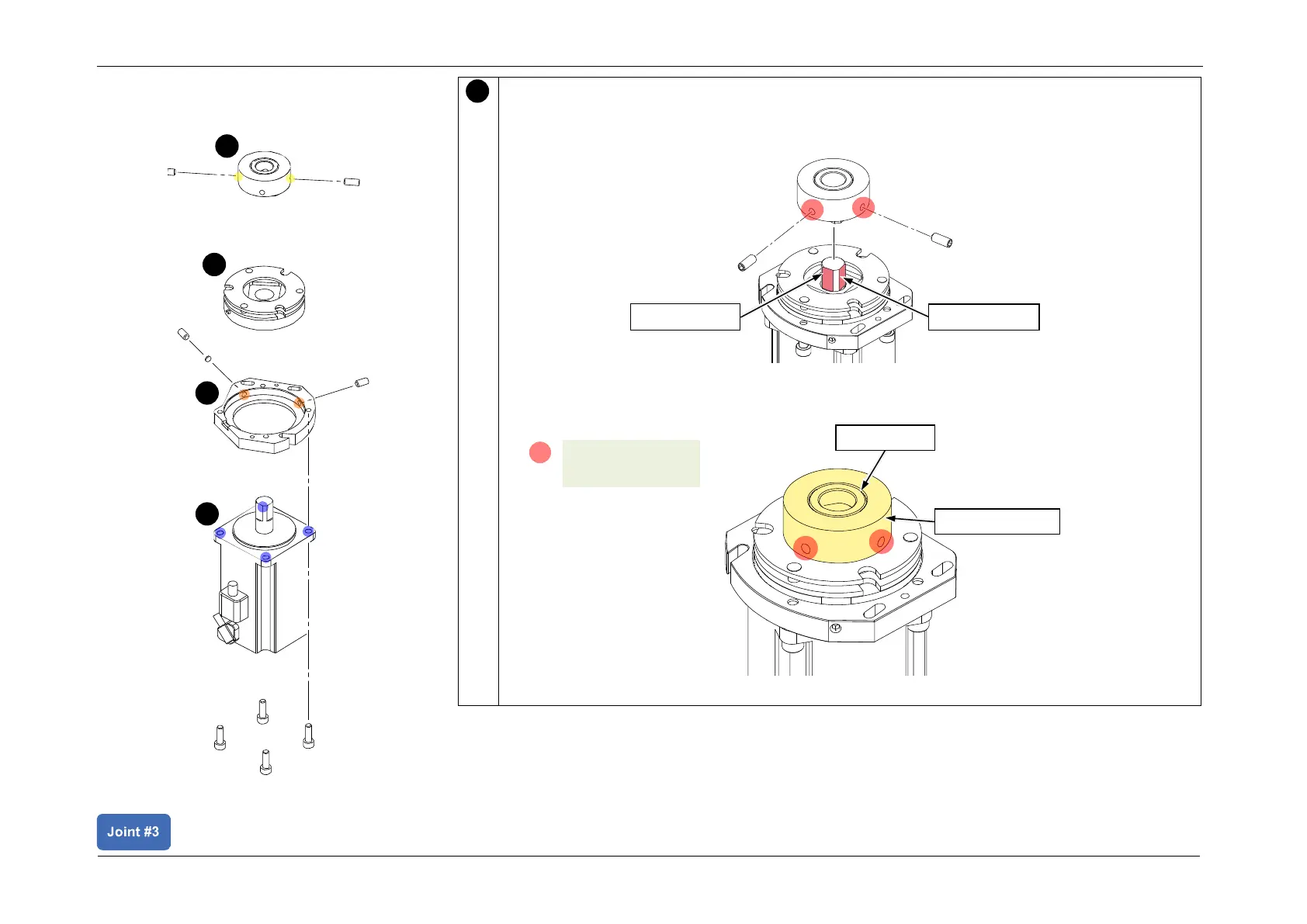

Install the Motor Pulley and Brake Hub on the J3 Motor.
1. Insert the Motor Pulley so that the set screw positions align with the motor shaft D-cut
surfaces.
2. Secure the Motor Pulley unit to the shaft.
3
Motor Pulley
Brake Hub
A
S05: 2-M5x12
(4.0 +/- 0.2 N·m)
D-cut surface
D-cut surface
Motor Unit Assembly
1
3
2
4
