C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-112 Rev.1

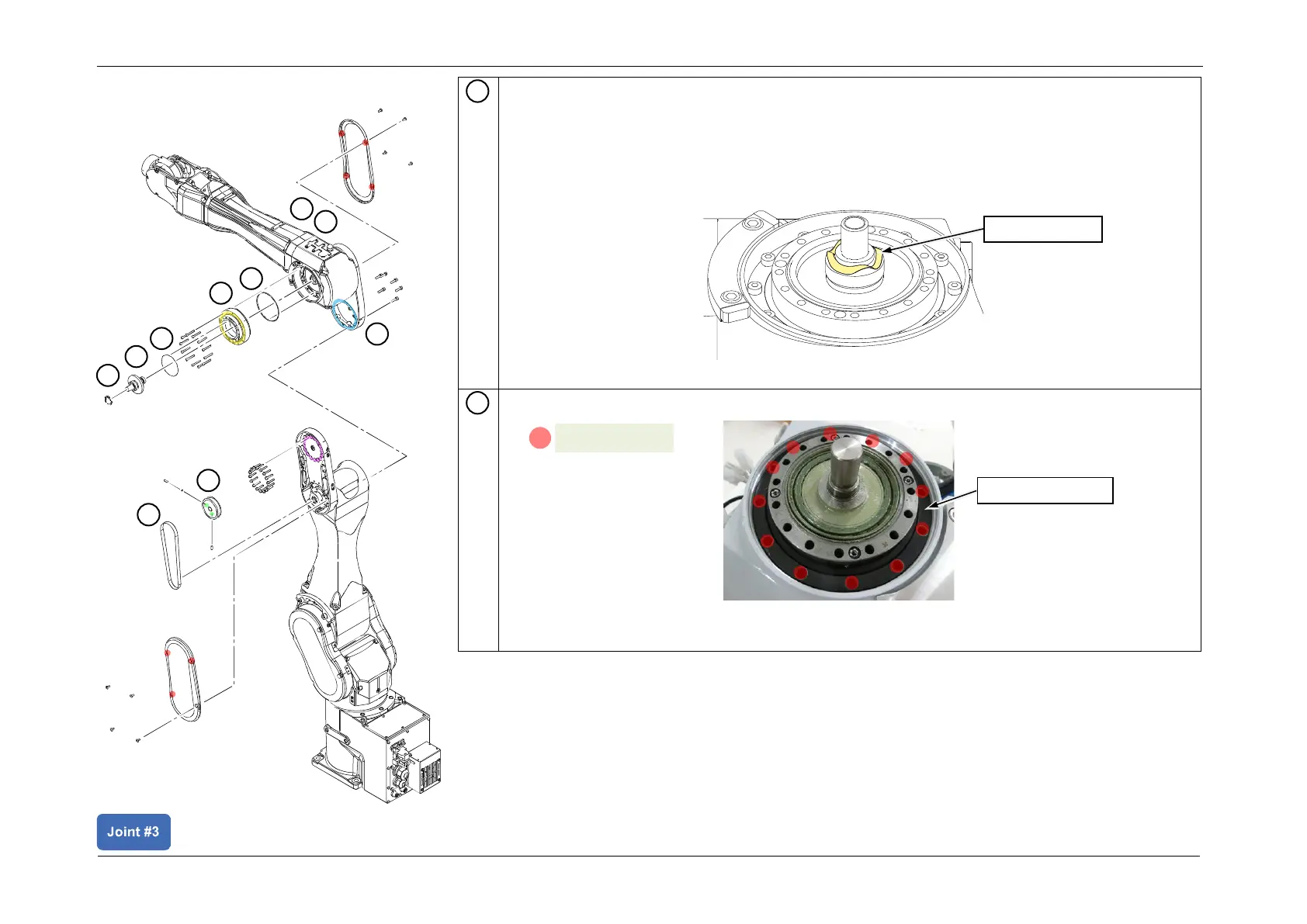

Remove the wave washer.
CAUTION
The wave washer will be used again. Be careful not to lose it when performing the work.
POINT
The part has grease applied. Perform the work while wiping off the grease.
Remove the Reduction Gear Unit with the Wave Generator unit built in.
POINT
The part has grease applied. Perform the work while wiping off the grease.
9
Wave washer
10
A
S02: 12-M4x30
Reduction Gear
7
4
5
6
2
8
9
Removing the Reduction Gear
10
11
12
