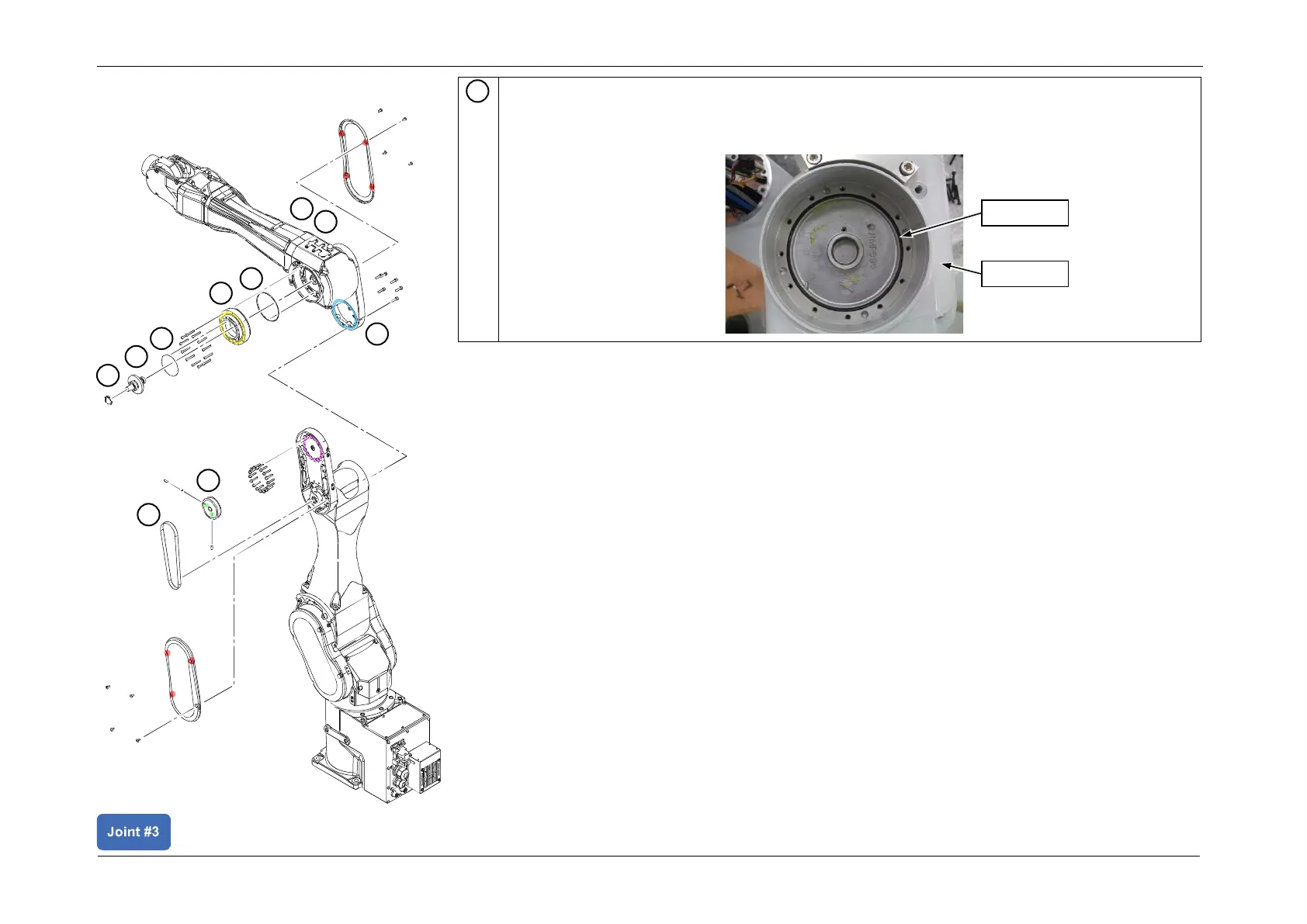

Remove the Arm3 O-ring.
POINT
The part has grease applied. Perform the work while wiping off the grease.
12
O-ring
Arm3
7
4
5
6
2
8
9
Removing the Reduction Gear
10
11
12
